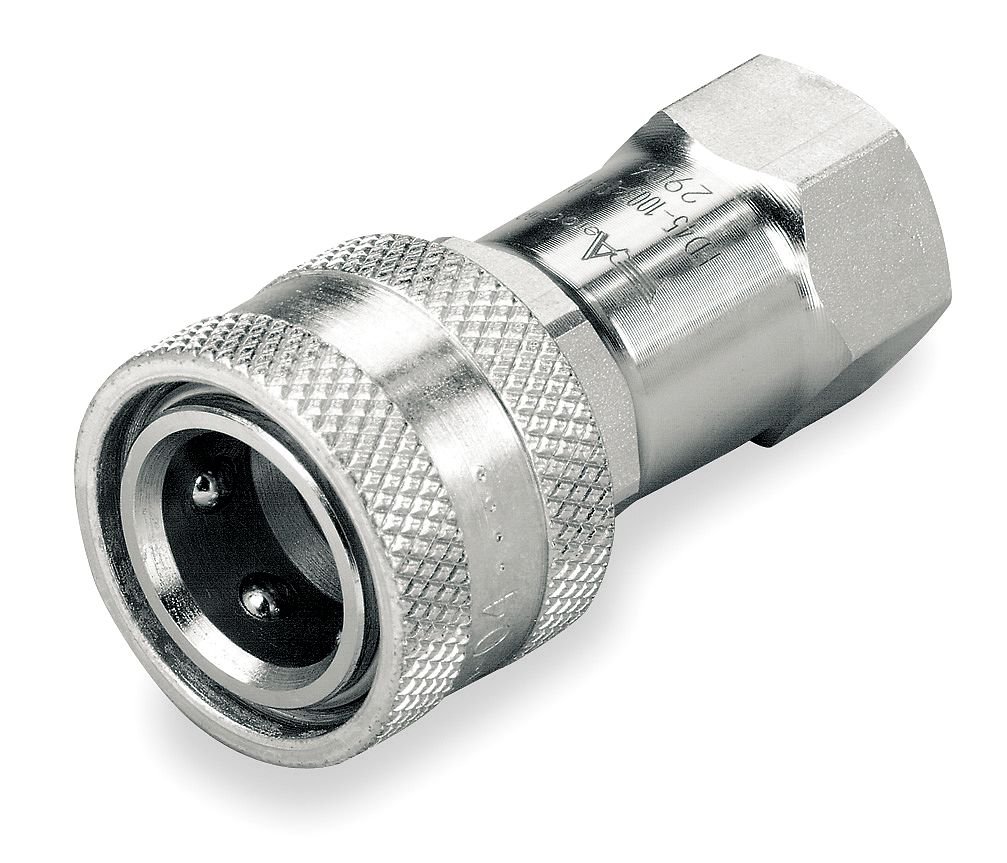

ISO B Series hydraulic quick-connect coupling bodies are the female end of coupling sets. Also called sockets, they accept coupling plugs (nipple or male ends) for hydraulics and fluid transfer. ISO B Series hydraulic quick-connect couplings are equivalent to and interchange with other ISO B Series couplings. These couplings handle both high and low pressures and the self-sealing poppet valves provide double shut-off on both female and male halves. ISO B couplings are used with high-pressure fluid transfer, cleaning equipment, and food and chemical processing. This listing is for each. Technical Specification Item Hydraulic Quick Connect Hose Coupling Coupling Component Plug Series FD45, B Body Material Steel Coupling Size 1 Hose Fitting Gender Female Max. Working Pressure @ 70 F 4000 psi Max. Flow Rate 189.27 LPM Coupling Locking Type Push-to-Connect Connection Type NPT Includes Valve Yes Valve Type Poppet Includes Bearing Yes Overall Length 4-1/32 Includes Shut Off Yes Thread Size 1/2-14 Finish/Coating Trivalent Chromium Zinc Sleeve Material Zinc Plated Steel Seal Material EPR, Nitrile Hansen Interchange 8-HP36 Parker Interchange H8-62 Safeway Interchange S105-8 Snap-Tite Interchange 72C16-16F Weatherhead Interchange FD45-1003-16-16 For Use With All Hydraulic Applications Standards ISO-7241-1 Series B Fitting Type FNPT Pull Ring Material PTFE Max. Outside Dia. 2-7/16 Maximum Vacuum 28 Hg
