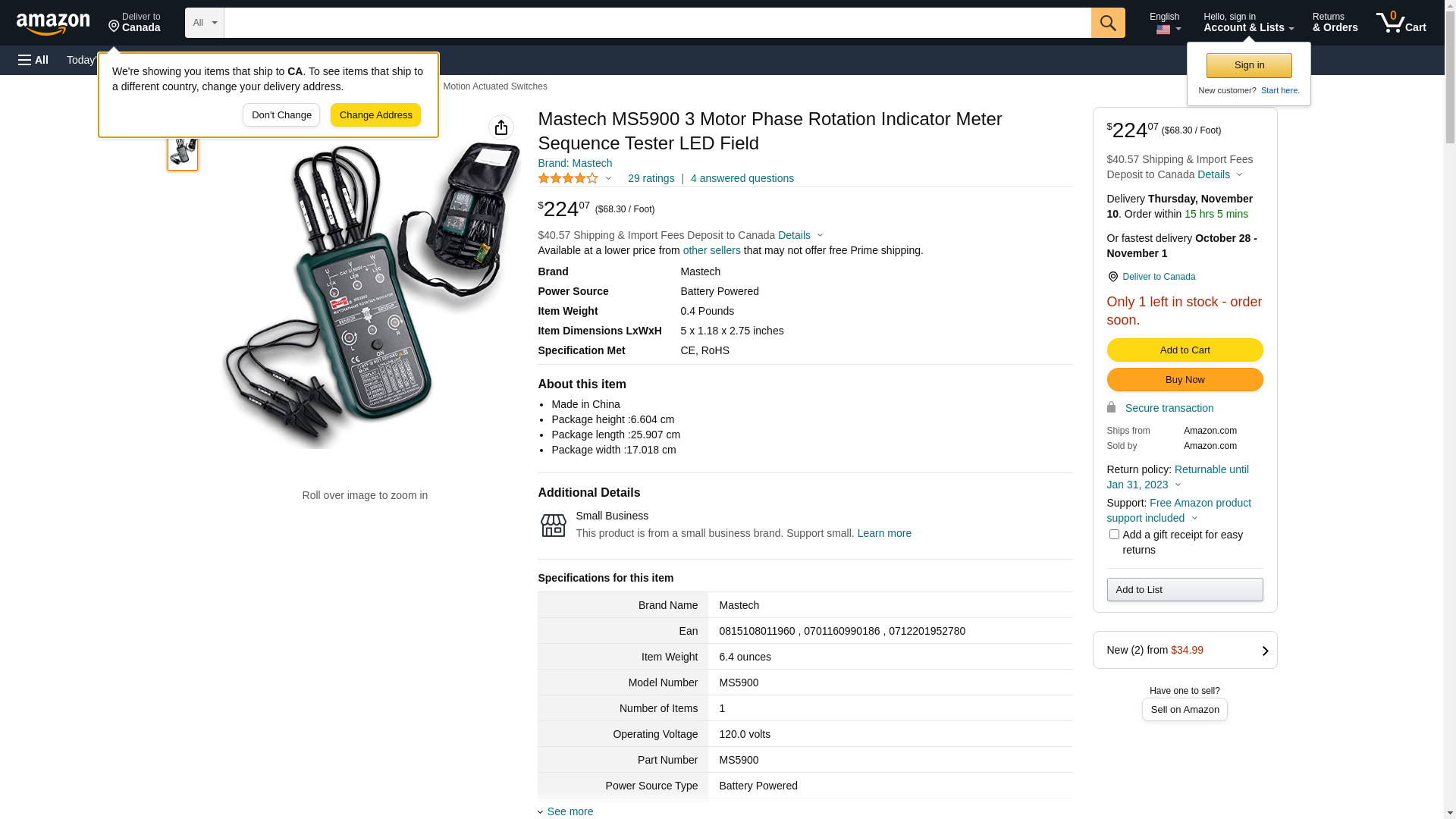

MASTECH . MS5900

Motor and Phase Rotation Indicator is a handheld, battery-operated instrument designed to detect the rotary field of three-phase systems and determine motor-rotation direction.<br/> <br/>Features:<br/> <br/>Determine the Motor Connection <br/>Non-Contact Rotary Field Indication <br/>Determine Rotary Field Direction <br/>Standalone direction indicator <br/>Wireless <br/> <br/> <br/>Specifications:<br/> <br/> Environment<br/>Operating Temperature: 0 Celsius to 40 Celsius<br/>Operating Altitude : 2000 meters (m)<br/>Pollution Protection level: 2<br/>Explosion-proof type : IP 40<br/>Size: 124 x 61 x 27 millimeters (mm) (4.9 x 2.4 x1.1 inches (in))<br/>Weight: 150 grams (g) (0.3(lbs))<br/>Humidity 15-80%<br/>Safety Specifications<br/>Electrical Safety : Complies with DIN VDE 0411, IEC 61010 DIN, VDE 0413-7, EN 61557-7, IEC 61557-7 safety standard<br/>Maximum Operating Voltage (Ume): 400 V AC for all ranges<br/>Protection Level CAT III, 300 V<br/>Electrical Specifications<br/>Battery 6F22/9V<br/>Current Consomption max 20 mA<br/>Battery Life minimum 1 year for average use<br/> <br/>Determine Rotary Field Direction:<br/>Nominal Voltage Rotary Direction: 1 to 400 V AC<br/>Nominal Voltage Phase Indication: 120 to 400 V AC<br/>Frequency Range (fn): 2 to 400 Hz<br/>Test Currents (In per phase): less than 3.5 mA<br/> <br/>Non-Contact Rotary Field Indication<br/>Frequency Range (fn): 2 to 400 Hz<br/>Determine the Motor Connection<br/>Nominal Test Voltage (Ume): 1 to 400 V AC<br/>Nominal Test Currents (In per phase): less than 3.5 mA
