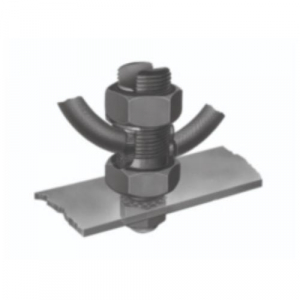

Order K2C28B1TN by Burndy 27002876 Mechanical Connector, Tin Plated, (Pack of 100 pcs) - US Mega Store

Burndy . K2C28B1TN

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Wire Connectors
CategoryL3Burndy K2C28B1TN
ConditionNEW
DimensionUnitmm
Extra Product NameOrder K2C28B1TN by Burndy 27002876 Mechanical Connector, Tin Plated, (Pack of 100 pcs) - US Mega Store
height62.483999999999995
height_AttribDimension - Height inch
length100.0
length_AttribDimension - L Length Overall mm
moq, multiple, tierMinQty11
MPN, SKUK2C28B1TN
qtyInStockContact Us
snippet<p>Tin plated; Accepts 2 conductors; #1 Stranded Copper - 4/0 Solid Copper; 5/8" Stud </p>
tierPrice1216.2
width34.29
width_AttribDimension - Nut Width inch
MaterialCopper Alloy
PlatedY
Plating TypeTin Plated
Stud Installation Torque inch pounds660 LBS/in
Trade NameSERVIT POST&trade;
TypeKC and K2C Series
Dimension - B Length inch1.25 in
Dimension - Body Width inch1.18 in
Dimension - D inch1.50 in
Dimension - Height inch2.46 in
Dimension - L Length Overall mm100 mm
Dimension - Length Overall inch3.94 in
Dimension - Nut Width inch1.35 in
Dimension - P inch0.55 in
Conductor - Copper Solid Size1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
Conductor - Copper Solid Size Range, Conductor - Copper Str Size Range1 AWG-4/0 AWG
Conductor - Copper Str Size1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG
Physical Attribute - Number of Conductors Accommodated Total2
Certification - CSA Approved, Certification - ETL, Certification - UL Recognized, Certification - cULusNo
Certification - UL Listed Direct Burial, UL ListedYes
Industry Standard(s), Standards - Industry Standards MetUL467
Standards - RoHS Compliance StatusEX

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comK2C28B1TN1Contact Us11 @ $216.20
