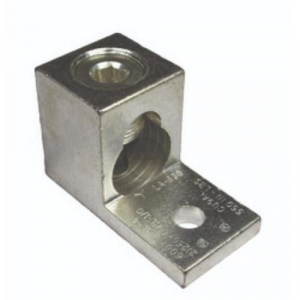

Order KA36229U by Burndy 50030416 Mechanical Connector, Terminal - US Mega Store

Burndy . KA36229U

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Wire Connectors
CategoryL3Burndy KA36229U
ConditionNEW
DimensionUnitmm
Extra Product NameOrder KA36229U by Burndy 50030416 Mechanical Connector, Terminal - US Mega Store
UPC781810654514
height45.974
height_AttribDimension - Height inch
length71.0
length_AttribDimension - L Length Overall mm
moq, multiple, tierMinQty11
MPN, SKUKA36229U
qtyInStock-2
qtySourceFieldMap
snippet<p><strong>Burndy, KA36229U, 50030416 Mechanical Connectors, Terminal </strong> </p>
tierPrice143.16
width35.0
width_AttribDimension - Width mm
Connector TypeTerminal
Installation Torque Recommended in-lb550 LBS/in
MaterialAluminum
PlatedY
Plating TypeTin - Electro Plated
Temperature Rating194
TypeBolted Lugs & Terminals
Dimension - D inch1.50 in
Dimension - Height inch1.81 in
Dimension - L Length Overall mm71 mm
Dimension - Length Overall inch2.81 in
Dimension - N inch0.63 in
Dimension - Stud Size inch3/8
Dimension - Width inch1.38 in
Dimension - Width mm35 mm
Conductor - Copper Str Size, Conductor - Copper Str Size Range4 Str. - 600 kcmil or (2) 250 kcmil - 1/0 Str.
Conductor TypeCU C Str-Size
Certification - CSA Approved, UL ListedYes
Certification - ETL, Certification - UL Recognized, Certification - cULusNo
Standards - RoHS Compliance StatusEX

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comKA36229U1-211 @ $43.16
Graybar25693388111 @ $0.00
Crescent Electric Supply Co275639211
