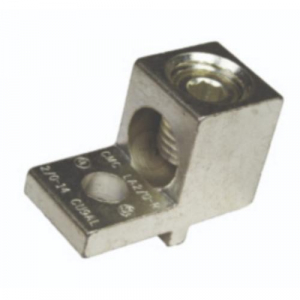

Order KA26UAR by Burndy 10023919 Mechanical Connector, Allen - US Mega Store

Burndy . KA26UAR

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Wire Connectors
CategoryL3Burndy KA26UAR
ConditionNEW
DimensionUnitmm
Extra Product NameOrder KA26UAR by Burndy 10023919 Mechanical Connector, Allen - US Mega Store
height19.812
height_AttribDimension - Height inch
length31.0
length_AttribDimension - L Length Overall mm
moq, multiple, tierMinQty1, Physical Attribute - Number of Holes, Physical Attribute - Number of Screws, Number Of Wires1
MPN, SKUKA26UAR
qtyInStock-2
qtySourceFieldMap
snippet<p>Dual Rated for copper and aluminum; aluminum alloy; tin plated; bottom anti-rotational tab; 1/4" stud hole; #14 - 2/0 AWG Al/Cu; CSA Certified, UL Listed </p>
tierPrice114.82
width16.0
width_AttribDimension - Width mm
Installation Torque Recommended in-lb120
MaterialAluminum
Physical Attribute - Screw TypeAllen
PlatedY
Plating TypeAluminum Tin Plated
TypeBolted Lugs & Terminals
Dimension - Height inch0.78 in
Dimension - Hole Size inch0.26 in
Dimension - Hole Size mm7 mm
Dimension - L Length Overall mm31 mm
Dimension - Length Overall inch1.20 in
Dimension - Stud Size fraction, Dimension - Stud Size inch1/4
Dimension - Width inch0.63 in
Dimension - Width mm16 mm
Rating - Minimum Voltage600
Conductor - AL Str Size8 AWG;6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG
Conductor - AL Str Size Range8 AWG-2/0 AWG
Conductor - Copper Str Size14 ;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0
Conductor - Copper Str Size Range14 -2/0
Certification - CSA Approved, UL ListedYes
Certification - ETL, Certification - UL Recognized, Certification - cULusNo
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comKA26UAR1-211 @ $14.82
Graybar25837209111 @ $16.88
Crescent Electric Supply Co284355211
