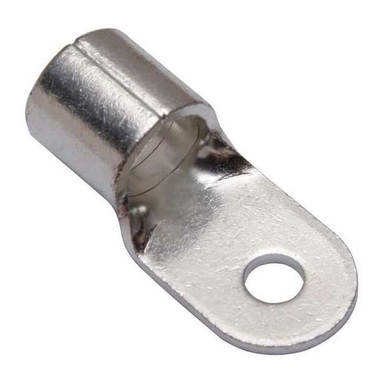

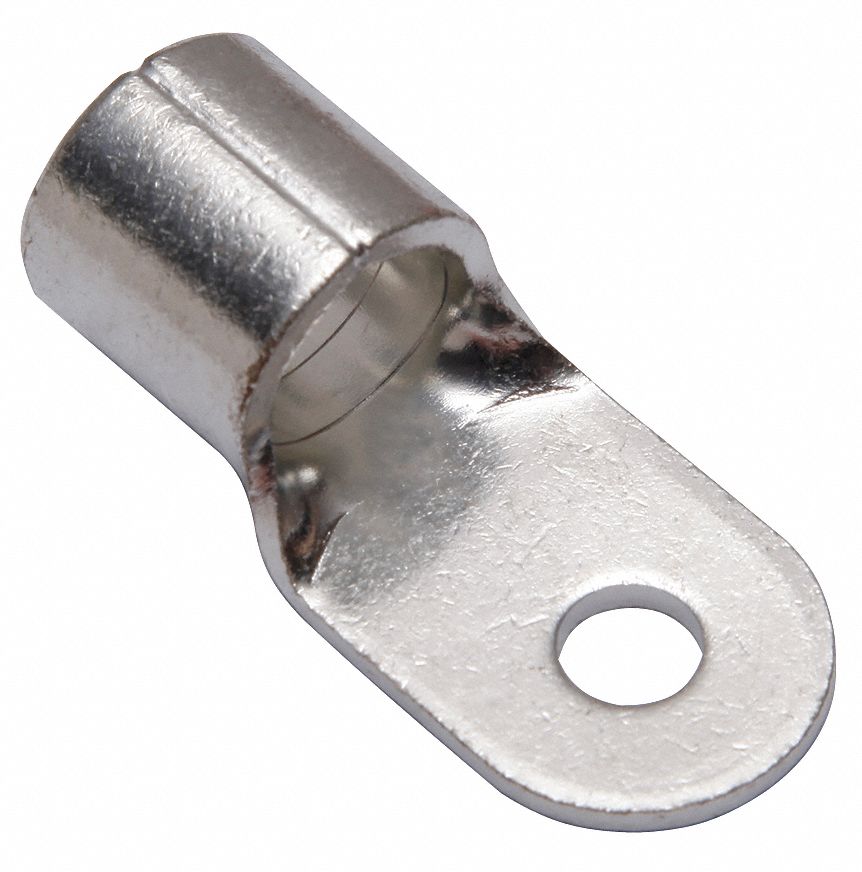

Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 3/0 AWG, Maximum Wire Size 3/0 AWG, Termination Style Crimp, Tongue Width 0.99 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 0.79 in, Barrel Outside Diameter 0.79 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P219, 22P221

'One-Hole Lug Compression Connector, Connector Type YAD, Cable Size 3/0 AWG, Tongue Style Ring, Color Code None, Die Code 1023, Length 2.13 In., Barrel Length Short, Material Copper, Plate Material Tin, Stud Size 5/16 In., Hole Center to End 1.650 In., Width 0.95 In., Peep Hole No'

These compression connectors are designed to provide reliable and controllable electrical connections. Each features non-insulated, brazed copper construction and electro-tin plating to resist overheating and corrosion. This listing is for each. Technical Specification Item Ring Terminal Insulation Type Bare Stud Size 5/16 in Wire Range 3/0 AWG Insulation Color Bare Seam Brazed Max. Temp. 302 Degrees F Max. Voltage 600 V Overall Length 2.13 in Connection Material Tin Plater Copper Tongue Width - Wire Connector 0.95 in
