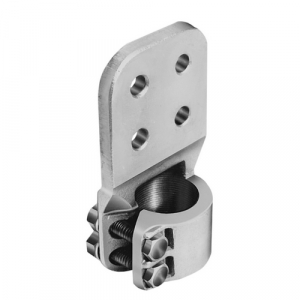

Order FD685D16 by Burndy 296157 Copper Stud Connector, (Pack of 4 pcs) - US Mega Store

Burndy . FD685D16

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Connector Adapters
CategoryL3Burndy FD685D16
ConditionNEW
DimensionUnitmm
Extra Product NameOrder FD685D16 by Burndy 296157 Copper Stud Connector, (Pack of 4 pcs) - US Mega Store
diameter, height57.15
height_AttribDimension - Pin Diameter fraction
length197.0
length_AttribDimension - L Length Overall mm
moq, multiple, tierMinQty11
MPN, SKUFD685D16
qtyInStock-2
qtySourceFieldMap
snippet<p><strong>Burndy, FD685D16, 296157 Copper Stud Connector </strong> </p>
tierPrice1414.9
width101.6
width_AttribDimension - Pad Width inch
ApplicationSubstation
Connector TypeStud Connector
MaterialCopper Alloy
Material - HardwareDURIUM&trade; Silicon Bronze
Physical Attribute - Number of Holes4
Physical Attribute - Pad Configuration4x4 - 4 holes
Physical Attribute - Pad OrientationIn - line
PlatedN
Plating TypeUnplated
TypeStuds
Dimension - B Length fraction2.5 in
Dimension - B Length inch2.50 in
Dimension - Bolt Size fraction1/2
Dimension - D inch, Dimension - Pad Width inch4.00 in
Dimension - F Width Center to Center inch1.75 in
Dimension - L Length Overall mm197 mm
Dimension - Length Overall inch7.77 in
Dimension - N inch1.13 in
Dimension - Pin Diameter fraction2 - 1/4 in
Dimension - Pin Diameter inch2.250 in
Dimension - Thread Size1/2 - 12
Dimension - Threads per inch12
Rating - KVA230 kV
Conductor - Connection CombinationStud to Pad
Certification - CSA Approved, Certification - ETL, Certification - UL Recognized, Certification - cULus, UL ListedNo
Standards - RoHS Compliance StatusEX

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comFD685D161-211 @ $414.90
ZoroG602439007221 @ $636.12
