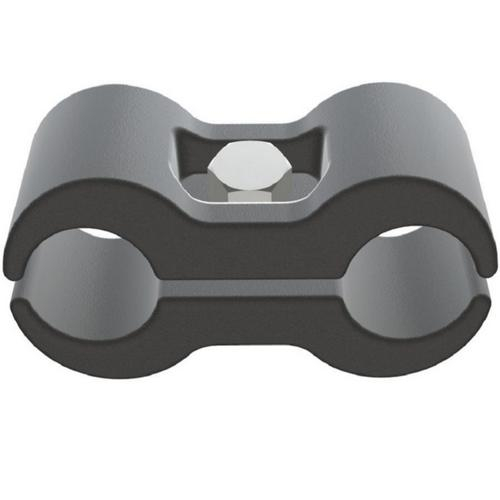

Burndy 10090586 Conductor Cable Spacer, 1200 -1600 kcmil CPR46A4. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

Burndy . CPR46A4

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
DimensionUnitmm
height69.342
height_AttribDimension - Height inch
length152.0
length_AttribDimension - L Length Overall mm
moq, multiple1
MPN, SKUCPR46A4
qtyInStock0
snippetBurndy 10090586 Conductor Cable Spacer, 1200 -1600 kcmil CPR46A4. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
width54.0
width_AttribDimension - Width mm
ApplicationSubstation
Connector TypeSpacer
Installation Torque Recommended in-lb480 lb-in
Item Type4D
MaterialCast Aluminum Alloy
Material - HardwareAluminum
PlatedN
Plating TypeUnplated
Dimension - B Length inch, Dimension - Width inch2.13 in
Dimension - Height inch2.73 in
Dimension - L Length Overall mm152 mm
Dimension - Length Overall inch5.97 in
Dimension - Width mm54 mm
Rating - KVA230 kV
Conductor - ACSR Str Size Range1113 kcmil-1351.5 kcmil
Conductor - AL Str Size1200 kcmil; 1250 kcmil; 1272 kcmil; 1300 kcmil; 1351 kcmil; 1400 kcmil; 1431 kcmil; 1500 kcmil; 1590 kcmil; 1600 kcmil
Conductor - AL Str Size Range1200 kcmil-1600 kcmil
Physical Attribute - Number of Conductors Accommodated Total2

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MegadepotCPR46A411
usmegastore.comCPR46A41-211 @ $36.31
Platt.com209478111
GalcoCPR46A4-BURN111 @ $48.92
