Power Distribution Block, For Conductor Material Aluminum, Copper, Line Connections/Pole 1, Line Side Stud Size Not Applicable, For Line Copper Wire Size - Minimum 14 AWG, For Line Copper Wire Size - Maximum 2/0 AWG, Load Connections/Pole 6, Load Side Stud Size Not Applicable, For Load Copper Wire Size - Minimum 14 AWG, For Load Copper Wire Size - Maximum 2 AWG, Maximum Current - Copper Conductor 175 A, Maximum Voltage 600 V AC/DC, Mounting Type DIN-Rail, Surface Mount, Number of Poles 3

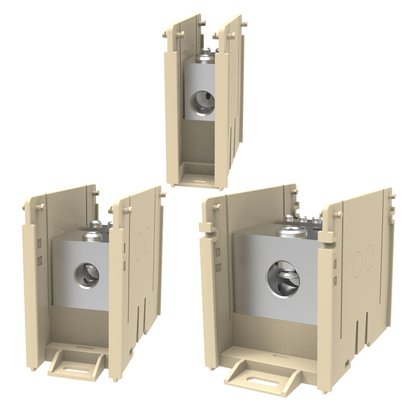

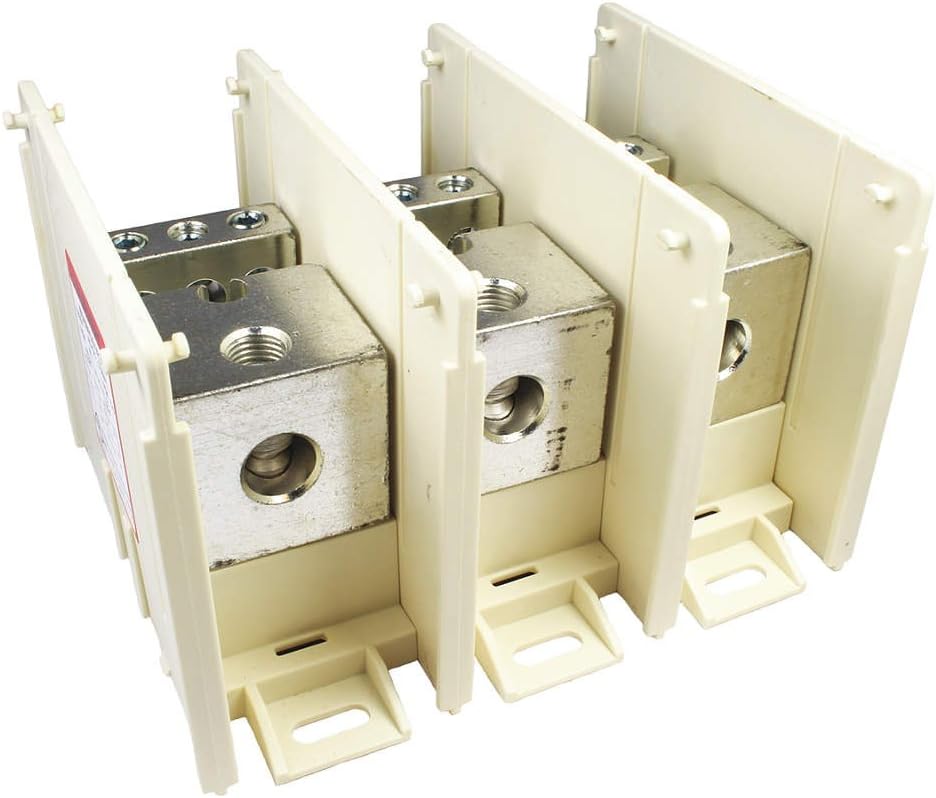

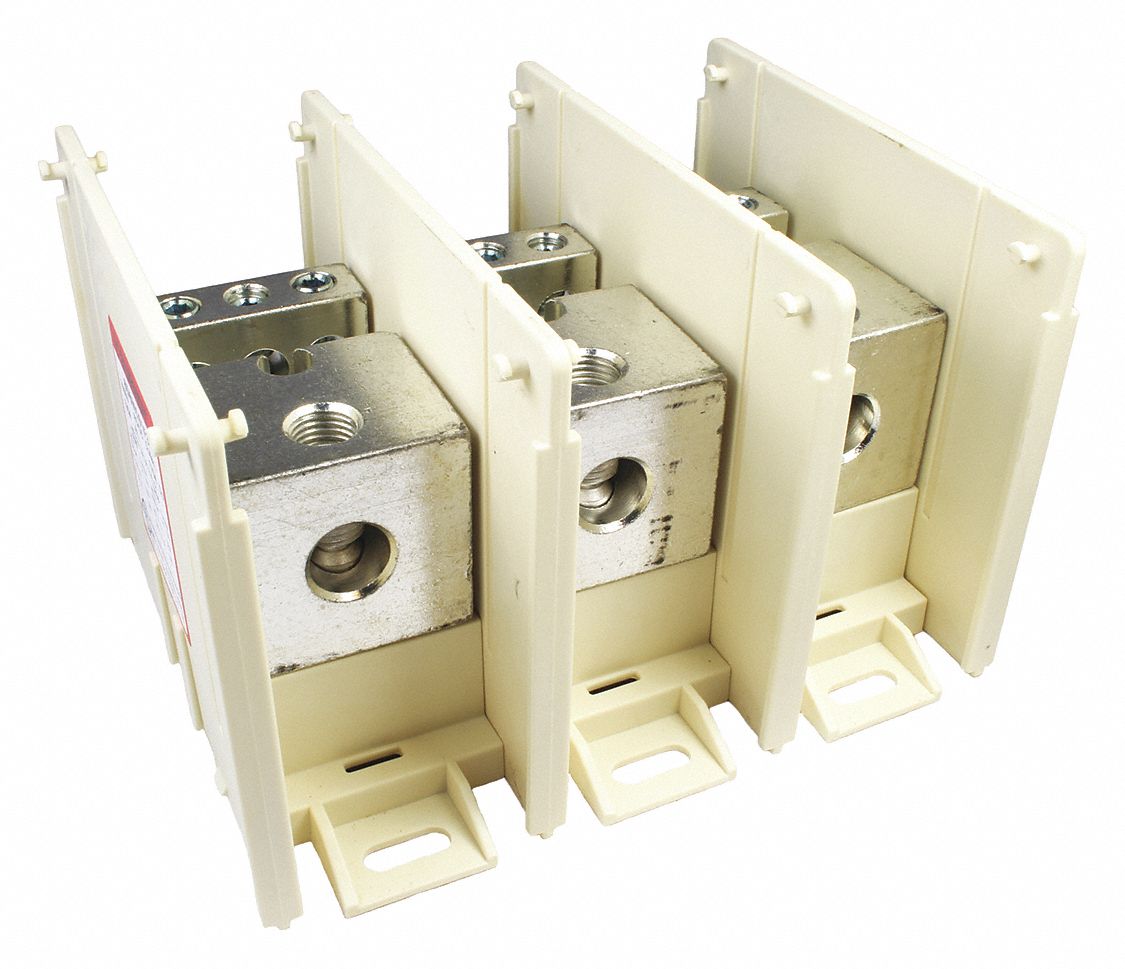

Hubbell Electrical / Burndy Versi-Pole Configurable Series 3-Pole Open-style power distribution block in tin-plated finish has current rating of 175 Amps per pole and voltage rating of 1000 Volts. It accommodates run conductor range of 14 - 2/0 kcmil and tap conductor range of 14 - 2 AWG. The power distribution block offers panel mounting. It measures 3.7 Inch x 5.72 Inch x 4.52 Inch. The block is perfect for use with both code and flex conductor without requiring ferrules. It has high short-circuit current rating of up to 100 kilo-Amps with proper fusing. The glass-reinforced nylon 6/6 base and side barriers offer extra durability as well as excellent insulating properties. This block features aluminum construction. It is suitable for use with copper as well as aluminum conductors. The power distribution block is UL listed. Poles: 3 Type: Insulated, Distribution Block
