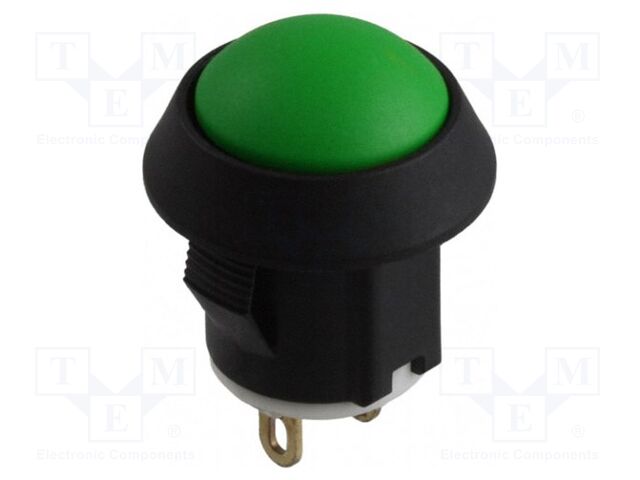

C&K AP4D600SZBE | Switch: push-button; Pos: 2; SPST-NO; 0.125A/125VAC; 0.2A/24VDC

C&K . AP4D600SZBE

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerC&K
CategoryL1Switches and Indicators
CategoryL2Push Button Switches
CategoryL3Standard Switches
DimensionUnitmm
Extra Product NameC&K AP4D600SZBE | Switch: push-button; Pos: 2; SPST-NO; 0.125A/125VAC; 0.2A/24VDC
atoms, moq, multiple, Stable positions number1
diameter, length, width13.7
jsonUrlData060ac7e47a40fe5ec4b52b86731dad99.
jsonUrlData2c0553caadf6da5aede53
keywordsC&K, AP4D600SZBE, Switches and Indicators, Push Button Switches, Standard Switches
length_Attrib, width_AttribMounting hole diameter
MPN, SKUAP4D600SZBE
qtyInStock0
snippetC&K AP4D600SZBE | Switch: push-button; Pos: 2; SPST-NO; 0.125A/125VAC; 0.2A/24VD
Type of switchpush-button
Number of positions2
Contacts configurationSPST-NO
AC contacts rating @R0.125A / 125V AC
DC contacts rating @R0.2A / 24V DC
Switching methodOFF-(ON)
IP ratingIP67
Illuminationnone
Leadsfor soldering
Operating temperature-40...85?C
Max contact resistance:50m?
Operating Force4N
Button shapeconvex,
Mounting hole diameter?13.7mm
Body colourblack
Actuator colourgreen
Mountingon panel
Manufacturer seriesAP
