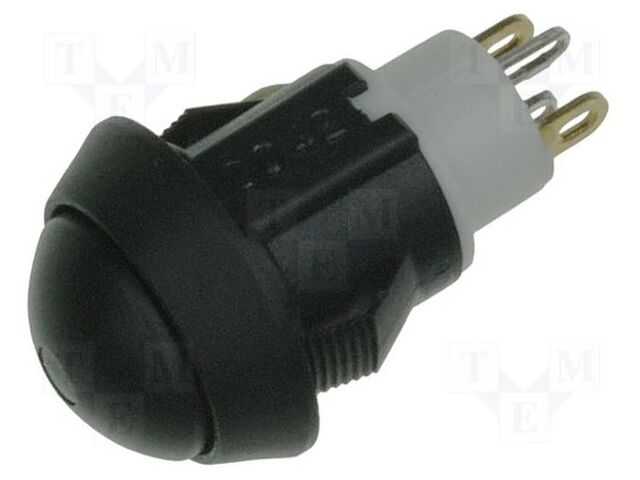

C&K AP4D201SZBE | Switch: push-button; Pos: 2; SPST-NO; 0.125A/125VAC; 0.2A/24VDC

C&K . AP4D201SZBE

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerC&K
CategoryL1Switches and Indicators
CategoryL2Push Button Switches
CategoryL3Standard Switches
DimensionUnitmm
Extra Product NameC&K AP4D201SZBE | Switch: push-button; Pos: 2; SPST-NO; 0.125A/125VAC; 0.2A/24VDC
atoms, moq, multiple, Stable positions number1
diameter, length, width13.7
jsonUrlData35860e415dbdb7088821f59c532f8c4b.
jsonUrlData2ff744ac745a660a58290
keywordsC&K, AP4D201SZBE, Switches and Indicators, Push Button Switches, Standard Switches
length_Attrib, width_AttribMounting hole diameter
MPN, SKUAP4D201SZBE
qtyInStock0
snippetC&K AP4D201SZBE | Switch: push-button; Pos: 2; SPST-NO; 0.125A/125VAC; 0.2A/24VD
Type of switchpush-button
Number of positions2
Contacts configurationSPST-NO
AC contacts rating @R0.125A / 125V AC
DC contacts rating @R0.2A / 24V DC
Switching methodOFF-(ON)
IP ratingIP67
IlluminationLED
Backlight colourwhite
Leadsfor soldering
Operating temperature-40...85?C
Max contact resistance:50m?
Operating Force4N
Button shapeconvex,
Mounting hole diameter?13.7mm
Body colour, Actuator colourblack
Mountingon panel
Manufacturer seriesAP

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEAP4D201SZBE11
Newark34AH565611
Hawk ElectronicsAP4D201SZBE11
