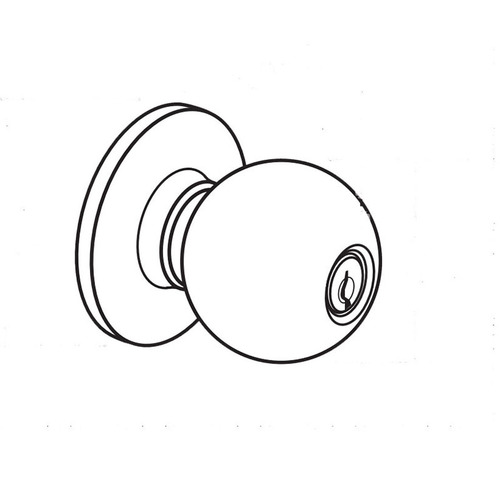

Arrow RK11BD 32D IC RK Series Cylindrical Knob Lock Satin Stainless Steel

Assa Abloy . RK11BD 32D IC

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Manufacturer ParentAssa Abloy
CategoryIdL3Mechanical Locksets
CategoryL1Windows and Door Hardware
CategoryL2Commercial and Residential Door Hardware
DimensionUnitinch
Extra Product NameArrow RK11BD 32D IC RK Series Cylindrical Knob Lock Satin Stainless Steel
atoms, moq, multiple, tierMinQty1, Package Qty1
color, Color, Finish, Finish DescriptionSatin Stainless Steel
height3.25
height_AttribPackage Height
length7.875
length_AttribPackage Length
MPNRK11BD 32D IC
qtyInStock-2
qtySourceFieldMap
tierPrice158.74
width3.625
width_AttribPackage Width
Thickness1-3/8" - 1-3/4"
HandNon-Handed
Color Code630/US32D
Function11-Entrance/Office
Cylinder TypeSFIC Prep Less Core
Fire Rated3 Hours {A}
Package Height3.25"
Package Length7.875"
Package Volume92.77734375
Package Width3.625"
ANSI FunctionF109
Bolt Protection1/2"
Latch Backset Dim2-3/8"
Latch NumberR70
Latch TypeDead Latch (Guarded)
Lever/Knob DesignB - Ball
Lock Face Size2-1/4" x 1"
Product Height2.125"
Product Length2.75"
Product Width2.5"
Rose/Escutcheon DesignD - Rose
ScrewsCombination
Special MarksSmall format interchangeable core, Fire rated 3 Hours {A}
Strike Height2-3/4"
Strike NumberR60
Strike TypeT - Standard
Strike Width1-1/8"
Base Material, Finish FamilyStainless Steel
GradeANSI/BHMA Grade 2
ApplicationMulti Family Housing Markets; Light Commercial
Backset2-3/8 Inch, 1 x 2-1/4 Inch, Square Corner
Warranty5 Year Mechanical
Included Components(2) Keys
Cylinder Material, Latch Bolt MaterialBrass
StandardsANSI A156.2; UL Listed
Cylinder Type UsedSmall Format Interchangeable Core
Function DescriptionPushing and turning button on inside locks outside knob/lever requiring use of a key until button is manually unlocked.
Function FamilyEntry/Entrance/Office
Product Projection2-3/4 Inch
Trim MaterialBrass (Rose)
FeaturesCold Rolled Steel with Zinc Dichromate Finish for Corrosion Resistance; Guarded Latchbolt on All Locking Functions
Handle TypeKnob
Door Thickness1-3/8" to 1-3/4"
Rose Diameter2-1/2 Inch
StrikeT-Strike, 1-1/8 Inch x 2-3/4 Inch, 1-1/4 Inch Lip, Sq Corner
Knob/Lever Size2-1/8 Inch
Latch Throw1/2 Inch
Sub-SeriesRK11-BD-32D-IC
Product TypeCylindrical Lock

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareRK11BD 32D IC1-211 @ $58.74
