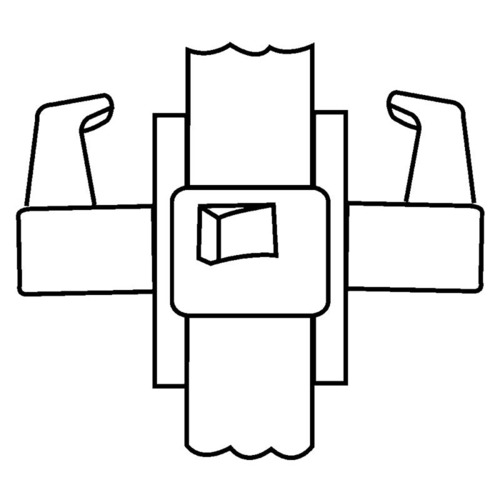

Corbin Russwin UT5210 ESE 626 LHR UT5210 Passage Lockset LHR, Satin Chrome

Assa Abloy . UT5210 ESE 626 LHR

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Manufacturer ParentAssa Abloy
CategoryIdL3Mechanical Locksets
CategoryL1Windows and Door Hardware
CategoryL2Commercial and Residential Door Hardware
DimensionUnitinch
Extra Product NameCorbin Russwin UT5210 ESE 626 LHR UT5210 Passage Lockset LHR, Satin Chrome
atoms, moq, multiple, tierMinQty1, Package Qty1
color, ColorBright Chrome
height4.875
height_AttribStrike Height
length9.5
length_AttribPackage Length
MPNUT5210 ESE 626 LHR
qtyInStock-2
qtySourceFieldMap
tierPrice11735.96
width8.0
width_AttribPackage Width
Thickness1-3/4 In.
Package Volume256.5
Function10-Passage/Closet
Latch TypeLatchbolt
Burglar RatedNo
Hand, HandingLeft Hand Reverse
Fire Rated3 Hours {A}
Special MarksFire rated 3 Hours {A}, Complies with ADA accessibility guidelines
Dust BoxNone
Strike Width1-1/4 In.
Latch Backset Dim2-3/4 In.
Package Height3.375"
ScrewsCombination
Package Width8"
Bolt Protection3/4 In.
Color Code626/US26D
Strike TypeASA
Rose/Escutcheon DesignE - Rose
Base MaterialBrass or Bronze
Strike Height4-7/8 In.
Lever/Knob DesignES - Lever
Package Length9.5"
Finish, Finish Description, Finish FamilySatin Chrome
GradeANSI/BHMA Grade 1
Backset2-3/4 Inch
StrikeANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
Lever StyleESE-Essex
Rose/Escutcheon TrimSquare
Product TypeCylindrical Lock
Projection2.4375
Lever Length5.3125
Door Thickness1-3/4 inch
Bore Size2.1250
Strike NumberT-Strike, 1-1/8 Inch x 2-3/4 Inch, 1-1/4 Inch Lip, Sq Corner.
ADA ApprovedFalse
ApplicationSchools and Universities; Office Buildings; Hospitals; Municipal Buildings; Historic Buildings
Warranty1 Year
Handle TypeLever
Rose Diameter3-1/8" x 4-1/8"
Latch Throw3/4 Inch
ANSI FunctionF75
Door Cross Bore2.125 Inch
StandardsANSI/BHMA A156.2; Meets A117.1 Accessibility Code; UL/cUL Listed
Function DescriptionLatch retracted by knobs/levers at all times
Function FamilyPassage/Hall/Closet
Product Projection2-7/16 Inch
Trim MaterialForged (Lever; Escutcheon)
FeaturesFactory Pre-Assembled for Quick, Economical, One-Piece Installation, No Job Site Assembly Required; 3/4" Radius Latchbolt; Designed to Wedge more Tightly into the Strike
ADA CompliantYES
Lever Length-Inches5.3125 Inch
Knob/Lever Size5-5/16 Inch
Latch Bolt MaterialChrome Plated Brass
Lever Style FamilyStraight Return Lever
Sub-SeriesUT5210-ESE-626-LHR

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareUT5210 ESE 626 LHR1-211 @ $1735.96
