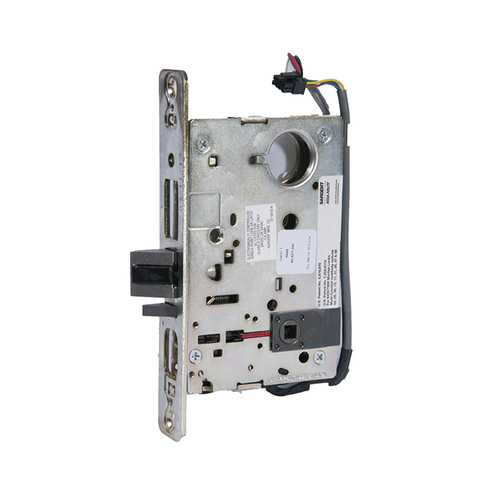

Sargent RX-8271-24V 26D RX-8271-24V Electrified Mortise Lock Body Only, Satin Chrome

Assa Abloy . RX-8271-24V 26D

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Manufacturer ParentAssa Abloy
CategoryIdL3Electric Locks
CategoryL1Windows and Door Hardware
CategoryL2Door and Window Security Hardware
DimensionUnitinch
Extra Product NameSargent RX-8271-24V 26D RX-8271-24V Electrified Mortise Lock Body Only, Satin Chrome
Voltage24V
atoms, moq, multiple, tierMinQty1, Package Qty1
color, Color, Finish, Finish Description, Finish FamilySatin Chrome
height4.875
height_AttribStrike Height
length9.25
length_AttribPackage Length
MPNRX-8271-24V 26D
qtyInStock-2
qtySourceFieldMap
tierPrice1939.1
width5.625
width_AttribPackage Width
Strike Number82-0110
Package Volume227.6367188
Amp Draw500mA Peak, 15mA Holding
Function71-Fail Secure
HandField Reversible
GradeANSI/BHMA Grade 1
Fire Rated2 Hours {B}
Special MarksFire rated 2 Hours {B}
Strike Width1-1/4"
Operating Voltage12VDC/24VDC
ApplicationStand-Alone Application; Hospital Application
Package Height4.375"
ScrewsCombination
Door Thickness1-3/4 inch
Package Width5.625"
Bolt Protection3/4"
Color Code626/US26D
Strike TypeCurved Lip
OriginUSA
BAA QualifiedYes
Switch TypeRX
Base MaterialBrass or Bronze
Strike Height4-7/8"
PowerHard Wired
Package Length9.25"
Product TypeElectronic Mortise Lock
Electric OptionsRequest to Exit
Warranty10 Year Limited Warranty; 2 Year Limited Warranty on Electrified Locks; Warranty Limited to Replacement of Lockbody and Components
Aluminium Bottle ContentsSwinging
ProductTypeManual
ADA CompliantYES
Strike Size4-7/8" x 3/32"
Cylinder MaterialBrass
Hub MaterialCold Forged Steel
StandardsANSI/BHMA A156.13; UL-cUL
Case Dimensions7/64" Thick
Function DescriptionPower On, Unlock Outside Lever
Front Size8" x 1-1/4"
Function FamilyFail Secure
Peak Current0.5A
Strike Lip1-1/4 Inch
Minimum Stile Width4-3/4 Inch
Electrified Features12/24VDC at 0.015A Continuous
FeaturesFast and Easy Installation; Lock is Easily Re-Handed Without Removing Parts or Opening the Lock Case; Patented Design and Construction; Pre-Assembled Components Make Installation Fool-Proof
Backset2-3/4 Inch
Cylinder TypeConventional
Latch Throw3/4 Inch
Latchbolt Size1" x 5/8"
Latchbolt Type1-Piece Anti-Friction Reversible Latch
Sub-SeriesRX-8271-24V-26D

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareRX-8271-24V 26D1-211 @ $939.10
