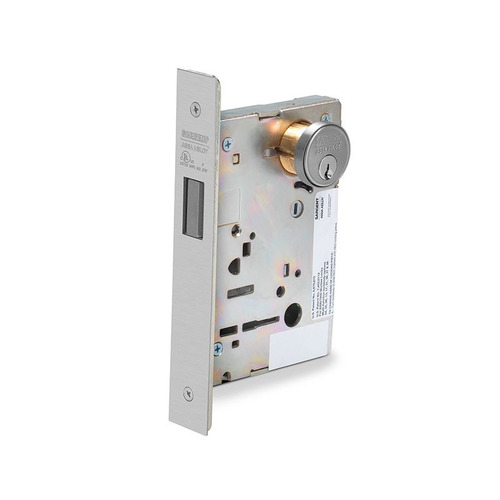

Sargent RX-8270-24V 10 RX-8270-24V Electrified Mortise Lock Body Only, Satin Bronze

Assa Abloy . RX-8270-24V 10

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Manufacturer ParentAssa Abloy
CategoryIdL3Electric Locks
CategoryL1Windows and Door Hardware
CategoryL2Door and Window Security Hardware
DimensionUnitinch
Extra Product NameSargent RX-8270-24V 10 RX-8270-24V Electrified Mortise Lock Body Only, Satin Bronze
Voltage24V
atoms, moq, multiple, tierMinQty1, Package Qty1
color, ColorSatin Bronze Clear Coated
height4.875
height_AttribStrike Height
length9.25
length_AttribPackage Length
MPNRX-8270-24V 10
qtyInStock-2
qtySourceFieldMap
tierPrice1942.51
width5.625
width_AttribPackage Width
GradeANSI/BHMA Grade 1
ApplicationStand-Alone Application; Hospital Application
HandField Reversible
PowerHard Wired
Color Code612/US10
Function70-Fail Safe
Door Thickness1-3/4 inch
Fire Rated2 Hours {B}
OriginUSA
BAA QualifiedYes
Package Height4.375"
Package Length9.25"
Package Volume227.6367188
Package Width5.625"
Amp Draw500mA Peak, 15mA Holding
Bolt Protection3/4"
Operating Voltage12VDC/24VDC
ScrewsCombination
Special MarksFire rated 2 Hours {B}
Strike Height4-7/8"
Strike Number82-0110
Strike TypeCurved Lip
Strike Width1-1/4"
Base MaterialBronze
Switch TypeRX
Finish, Finish Description, Finish FamilySatin Bronze
Product TypeElectronic Mortise Lock
Electric OptionsRequest to Exit
Strike Size4-7/8" x 3/32"
Minimum Stile Width4-3/4 Inch
Peak Current0.5A
Latch Throw3/4 Inch
Function DescriptionPower On, Locks Outside Lever
Electrified Features12/24VDC at 0.015A Continuous
Case Dimensions7/64" Thick
Sub-SeriesRX-8270-24V-10
ADA CompliantYES
Front Size8" x 1-1/4"
Cylinder TypeConventional
Latchbolt Type1-Piece Anti-Friction Reversible Latch
Hub MaterialCold Forged Steel
Latchbolt Size1" x 5/8"
Function FamilyFail Safe
StandardsANSI/BHMA A156.13; UL-cUL
Cylinder MaterialBrass
FeaturesFast and Easy Installation; Lock is Easily Re-Handed Without Removing Parts or Opening the Lock Case; Patented Design and Construction; Pre-Assembled Components Make Installation Fool-Proof
Backset2-3/4 Inch
Warranty10 Year Limited Warranty; 2 Year Limited Warranty on Electrified Locks; Warranty Limited to Replacement of Lockbody and Components
Strike Lip1-1/4 Inch

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareRX-8270-24V 101-211 @ $942.51
