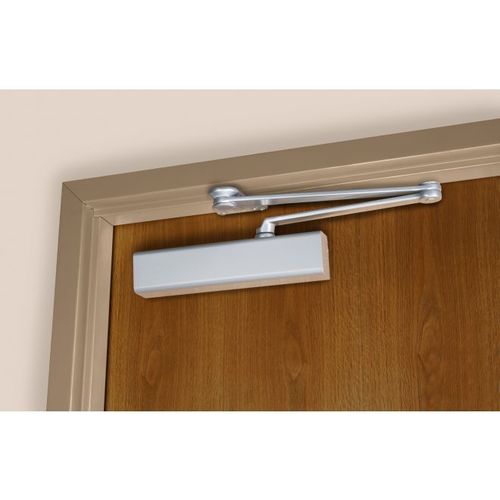

Norton PR8501 689 Parallel Rigid Arm Adjustable Surface Mount Door Closer with Full Cover and Sex Nuts Aluminum Finish

Assa Abloy . PR8501 689

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Manufacturer ParentAssa Abloy
CategoryIdL3Door Closer
CategoryL1Windows and Door Hardware
CategoryL2Door Closers and Accessories
DimensionUnitinch
Extra Product NameNorton PR8501 689 Parallel Rigid Arm Adjustable Surface Mount Door Closer with Full Cover and Sex Nuts Aluminum Finish
atoms, moq, multiple, tierMinQty11
color, Color, Finish DescriptionAluminum Painted
height2.875
height_AttribProduct Height
length13.0
length_AttribProduct Length
MPNPR8501 689
qtyInStock-2
qtySourceFieldMap
tierPrice1237.72
width2.125
width_AttribProduct Width
Finish, Finish FamilyAluminum
FunctionRegular
Color Code689/US28
Fire Rated3 Hours {A}
OriginUSA
BAA QualifiedYes
Package Height3.5
Package Length15.25
Package Volume333.59375
Package Width6.25
GradeANSI/BHMA Grade 1
Closer CoverFull Plastic Cover
Product TypeDoor Closer/Holder/Stop
ApplicationOffices; Banks; Retail Malls; Hotels; Health Care; Clinics
Hand, HandingNon-Handed
Warranty30 Year Limited Warranty
Spring SizeAdjustable 1-6
Door Thickness1-3/4 inch
Door Size28" to 48"
Maximum Door Opening180?
StandardsGrade 1 - ANSI/BHMA A156.4; UL listed; UL10c Compliant for Positive Pressure
Closer Arm Extension8 Inch
Closer Arm TypeParallel Rigid Arm
Closer Clearance5-7/8 Inch
Closer Fluid Temperature RangeExtremely High to as Low as -40?F
Closer FluidCloser Fluid
Closer Piston Diameter1-1/4 Inch
Closer Pinion Diameter5/8 Inch
Function FamilyNon Hold Open Door Closer
Mounting Hole Size3/4" x 12"
FeaturesStandard; Separate And Independent; Latch; Sweep And Backcheck Intensity Valves; Staked Valves
Product Height2-7/8 Inch
Product Length13 Inch
Product Width2-1/8 Inch
ADA CompliantYES
Product MaterialCast Aluminum
Mounting TypePush or Pull Side
Closer Hold-Openfalse
Sub-SeriesPR8501-689

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwarePR8501 6891-211 @ $237.72
