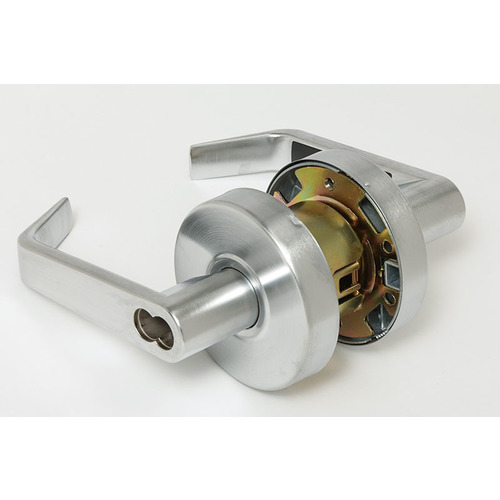

Arrow RL17SR 26D IC RL Series Cylindrical Lever Lock Satin Chrome

Assa Abloy . RL17SR 26D IC

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Manufacturer ParentAssa Abloy
CategoryIdL3Mechanical Locksets
CategoryL1Windows and Door Hardware
CategoryL2Commercial and Residential Door Hardware
DimensionUnitinch
Extra Product NameArrow RL17SR 26D IC RL Series Cylindrical Lever Lock Satin Chrome
atoms, moq, multiple, tierMinQty1, Package Qty1
color, Color, Finish, Finish Description, Finish FamilySatin Chrome
height4.875
height_AttribStrike Height
length4.75
length_AttribProduct Length
MPNRL17SR 26D IC
qtyInStock-2
qtySourceFieldMap
tierPrice190.72
width, Projection2.4375
width_AttribProduct Width
GradeANSI/BHMA Grade 2
Thickness1-3/8" - 1-3/4"
HandNon-Handed
Color Code626/US26D
Function17-Classroom
Cylinder TypeSFIC Less Core-Small Format Prep
Fire Rated3 Hours {A}
Package Height3.75
Package Length7.25
Package Volume183.515625
Package Width6.75
ANSI FunctionF84
Bolt Protection1/2"
Latch Backset Dim2-3/4"
Latch NumberR71
Latch TypeDeadlatch
Lever/Knob DesignSR - Sierra
Lock Face Size2-1/4" x 1-1/8"
Product Height3.3125"
Product Length4.75"
Product Width2.4375"
Rose/Escutcheon Design3-5/16 In. Diameter
ScrewsCombination
Special MarksSmall format interchangeable core, Fire rated 3 Hours {A}
Strike Height4-7/8"
Strike NumberR62
Strike TypeT-Strike
Strike Width1-1/4"
Base MaterialBrass or Bronze
StrikeANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
Lever StyleSR-Sierra
Product TypeCylindrical Lock
Rose/Escutcheon TrimRound Rose
Backset2-3/4 Inch
Lever Length4.7500
Door Thickness1-3/8" to 1-3/4"
Bore Size2.1250
ADA ApprovedFalse
OriginTaiwan
ApplicationMulti Family Housing Markets; Light Commercial
Warranty5 Year Mechanical
Handle TypeLever
Rose Diameter3-5/16 Inch
Latch Throw1/2 Inch
Door Cross Bore2.125 Inch
StandardsANSI A156.2; UL Listed
Cylinder Type UsedSmall Format Interchangeable Core
Function DescriptionDeadlocking latch bolt by levers. Outside knob/lever is locked by key in outside lever. Inside knob/lever is always free.
Front Size1-1/8" x 2-1/4"
Function FamilyClassroom
Latch bolt size, Latchbolt Size7/8 Inch
Strike Lip1-1/4 Inch
Product Projection2-7/16 Inch
Trim MaterialBrass (Rose); Pressure Cast Zinc (Lever)
FeaturesRemovable Through Bolts; Guarded Latchbolt on All Locking Functions
Lever Length-Inches4.75 Inch
Latch CornerSquare
Knob/Lever Size4-3/4 Inch
Latch Bolt MaterialBrass
Lever Style FamilyStraight Return Lever
Sub-SeriesRL17-SR-26D-IC
ADA CompliantYES
Strike Size1-1/4" x 4-7/8"
Cylinder MaterialSolid Brass

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareRL17SR 26D IC1-211 @ $90.72
