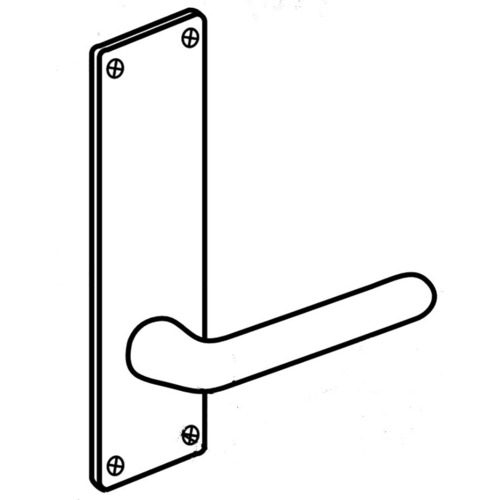

Corbin Russwin ML2048 RWN 626 LC ML2048 Mortise Entrance Lever Lockset, Satin Chrome

Assa Abloy . ML2048 RWN 626 LC

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Manufacturer ParentAssa Abloy
CategoryIdL3Mortise lock
CategoryL1Storefront & Security Hardware
CategoryL2Locks and Accessories
DimensionUnitinch
Extra Product NameCorbin Russwin ML2048 RWN 626 LC ML2048 Mortise Entrance Lever Lockset, Satin Chrome
atoms, moq, multiple, tierMinQty1, Package Qty1
color, Color, Finish, Finish Description, Finish FamilySatin Chrome
height4.875
height_AttribStrike Height
length7.5
length_AttribRose/Escutcheon Length
MPNML2048 RWN 626 LC
qtyInStock0
tierPrice1725.99
width2.25
width_AttribRose/Escutcheon Width
Thickness1-3/4"
Strike Number236L72018
Function48-Entrance/Apartment
ANSI FunctionF08/F10
HandField Reversible
GradeANSI/BHMA Grade 1
Fire Rated3 Hours {A}
Special MarksFire rated 3 Hours {A}, Complies with ADA accessibility guidelines
Strike Width1-1/4"
ADA Compliance, BAA QualifiedYes
Lock Face Size8" x 1-1/4"
ApplicationOffices, Schools, Hospitals, Hotels
ScrewsCombination
Bolt Protection3/4" Latchbolt, 1" Deadbolt
Color Code626/US26D
Strike TypeStraight Lip
OriginUSA
Rose/Escutcheon DesignN Escutcheon
Base MaterialBrass or Bronze
Strike Height4-7/8"
Lever/Knob DesignRW - Regis
Cylinder TypeLess Cylinder
Lever StyleRW-Regis
Product TypeMortise Lock
Rose/Escutcheon TrimN-Wrought Escutcheon
Backset2-3/4 Inch
Warranty10 year limited
Latch Throw3/4 Inch
Lip to Center1-1/8 Inch
Deadbolt Throw1 Inch
Handle TypeLever
Door Thickness1-3/4 inch
ADA CompliantYES
Strike Size4-7/8" x 1-1/4"
Hub Size5/16 Inch
Deadbolt Size19/32" x 1-1/4"
Deadbolt TypeOne-Piece Stainless Steel
Hub Material, Front MaterialSteel
StandardsANSI/BHMA A156.13 Series 1000, Operational and Security Grade 1, A117.1 Accessibility Code; UL Listed
Case Dimensions5-7/8" x 4" x 15/16"
Front Size8" x 1-1/4" x 3/32"
Function FamilyEntrance or Apartment
Product Projection2-1/2 Inch
Spacing3-5/8" (Knob/Lever to Cylinder); 2-7/16" (Knob/Lever to Thumbturn)
Rose/Escutcheon Width2-1/4 Inch
Rose/Escutcheon Length7-1/2 Inch
FeaturesProvides Life Safety and Security in a Single Door Prep, Saving the Additional Cost of a Deadlock; Latchbolt by Key Outside or by Grip Either Side, Unless Outside Grip Is Locked by Toggle-Action Stop
Latchbolt Size5/8" x 1"
Knob/Lever Size4-3/8 Inch
Latchbolt Type2-Piece Mechanical With Anti-Friction Insert
Lever Style FamilyStraight Tubular Lever
Sub-SeriesCL_Mortise_Locks_corbin_russwin_392

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareML2048 RWN 626 LC111 @ $725.99
