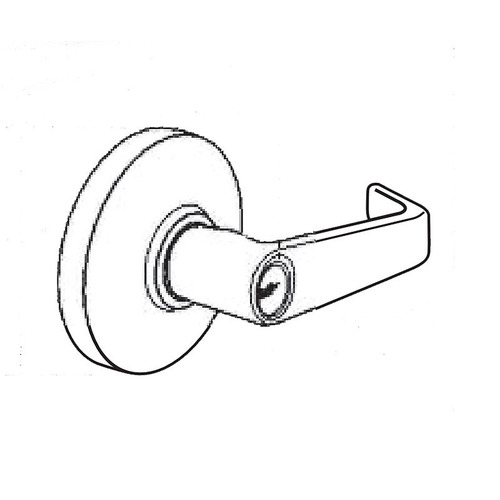

Arrow GL97SR 26D IC GL Series Cylindrical Lever Lock, Satin Chrome

Assa Abloy . GL97SR 26D IC

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Manufacturer ParentAssa Abloy
CategoryIdL3Mechanical Locksets
CategoryL1Windows and Door Hardware
CategoryL2Commercial and Residential Door Hardware
DimensionUnitinch
Extra Product NameArrow GL97SR 26D IC GL Series Cylindrical Lever Lock, Satin Chrome
atoms, moq, multiple, tierMinQty1, Package Qty1
color, Color, Finish, Finish Description, Finish FamilySatin Chrome
height4.875
height_AttribStrike Height
length8.75
length_AttribPackage Length
MPNGL97SR 26D IC
qtyInStock-2
qtySourceFieldMap
tierPrice1330.98
width7.375
width_AttribPackage Width
GradeANSI/BHMA Grade 1
Thickness1-3/8" - 2"
HandNot Handed
Color Code626/US26D
Function97-Classroom Intruder
Cylinder TypeSFIC Less Core-Small Format Prep
Fire Rated3 Hours {A}
Package Height3.875"
Package Length8.75"
Package Volume250.0585938
Package Width7.375"
ANSI FunctionF110
Bolt Protection1/2"
Latch Backset Dim2-3/4"
Latch NumberG71
Latch TypeDead Latch (Guarded)
Lever/Knob DesignSR - Sierra
Lock Face Size2-1/4" x 1-1/8"
Product Height3.5625"
Product Length4.75"
Product Width3"
Rose/Escutcheon Design3-9/16 In. Diameter
ScrewsCombination
Special MarksSmall format interchangeable core, Fire rated 3 Hours {A}
Strike Height4-7/8"
Strike Number306
Strike TypeANSI Strike
Strike Width1-1/4"
Base MaterialBrass or Bronze
Backset2-3/4 Inch
Lever StyleSR-Sierra
Rose/Escutcheon TrimRound Rose
Product TypeCylindrical Lock
StrikeANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
Projection2.5313
Lever Length4.2500
Door Thickness1-3/4" - 2"
Bore Size2.1250
ADA ApprovedFalse
ApplicationHeavy Duty
Warranty5 year limited
Handle TypeLever
Rose Diameter3-9/16 Inch
Latch Throw1/2 Inch
ADA CompliantYES
Strike Size1-1/4" x 4-7/8"
Door Cross Bore2.125 Inch
StandardsANSI/BHMA A156.2; UL and CUL Listed; Federal Specification FF-H-106C
Cylinder Type UsedSmall Format Interchangeable Core
Front Material, Strike Material, Latch Bolt MaterialStainless Steel
Function DescriptionEither lever operates latchbolt (except when outside lever is locked by key from either side). Outside lever remains locked upon egress Inside lever always active.
Function FamilyClassroom Security/Intruder
Latch bolt size1 Inch
Strike Lip1-1/4 Inch
Product Projection3 Inch
Trim MaterialPressure Cast Zinc (Lever)
FeaturesInside and Outside Rose Inserts Shall Have Independent Heavy Strength Coil Springs Allowing Lever Handle to Move Bi-Directionally
Lever Length-Inches4.25 Inch
Knob/Lever Size4-3/4 Inch
Lever Style FamilyStraight Return Lever
Sub-SeriesGL97-SR-26D-IC

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareGL97SR 26D IC1-211 @ $330.98
