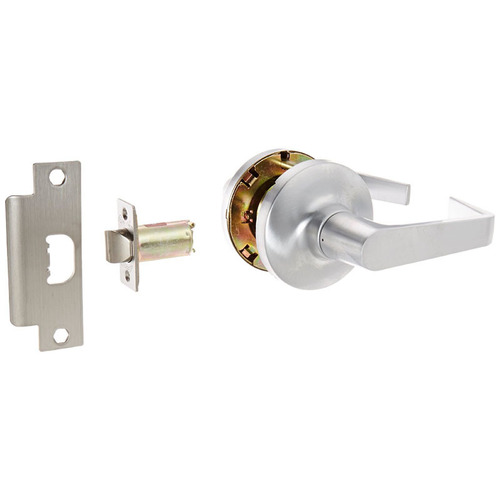

Arrow GL02SR 26D GL Series Cylindrical Lever Lock, Satin Chrome

Assa Abloy . GL02SR 26D

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Manufacturer ParentAssa Abloy
CategoryIdL3Mechanical Locksets
CategoryL1Windows and Door Hardware
CategoryL2Commercial and Residential Door Hardware
DimensionUnitinch
Extra Product NameArrow GL02SR 26D GL Series Cylindrical Lever Lock, Satin Chrome
atoms, moq, multiple, tierMinQty1, Package Qty1
color, Color, Finish, Finish Description, Finish FamilySatin Chrome
height4.875
height_AttribStrike Height
length8.75
length_AttribPackage Length
MPNGL02SR 26D
qtyInStock-2
qtySourceFieldMap
tierPrice1237.26
width7.375
width_AttribPackage Width
GradeANSI/BHMA Grade 1
Thickness1-3/8" - 2"
HandNot Handed
Color Code626/US26D
Function02-Privacy
Fire Rated3 Hours {A}
Package Height3.875"
Package Length8.75"
Package Volume250.0585938
Package Width7.375"
ANSI FunctionF76
Bolt Protection1/2"
Latch Backset Dim2-3/4"
Latch NumberG73
Latch TypeSpring Latch (Unguarded)
Lever/Knob DesignSR - Sierra
Lock Face Size2-1/4" x 1-1/8"
Product Height3.5625"
Product Length4.75"
Product Width3"
Rose/Escutcheon Design3-9/16 In. Diameter
ScrewsCombination
Special MarksFire rated 3 Hours {A}
Strike Height4-7/8"
Strike Number306
Strike TypeANSI Strike
Strike Width1-1/4"
Base MaterialBrass or Bronze
Backset2-3/4 Inch
StrikeANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
Lever StyleSR-Sierra
Rose/Escutcheon TrimRound Rose
Product TypeCylindrical Lock
Projection2.5313
Lever Length4.2500
Door Thickness1-3/4" - 2"
Bore Size2.1250
ADA ApprovedFalse
ApplicationHeavy Duty
Warranty5 year limited
Handle TypeLever
Rose Diameter3-9/16 Inch
Latch Throw1/2 Inch
Door Cross Bore2.125 Inch
StandardsANSI/BHMA A156.2; UL and CUL Listed; Federal Specification FF-H-106C
Front Material, Strike Material, Latch Bolt MaterialStainless Steel
Function DescriptionOutside knob/lever locked by pushbutton on inside knob/lever. Rotating inside knob/lever or closing door releases/unlocks button. Emergency release in outside knob/lever.
Function FamilyPrivacy/Bedroom/Bathroom
Latch bolt size1 Inch
Strike Lip1-1/4 Inch
Product Projection3 Inch
Trim MaterialPressure Cast Zinc (Lever)
FeaturesInside and Outside Rose Inserts Shall Have Independent Heavy Strength Coil Springs Allowing Lever Handle to Move Bi-Directionally
ADA CompliantYES
Lever Length-Inches4.25 Inch
Knob/Lever Size4-3/4 Inch
Lever Style FamilyStraight Return Lever
Sub-SeriesGL02-SR-26D
Strike Size1-1/4" x 4-7/8"

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareGL02SR 26D1-211 @ $237.26
