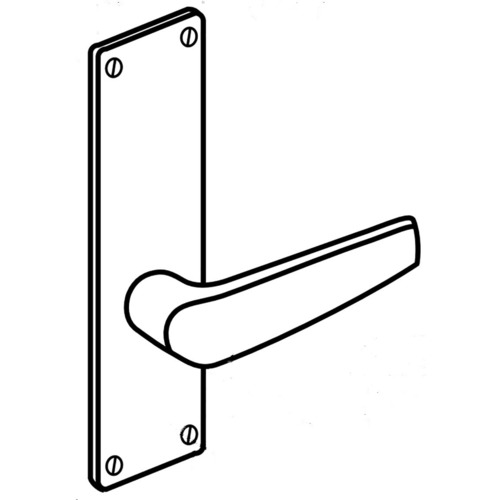

Corbin Russwin ML2010 CSN 612 ML2010 Mortise Passage Lever Lockset, Satin Bronze

Assa Abloy . ML2010 CSN 612

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Manufacturer ParentAssa Abloy
CategoryIdL3Mortise lock
CategoryL1Storefront & Security Hardware
CategoryL2Locks and Accessories
DimensionUnitinch
Extra Product NameCorbin Russwin ML2010 CSN 612 ML2010 Mortise Passage Lever Lockset, Satin Bronze
atoms, moq, multiple, tierMinQty1, Package Qty1
color, ColorSatin Bronze Clear Coated
height4.875
height_AttribStrike Height
length7.5
length_AttribRose/Escutcheon Length
MPNML2010 CSN 612
qtyInStock-2
qtySourceFieldMap
tierPrice1818.89
width2.25
width_AttribRose/Escutcheon Width
Lever/Knob DesignCS - Citation
Strike Height4-7/8"
Base MaterialBronze
Rose/Escutcheon DesignN Escutcheon
BAA Qualified, ADA ComplianceYes
OriginUSA
Strike TypeStraight Lip
Color Code612/US10
Bolt Protection3/4" Latchbolt
ScrewsCombination
ApplicationOffices, Schools, Hospitals, Hotels
Lock Face Size8" x 1-1/4"
Strike Width1-1/4"
Special MarksFire rated 3 Hours {A}, Complies with ADA accessibility guidelines
Fire Rated3 Hours {A}
GradeANSI/BHMA Grade 1
HandField Reversible
ANSI FunctionF01
Function10-Passage/Closet
Package Volume0
Strike Number236L72018
Thickness1-3/4"
Finish Description, Finish, Finish FamilySatin Bronze
Lever StyleCS-Citation
Rose/Escutcheon TrimN-Wrought Escutcheon
Product TypeMortise Lock
Hub Size5/16 Inch
Hub Material, Front MaterialSteel
StandardsANSI/BHMA A156.13 Series 1000, Operational and Security Grade 1, A117.1 Accessibility Code; UL Listed
Case Dimensions5-7/8" x 4" x 15/16"
Function DescriptionLatch bolt by knobs/levers at all times
Front Size8" x 1-1/4" x 3/32"
Function FamilyPassage/Hall/Closet
Product Projection2-5/8 Inch
Spacing3-5/8" (Knob/Lever to Cylinder); 2-7/16" (Knob/Lever to Thumbturn)
Rose/Escutcheon Width2-1/4 Inch
Rose/Escutcheon Length7-1/2 Inch
FeaturesProvides Life Safety and Security in a Single Door Prep, Saving the Additional Cost of a Deadlock; Latchbolt by Grip Either Side; Both Grips Always Free
Backset2-3/4 Inch
Warranty10 year limited
Handle TypeLever
Door Thickness1-3/4 inch
Latch Throw3/4 Inch
Lip to Center1-1/8 Inch
ADA CompliantYES
Latchbolt Size5/8" x 1"
Knob/Lever Size4-3/8 Inch
Latchbolt Type2-Piece Mechanical With Anti-Friction Insert
Lever Style FamilyStraight Lever
Sub-SeriesCL_Mortise_Locks_corbin_russwin_15
Strike Size4-7/8" x 1-1/4"

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareML2010 CSN 6121-211 @ $818.89
