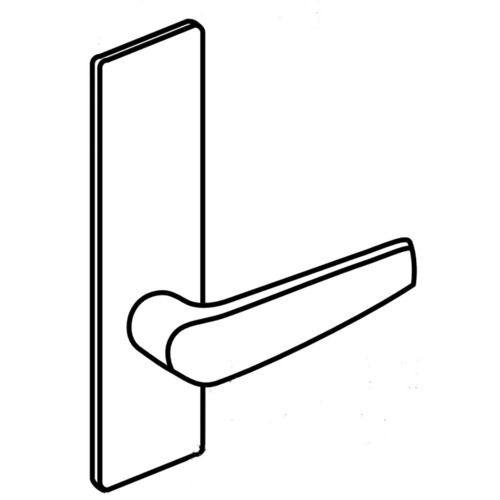

Corbin Russwin ML2010 CSM 613 ML2010 Mortise Passage Lever Lockset, Oil Rubbed Dark Bronze

Assa Abloy . ML2010 CSM 613

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Manufacturer ParentAssa Abloy
CategoryIdL3Mortise lock
CategoryL1Storefront & Security Hardware
CategoryL2Locks and Accessories
DimensionUnitinch
Extra Product NameCorbin Russwin ML2010 CSM 613 ML2010 Mortise Passage Lever Lockset, Oil Rubbed Dark Bronze
atoms, moq, multiple, tierMinQty1, Package Qty1
color, ColorDark Oxidized Satin Bronze Oil Rubbed
height4.875
height_AttribStrike Height
length7.5
length_AttribRose/Escutcheon Length
MPNML2010 CSM 613
qtyInStock, Package Volume0
tierPrice1818.89
width2.25
width_AttribRose/Escutcheon Width
Thickness1-3/4"
Strike Number236L72018
Function10-Passage/Closet
ANSI FunctionF01
HandField Reversible
GradeANSI/BHMA Grade 1
Fire Rated3 Hours {A}
Special MarksFire rated 3 Hours {A}, Complies with ADA accessibility guidelines
Strike Width1-1/4"
ADA Compliance, BAA QualifiedYes
Lock Face Size8" x 1-1/4"
ApplicationOffices, Schools, Hospitals, Hotels
ScrewsCombination
Bolt Protection3/4" Latchbolt
Color Code613/US10B
Strike TypeStraight Lip
OriginUSA
Rose/Escutcheon DesignM - Escutcheon
Base MaterialBronze
Strike Height4-7/8"
Lever/Knob DesignCS - Citation
Finish Description, FinishOil Rubbed Dark Bronze
Lever StyleCS-Citation
Rose/Escutcheon TrimM-Wrought Escutcheon
Product TypeMortise Lock
Hub Size5/16 Inch
Hub Material, Front MaterialSteel
StandardsANSI/BHMA A156.13 Series 1000, Operational and Security Grade 1, A117.1 Accessibility Code; UL Listed
Case Dimensions5-7/8" x 4" x 15/16"
Function DescriptionLatch bolt by knobs/levers at all times
Front Size8" x 1-1/4" x 3/32"
Function FamilyPassage/Hall/Closet
Product Projection2-5/8 Inch
Spacing3-5/8" (Knob/Lever to Cylinder); 2-7/16" (Knob/Lever to Thumbturn)
Rose/Escutcheon Width2-1/4 Inch
Rose/Escutcheon Length7-1/2 Inch
FeaturesProvides Life Safety and Security in a Single Door Prep, Saving the Additional Cost of a Deadlock; Latchbolt by Grip Either Side; Both Grips Always Free
Backset2-3/4 Inch
Warranty10 year limited
Handle TypeLever
Door Thickness1-3/4 inch
Latch Throw3/4 Inch
Lip to Center1-1/8 Inch
ADA CompliantYES
Finish FamilyDark Bronze
Latchbolt Size5/8" x 1"
Knob/Lever Size4-3/8 Inch
Latchbolt Type2-Piece Mechanical With Anti-Friction Insert
Lever Style FamilyStraight Lever
Sub-SeriesCL_Mortise_Locks_corbin_russwin_13
Strike Size4-7/8" x 1-1/4"

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareML2010 CSM 613111 @ $818.89
