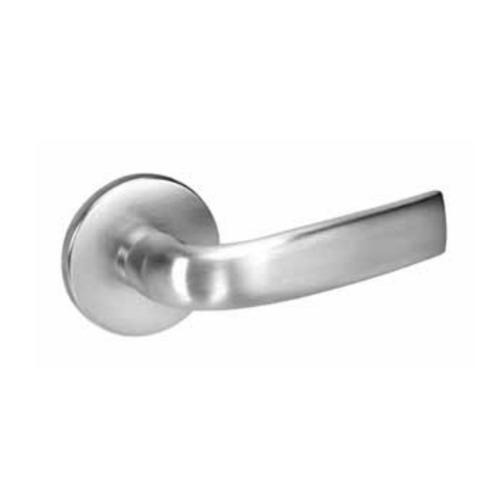

Yale Commercial JNR8860FL 625 8860FL Mortise Entrance or Storeroom Lever Lockset, Bright Polished Chrome

Assa Abloy . JNR8860FL 625

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Manufacturer ParentAssa Abloy
CategoryIdL3Mortise lock
CategoryL1Storefront & Security Hardware
CategoryL2Locks and Accessories
DimensionUnitinch
Extra Product NameYale Commercial JNR8860FL 625 8860FL Mortise Entrance or Storeroom Lever Lockset, Bright Polished Chrome
atoms, moq, multiple, tierMinQty1, Package Qty1
color, ColorBright Chromium Plated
height4.875
height_AttribStrike Height
length, width2.5625
length_AttribRose/Escutcheon Length
MPNJNR8860FL 625
qtyInStock0
tierPrice1781.35
width_AttribRose/Escutcheon Width
Cylinder Length1-1/8 In.
GradeANSI/BHMA Grade 1
Thickness1-3/4"
Color Code625/US26
KeywayYale PARA (E1R, 8)
Function60FL-Entrance/Storeroom
Cylinder Type, Cylinder Type UsedConventional
Fire Rated3 Hours {A}
Bolt Protection3/4"
Design AJN Lever
Design BCO Rose
Latch Backset Dim2-3/4"
Lever/Knob DesignJN - Jefferson
Lock Face Size, Front Size8" x 1-1/4"
Rose/Escutcheon DesignR - Rose
Special MarksConventional cylinder, Fire rated 3 Hours {A}, Complies with ADA accessibility guidelines
Strike Height4-7/8"
Strike Number2815
Strike TypeCurved Lip
Strike Width1-1/4"
Base MaterialBrass or Bronze
Finish, Finish DescriptionBright Polished Chrome
Keyblank GroupingYALE-PARA-6-1
Lever StyleJN-Jefferson
Product TypeMortise Lock
Rose/Escutcheon TrimR-Rose
Keying ChargesCCAM
ApplicationOffices; Shopping Centers; Industrial Buildings; Commercial Facilities
Hand, HandingReversible
Backset2-3/4 Inch
Warranty10 year mechanical
Handle TypeLever
Door Thickness1-3/4 inch
Latch Throw3/4 Inch
Deadbolt Throw1 Inch
ADA CompliantYES
Finish FamilyPolished Chrome
Keying TypeKeyed Random
Deadbolt TypeCast Stainless Steel
Hub MaterialSolid Steel
StandardsANSI/BHMA A156.13, Series 1000, Operational Grade 1; UL/cUL fire rated up to 3 hours
Case Dimensions4-1/8" x 1" x 6-1/16"
Function FamilyStoreroom
Strike Lip1-1/4 Inch
Product Projection2-3/8 Inch
Rose/Escutcheon Width, Rose/Escutcheon Length2-9/16 Inch
FeaturesHeavy Duty Trim for Resistance Against Damage and Vandalism; Latchbolt Retracted by Lever Either Side; Deadbolt Operated by Key Outside, Thumbturn Inside
ANSI FunctionF21
Latch TypeStainless Steel One-Piece Anti-Friction
Strike Size1-1/4" x 4-7/8"
Hub Size3/8 Inch
Knob/Lever Size4-7/16 Inch
Lever Style FamilyStraight Lever
Sub-SeriesCL_Mortise_Locks_yale_commercial_405

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareJNR8860FL 625111 @ $781.35
