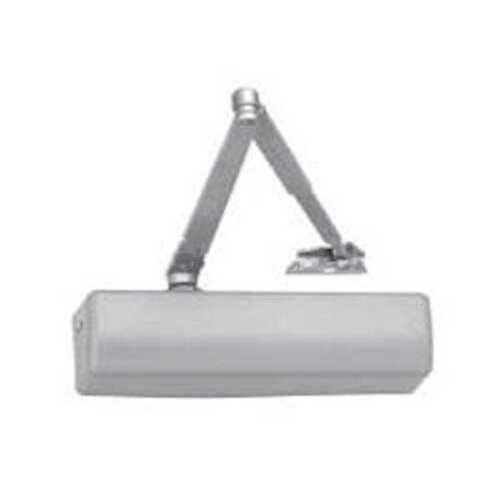

Corbin Russwin DC6413 689 M54 DC6410 Series Surface Door Closer

Assa Abloy . DC6413 689 M54

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Manufacturer ParentAssa Abloy
CategoryIdL3Door Closer
CategoryL1Windows and Door Hardware
CategoryL2Door Closers and Accessories
DimensionUnitinch
Extra Product NameCorbin Russwin DC6413 689 M54 DC6410 Series Surface Door Closer
VoltageMechanical
atoms, moq, multiple, tierMinQty1, Package Qty1
color, Color, Finish Description, FinishAluminum Painted
height14.25
height_AttribCase Height
length15.0
length_AttribCase Length
MPNDC6413 689 M54
qtyInStock-2
qtySourceFieldMap
tierPrice1452.28
width7.75
width_AttribCase Width
Closer Size, Spring Size3
Arm TypeDouble Lever Arm Regular
Cold Weather Fluid, Through Bolts, Physically Handicapped, Sealed CloserYes
Package Length13.78"
Special Rust Inhibitor, Cement CaseNo
Base MaterialVARIES
Mounting StyleTri Mount
Color Code689/US28
Case Volume1656.5625
Package Width7.375"
Mounting Location, Mount, Mounting TypePush or Pull Side
Case Height14.25"
Hold OpenWithout Hold Open
Package Height3.875"
Case Length15"
TypeSurface
Degree Swing180 Deg.
CoverFull
Special MarksFire rated 3 Hours {A}, Complies with ADA accessibility guidelines
Fire Rated3 Hours {A}
GradeANSI/BHMA Grade 1
Hand, HandingNon-Handed
Drop Plate, Spacer, BracketAvailable
Case Width7.75"
Screw TypeSelf Tapping
Package Volume393.8065625
Back CheckAdjustable
Warranty25 Year limited warranty
FunctionTri-Packed Non-Hold Open Arm
Door Thickness1-3/4 inch
Door Size2' 4" to 4' 6" (Interior); 2' 6"to 4' (Exterior Out-Swinging)
Maximum Door Opening180?
Product Height2 Inch
Product Length11-5/8 Inch
Product Width2-3/4 Inch
ADA CompliantYES
Closer Arm ConstructionForged Steel
Product MaterialCast Iron
Closer CoverPlastic Cover
StandardsGrade 1 - ANSI/BHMA: A156.4, UL / ULC / UL10c
Closer Arm TypeParallel Arm
Closer FluidHigh Lubricity Extreme Temperature Hydraulic Fluid
Closer Piston Diameter1-3/8 Inch
Product TypeDoor Closer/Holder/Stop
ApplicationSchools; Office Buildings; Health Care Facilities; Retail Complexes
Sub-SeriesDC6413-689-M54
Function FamilyNon Hold Open Door Closer
Closer Hold-Openfalse
Finish FamilyAluminum

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareDC6413 689 M541-211 @ $452.28
