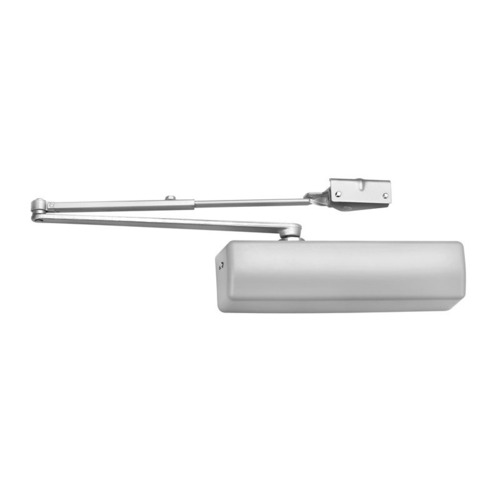

Corbin Russwin DC6210 A3 689 M54 DC6210 Series Surface Door Closer, Aluminum Painted

Assa Abloy . DC6210 A3 689 M54

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Manufacturer ParentAssa Abloy
CategoryIdL3Door Closer
CategoryL1Windows and Door Hardware
CategoryL2Door Closers and Accessories
DimensionUnitinch
Extra Product NameCorbin Russwin DC6210 A3 689 M54 DC6210 Series Surface Door Closer, Aluminum Painted
VoltageMechanical
atoms, moq, multiple, tierMinQty1, Package Qty1
color, Color, Finish Description, FinishAluminum Painted
height14.25
height_AttribCase Height
length15.0
length_AttribCase Length
MPNDC6210 A3 689 M54
qtyInStock-2
qtySourceFieldMap
tierPrice1498.52
width7.75
width_AttribCase Width
GradeANSI/BHMA Grade 1
CoverFull
TypeSurface
Hand, HandingNon-Handed
Color Code689/US28
Case Length15"
Screw TypeSelf Tapping
Mounting StyleTri Mount
Hold OpenWithout Hold Open
Bracket, Drop Plate, SpacerAvailable
Arm TypeDouble Lever Arm Regular
Fire Rated3 Hours {A}
Closer SizeAdj. 1 to 6
Package Height3.875"
Package Length13.75"
Package Volume392.9492188
Package Width7.375"
Back CheckAdjustable
Case Height14.25"
Case Volume1656.5625
Case Width7.75"
Cement Case, Special Rust InhibitorNo
Cold Weather Fluid, Physically Handicapped, Sealed Closer, Through BoltsYes
Mounting LocationPush or Pull Side
Special MarksFire rated 3 Hours {A}, Complies with ADA accessibility guidelines
Base MaterialVARIES
Spring Size1-6
FunctionA3-Heavy Duty Parallel Arm
Mount, Mounting TypeParallel Arm (Push Side)
Product TypeDoor Closer/Holder/Stop
Product Height2 Inch
Product Length11-5/8 Inch
Product Width2-3/4 Inch
ADA CompliantYES
Finish FamilyAluminum
Closer Arm ConstructionForged Steel
Product MaterialCast Iron
Closer CoverPlastic Cover
StandardsGrade 1 - ANSI/BHMA: A156.4, UL / ULC / UL10c
Closer Arm TypeHeavy-Duty Parallel Non-Hold Open
Closer FluidHigh Lubricity Extreme Temperature Hydraulic Fluid
Closer Piston Diameter1-3/8 Inch
Function FamilyNon Hold Open Door Closer
ApplicationSchools; Office Buildings; Health Care Facilities; Retail Complexes
Warranty25 Year limited warranty
Door Thickness1-3/4 inch
Door Size2' 4" to 4' 6" (Interior); 2' 6"to 4' (Exterior Out-Swinging)
Maximum Door Opening180?
Closer Hold-Openfalse
Sub-SeriesDC_Surface Mounted Closers_corbin_russwin_25

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareDC6210 A3 689 M541-211 @ $498.52
