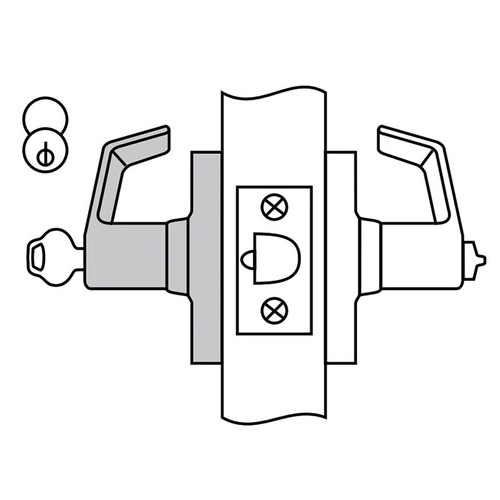

Corbin Russwin CL3851 NZD 613 CL6 CL3851 Entrance Lockset x IC, Oil Rubbed Dark Bronze

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Manufacturer ParentAssa Abloy
CategoryIdL3Mechanical Locksets
CategoryL1Windows and Door Hardware
CategoryL2Commercial and Residential Door Hardware
DimensionUnitinch
Extra Product NameCorbin Russwin CL3851 NZD 613 CL6 CL3851 Entrance Lockset x IC, Oil Rubbed Dark Bronze
atoms, moq, multiple, tierMinQty1, Package Qty1
color, ColorDark Oxidized Satin Bronze Oil Rubbed
height10.5
height_AttribCase Height
length15.5
length_AttribCase Length
MPNCL3851 NZD 613 CL6
qtyInStock-2
qtySourceFieldMap
tierPrice1300.48
width14.5
width_AttribCase Width
Thickness1-3/8" - 1-3/4"
Strike NumberSA114
Package Volume337.5
Latch Number600F04
Case Width14.5"
Function51-Entrance
Latch TypeDeadlocking
ANSI FunctionF109
HandNot Handed
GradeANSI/BHMA Grade 2
Fire Rated3 Hours {A}
Special MarksFull size/large format interchangeable core, Fire rated 3 Hours {A}
Strike Width1-1/4"
Latch Backset Dim2-3/4"
Cylinder TypeLFIC Less Core-Large Format Prep
Lock Face Size2-1/4" x 1-1/8"
Case Length15.5"
Package Height4.5"
ScrewsCombination
Case Height10.5"
Package Width7.5"
Bolt Protection1/2"
Case Volume2359.875
Color Code613/US10B
Strike TypeANSI Curved Lip
Rose/Escutcheon DesignD - Rose
Base MaterialBronze
Strike Height4-7/8"
Lever/Knob DesignNZ - Newport
Package Length10"
Finish, Finish DescriptionOil Rubbed Dark Bronze
Backset2-3/4 Inch
Lever StyleNZD-Newport
Rose/Escutcheon TrimRound Rose
Product TypeCylindrical Lock
StrikeANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
Projection2.8125
Lever Length4.5000
Door Thickness1-3/8" - 1-7/8"
Bore Size2.1250
ADA ApprovedFalse
ApplicationInterior Offices; Storage Closets; Restaurants; Retail Complexes
Warranty5 year limited
Handle TypeLever
Rose Diameter3-1/2 Inch
Latch Throw1/2 Inch
Door Cross Bore2.125 Inch
StandardsANSI/BHMA A156.2; Meets A117.1 Accessibility Code; Covers ANSI/DHI Door Prep A115.18 - 1994 "Spider Cut Out"
Cylinder Type UsedLarge Format Interchangeable Core With Less Core
Function DescriptionPushing and turning button on inside locks outside knob/lever requiring use of a key until button is manually unlocked.
Front Size2-1/4" x 1-1/8" x 1"
Function FamilyEntry/Entrance/Office
Strike Lip1-1/4 Inch
Product Projection2-13/16 Inch
Trim MaterialSolid Cast Zinc (Lever); Brass (Rose)
FeaturesLever Release (TM) for Vandal Resistance; Solid Cast Levers; UL 3-Hour Fire Rating; Independent Lever Return Springs; Through-Bolts on Door for Solid Attachment
ADA CompliantYES
Finish FamilyDark Bronze
Strike Size4-7/8" x 1-1/4" x 1-1/4"
Cylinder MaterialBrass
Lever Length-Inches4.50 Inch
Latch CornerSquare
Knob/Lever Size4-1/2 Inch
Lever Style FamilyStraight Return Lever
Sub-SeriesCL_Cylindrical_Locks_corbin_russwin_326
