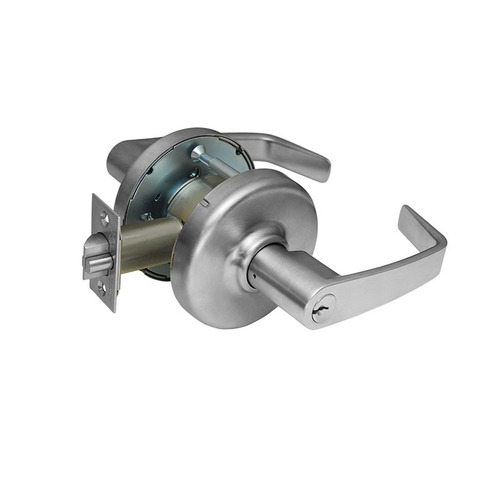

Corbin Russwin CL3361 NZD 626 CL3361 Entrance Lockset, Satin Chrome

Assa Abloy . CL3361 NZD 626

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Manufacturer Parent, Label, Man, Publisher, StudioAssa Abloy
CategoryIdL3Mechanical Locksets
CategoryL1Windows and Door Hardware
CategoryL2Commercial and Residential Door Hardware
DimensionUnitinch
Extra Product NameCorbin Russwin CL3361 NZD 626 CL3361 Entrance Lockset, Satin Chrome
atoms, moq, multiple, tierMinQty1, Package Qty, Case, NumberOfItems, PackageQuantity1
color, Finish Description, Finish, Finish FamilySatin Chrome
height10.5
height_AttribCase Height
length15.5
length_AttribCase Length
MPN, Part Number, Model, PartNumberCL3361 NZD 626
qtyInStock-2
qtySourceFieldMap
tierPrice1630.42
width14.5
width_AttribCase Width
Product GroupBISS
Thickness, Door Thickness1-3/4" - 2"
Strike NumberSA114
Package Volume337.5
Latch Number586F17
ColorSatin Chrome Chrome
Case Width14.5"
Function61-Entrance
Latch TypeDeadlocking
ANSI FunctionF82A
HandNot Handed
GradeANSI/BHMA Grade 1
Fire Rated3 Hours {A}
Special MarksFire rated 3 Hours {A}, Complies with ADA accessibility guidelines
Strike Width1-1/4"
Latch Backset Dim2-3/4"
Lock Face Size, Front Size2-1/4" x 1-1/8"
Case Length15.5"
Package Height4.5"
ScrewsCombination
Case Height10.5"
Package Width7.5"
Bolt Protection1/2"
Case Volume2359.875
Color Code626/US26D
Strike TypeANSI Curved Lip
Rose/Escutcheon DesignD - Rose
Base MaterialBrass or Bronze
Strike Height4-7/8"
Lever/Knob DesignNZ - Newport
Package Length10"
StrikeANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
Cylinder TypeConventional Cylinder
Lever StyleNZD-Newport
Keyblank GroupingCRRS-L4-6-1
Rose/Escutcheon TrimRound Rose
Product TypeCylindrical Lock
Backset2-3/4 Inch
KeywayCorbin Russwin L4
Projection2.8125
Lever Length4.5000
ADA ApprovedFalse
Keying ChargesCCAM
Bore Size2.1250
ApplicationSchools and Universities; Hospitals; Corporate Campuses; Government/Municipal Buildings; Commercial Buildings
Warranty7 Year Limited
Handle TypeLever
Rose Diameter3-1/2 Inch
Latch Throw1/2 Inch
ADA CompliantYES
Keying TypeKeyed Random
Strike Size4-7/8" x 1-1/4" x 1-1/4"
Cylinder MaterialBrass
StandardsANSI/BHMA A156.2; Meets A117.1 Accessibility Code; Covers ANSI/DHI Door Prep A115.18; UL/cUL Listed
Cylinder Type UsedConventional
Function DescriptionPush button locking. Deadlocking latch bolt by knobs/levers except when outside knob/lever is locked by button inside or in face (edge). Inside knob/lever always free.
Function FamilyEntry/Entrance/Office
Strike Lip1-1/4 Inch
Product Projection2-13/16 Inch
Trim MaterialSolid Cast Zinc (Lever); Brass (Rose)
FeaturesVandal Resistance; Allowing the Outside Lever to Rotate when in the Locked Position; EZ-Install Components Significantly Reduce Installation Time; Pyramid Cylinders for Increased Security
Lever Length-Inches4.50 Inch
Latch CornerSquare
Knob/Lever Size4-1/2 Inch
Latch Bolt MaterialStainless Steel
Lever Style FamilyStraight Return Lever
Sub-SeriesCL3361-NZD-626
Door Cross Bore2.125 Inch
ASIN, AsinB00MBGM4SW
Amount619.00
BindingMisc.
BrandCorbin Russwin
CatIndustrial & Scientific
CatId16310091
CatTree10773802011 10773891011 10773927011 16310091 16310161
CurrencyCodeUSD
FeatureEntry or office function
Height4.5 50
IsBrandQueryTrue
Length10
MaterialTypeStainless Steel, Dichromated Zinc
ProductCategoryId573760011 home_improvement_display_on_website
ProductGroupBISS BISS Basic
ProductTypeNameHARDWARE_HANDLE LOCK MECHANICAL_COMPONENTS
Rank1669033 2069689 2075245 2079768 2263379 5192 6247 6255 6380 6987
SkuCORBIN CL3361 NZD 626 CORBIN RUSSWIN CL3361 NZD 626
TitleCorbin Russwin CL3361 NZD 626 Extra Heavy-Duty Entry or Office Function Cylindrical Lockset, Grade 1, Newport Lever Design, L4 Standard Keyway, Satin Chrome
URLhttps://m.media-amazon.com/images/I/316eoLBCEjL._SL75_.jpg
Unitsinches pixels pounds
Weight7
Width75 8

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareCL3361 NZD 6261-211 @ $630.42
