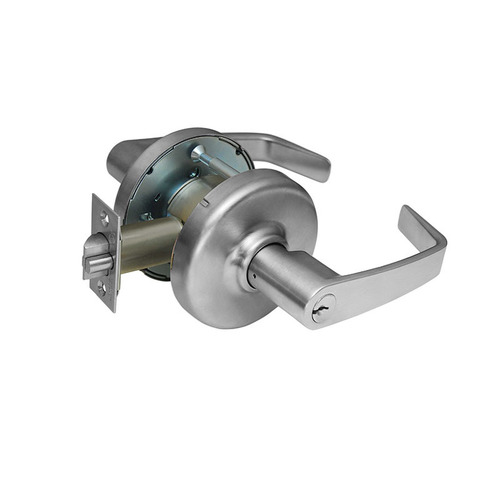

Corbin Russwin CL3332 NZD 626 CL3332 Institution Lockset, Satin Chrome

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Manufacturer ParentAssa Abloy
CategoryIdL3Mechanical Locksets
CategoryL1Windows and Door Hardware
CategoryL2Commercial and Residential Door Hardware
DimensionUnitinch
Extra Product NameCorbin Russwin CL3332 NZD 626 CL3332 Institution Lockset, Satin Chrome
atoms, moq, multiple, tierMinQty1, Package Qty1
color, Color, Finish Description, Finish, Finish FamilySatin Chrome
height10.5
height_AttribCase Height
length15.5
length_AttribCase Length
MPN, Alternate Part Number-1182008
qtyInStock-2
qtySourceFieldMap
tierPrice1632.76
width14.5
width_AttribCase Width
Thickness, Door Thickness1-3/4" - 2"
Strike NumberSA114
Package Volume337.5
Latch Number586F17
Case Width14.5"
Function32-Institution/Utility
Latch TypeDeadlocking
ANSI FunctionF87
HandNot Handed
GradeANSI/BHMA Grade 1
Fire Rated3 Hours {A}
Special MarksFire rated 3 Hours {A}, Complies with ADA accessibility guidelines
Strike Width1-1/4"
Latch Backset Dim2-3/4"
Lock Face Size, Front Size2-1/4" x 1-1/8"
Case Length15.5"
Package Height4.5"
ScrewsCombination
Case Height10.5"
Package Width7.5"
Bolt Protection1/2"
Case Volume2359.875
Color Code626/US26D
Strike TypeANSI Curved Lip
Rose/Escutcheon DesignD - Rose
Base MaterialBrass or Bronze
Strike Height4-7/8"
Lever/Knob DesignNZ - Newport
Package Length10"
StrikeANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
Cylinder TypeConventional Cylinder
Lever StyleNZD-Newport
Keyblank GroupingCRRS-L4-6-1
Rose/Escutcheon TrimRound Rose
Product TypeCylindrical Lock
Backset2-3/4 Inch
KeywayCorbin Russwin L4
Projection2.8125
Lever Length4.5000
ADA ApprovedFalse
Keying ChargesCCAM
Bore Size2.1250
ApplicationSchools and Universities; Hospitals; Corporate Campuses; Government/Municipal Buildings; Commercial Buildings
Warranty7 Year Limited
Handle TypeLever
Rose Diameter3-1/2 Inch
Latch Throw1/2 Inch
ADA CompliantYES
Keying TypeKeyed Random
Strike Size4-7/8" x 1-1/4" x 1-1/4"
Cylinder MaterialBrass
StandardsANSI/BHMA A156.2; Meets A117.1 Accessibility Code; Covers ANSI/DHI Door Prep A115.18; UL/cUL Listed
Cylinder Type UsedConventional
Function DescriptionDeadlocking latch bolt operated by key in lever from either side. Both levers are always inoperable.
Function FamilyAsylum/Institution/Utility
Strike Lip1-1/4 Inch
Product Projection2-13/16 Inch
Trim MaterialSolid Cast Zinc (Lever); Brass (Rose)
FeaturesVandal Resistance; Allowing the Outside Lever to Rotate when in the Locked Position; EZ-Install Components Significantly Reduce Installation Time; Pyramid Cylinders for Increased Security
Lever Length-Inches4.50 Inch
Latch CornerSquare
Knob/Lever Size4-1/2 Inch
Latch Bolt MaterialStainless Steel
Lever Style FamilyStraight Return Lever
Sub-SeriesCL_Cylindrical_Locks_corbin_russwin_68
Door Cross Bore2.125 Inch

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareCL3332 NZD 6261-211 @ $632.76
