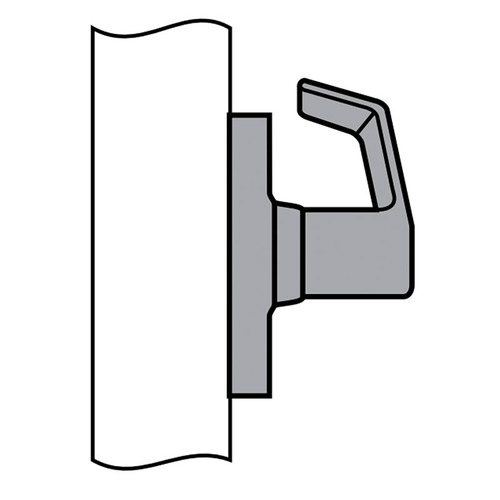

Corbin Russwin CL3850 NZD 626 CL3850 Half Dummy, Satin Chrome

Assa Abloy . 172719

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Manufacturer ParentAssa Abloy
CategoryIdL3Mechanical Locksets
CategoryL1Windows and Door Hardware
CategoryL2Commercial and Residential Door Hardware
DimensionUnitinch
Extra Product NameCorbin Russwin CL3850 NZD 626 CL3850 Half Dummy, Satin Chrome
atoms, moq, multiple, tierMinQty1, Package Qty1
height10.5
height_AttribCase Height
length15.5
length_AttribCase Length
MPN, Alternate Part Number-1172719
qtyInStock-2
qtySourceFieldMap
tierPrice1110.57
width14.5
width_AttribCase Width
Finish, Finish Description, Finish FamilySatin Chrome
Function50-Half Dummy
DesignNewport Lever and D Rose
Thickness1-3/8" - 1-3/4"
Package Volume337.5
Case Width14.5"
HandNot Handed
GradeANSI/BHMA Grade 2
Fire Rated3 Hours {A}
Special MarksFire rated 3 Hours {A}
Case Length15.5"
Package Height4.5"
ScrewsCombination
Case Height10.5"
Package Width7.5"
Case Volume2359.875
Color Code626/US26D
Rose/Escutcheon DesignD - Rose
Base MaterialBrass or Bronze
Lever/Knob DesignNZ - Newport
Package Length10"
ADA ApprovedFalse
Strike NumberSA114
Bore Size2.1250
Door Thickness1-3/8" - 1-7/8"
Lever Length4.5000
Projection2.8125
Product TypeCylindrical Lock
Rose/Escutcheon TrimRound Rose
Lever StyleNZD-Newport
Lever Length-Inches4.50 Inch
Knob/Lever Size4-1/2 Inch
Lever Style FamilyStraight Return Lever
Sub-SeriesCL_Cylindrical_Locks_corbin_russwin_317
Handle TypeLever
Rose Diameter3-1/2 Inch
ApplicationInterior Offices; Storage Closets; Restaurants; Retail Complexes
Warranty5 year limited
ADA CompliantYES
Door Cross Bore2.125 Inch
StandardsANSI/BHMA A156.2; Meets A117.1 Accessibility Code; Covers ANSI/DHI Door Prep A115.18 - 1994 "Spider Cut Out"
Function FamilyDummy
Product Projection2-13/16 Inch
Trim MaterialSolid Cast Zinc (Lever); Brass (Rose)
FeaturesLever Release (TM) for Vandal Resistance; Solid Cast Levers; UL 3-Hour Fire Rating; Independent Lever Return Springs; Through-Bolts on Door for Solid Attachment

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareCL3850 NZD 6261-211 @ $110.57
