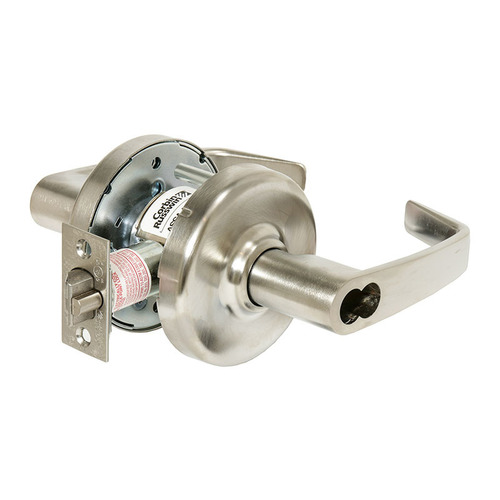

Corbin Russwin CL3851 NZD 626 M08 CL3851 Entrance Lockset x IC, Satin Chrome

Assa Abloy . CL3851 NZD 626 M08

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Manufacturer ParentAssa Abloy
CategoryIdL3Mechanical Locksets
CategoryL1Windows and Door Hardware
CategoryL2Commercial and Residential Door Hardware
DimensionUnitinch
Extra Product NameCorbin Russwin CL3851 NZD 626 M08 CL3851 Entrance Lockset x IC, Satin Chrome
atoms, moq, multiple, tierMinQty1, Package Qty1
height10.5
height_AttribCase Height
length15.5
length_AttribCase Length
MPNCL3851 NZD 626 M08
qtyInStock-2
qtySourceFieldMap
tierPrice1288.58
width14.5
width_AttribCase Width
Finish, Finish Description, Finish FamilySatin Chrome
Function51-Entrance
DesignNewport Lever and D Rose
StrikeANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
Backset2-3/4 Inch
Thickness1-3/8" - 1-3/4"
Strike NumberSA114
Package Volume337.5
Latch Number600F04
Case Width14.5"
Latch TypeDeadlocking
ANSI FunctionF109
HandNot Handed
GradeANSI/BHMA Grade 2
Fire Rated3 Hours {A}
Special MarksSmall format interchangeable core, Fire rated 3 Hours {A}
Strike Width1-1/4"
Latch Backset Dim2-3/4"
Cylinder TypeSFIC Less Core-Small Format Prep
Lock Face Size2-1/4" x 1-1/8"
Case Length15.5"
Package Height4.5"
ScrewsCombination
Case Height10.5"
Package Width7.5"
Bolt Protection1/2"
Case Volume2359.875
Color Code626/US26D
Strike TypeANSI Curved Lip
Rose/Escutcheon DesignD - Rose
Base MaterialBrass or Bronze
Strike Height4-7/8"
Lever/Knob DesignNZ - Newport
Package Length10"
Lever StyleNZD-Newport
Rose/Escutcheon TrimRound Rose
Product TypeCylindrical Lock
ADA ApprovedFalse
Bore Size2.1250
Door Thickness1-3/8" - 1-7/8"
Lever Length4.5000
Projection2.8125
Door Cross Bore2.125 Inch
StandardsANSI/BHMA A156.2; Meets A117.1 Accessibility Code; Covers ANSI/DHI Door Prep A115.18 - 1994 "Spider Cut Out"
Cylinder Type UsedSmall Format Interchangeable Core
Function DescriptionPushing and turning button on inside locks outside knob/lever requiring use of a key until button is manually unlocked.
Front Size2-1/4" x 1-1/8" x 1"
Function FamilyEntry/Entrance/Office
Strike Lip1-1/4 Inch
Product Projection2-13/16 Inch
Trim MaterialSolid Cast Zinc (Lever); Brass (Rose)
FeaturesLever Release (TM) for Vandal Resistance; Solid Cast Levers; UL 3-Hour Fire Rating; Independent Lever Return Springs; Through-Bolts on Door for Solid Attachment
ADA CompliantYES
Strike Size4-7/8" x 1-1/4" x 1-1/4"
Cylinder MaterialBrass
Lever Length-Inches4.50 Inch
Latch CornerSquare
Knob/Lever Size4-1/2 Inch
Lever Style FamilyStraight Return Lever
Sub-SeriesCL3851-NZD-626-M08
ApplicationInterior Offices; Storage Closets; Restaurants; Retail Complexes
Warranty5 year limited
Handle TypeLever
Rose Diameter3-1/2 Inch
Latch Throw1/2 Inch

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareCL3851 NZD 626 M081-211 @ $288.58
