ICC ICMPP0486B 48-Port CAT 6A 2 Rack Mount Space Patch Panel | 123 Security Products

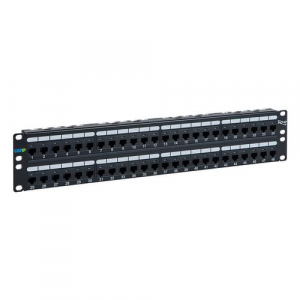

ICC’s Category 6A 2U 48-port, 110-type UTP, 10G Patch Panel is component compliant to ANSI/TIA Category 6A connecting hardware requirements. The vertical 110-type insulation displacement connectors (IDCs) are designed to provide optimum permanent and channel link performance and reduce potential Alien Crosstalk (ANXT). Jacks are grouped in six-port modules for quick administration and easy labeling. The high-density design occupies 2 rack mount space (RMS) and measures 19″ x 3.50″.FeaturesVertical 110-Type IDC connections reduces potential Alien Crosstalk.Enhanced crosstalk cancellation and reduced return loss.Exceeds ANSI/TIA-568 CAT 6A (10G) connecting hardware Component Rating.110-Type IDC termination help reduces installation time and improves wire retention.50 micro-inch gold plating on all modular contacts to protect from corrosion.2 rack mount spaces (RMS); Mounts on industry-standard 19″ wide racks.T568A or T568B wiring schemes; not compatible with 110-type patch plugs.UL Listed.SpecificationsEnvironmental conditions: Temperature range storage: -40° to 70°c Operational: -10° to 60°c relative humidity (operational): Maximum noncondensing 93%Electrical: Electrical Insulation resistance: 500 mohms min @ 100v DC Dielectric Withstanding Voltage: 1000v DC or AC peak Contact @ 60hz for 1 minute Spring Wire Contact Resistance: 20 mohms max. IDC Contact Resistance: 2.5 mohms max.Mechanical: Retention: 50n (11 lbs sq) or 60s±5s Insertion/extractor: 750 cycles min. IDC Wire Guage: 22~24 AWGPhysical: Housing: Zinc alloy fully shielded Marking: Mold UL information Spring Wire: Phosphor Bronze alloy plated with 50 micro-inch
