Return Actuator,24V,Non-Spring,70in-lb.

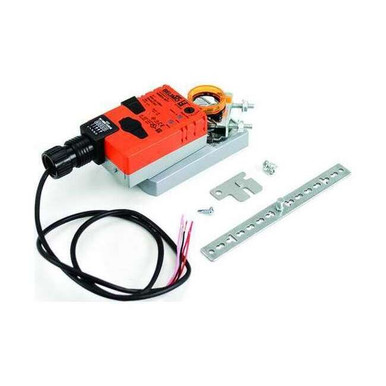

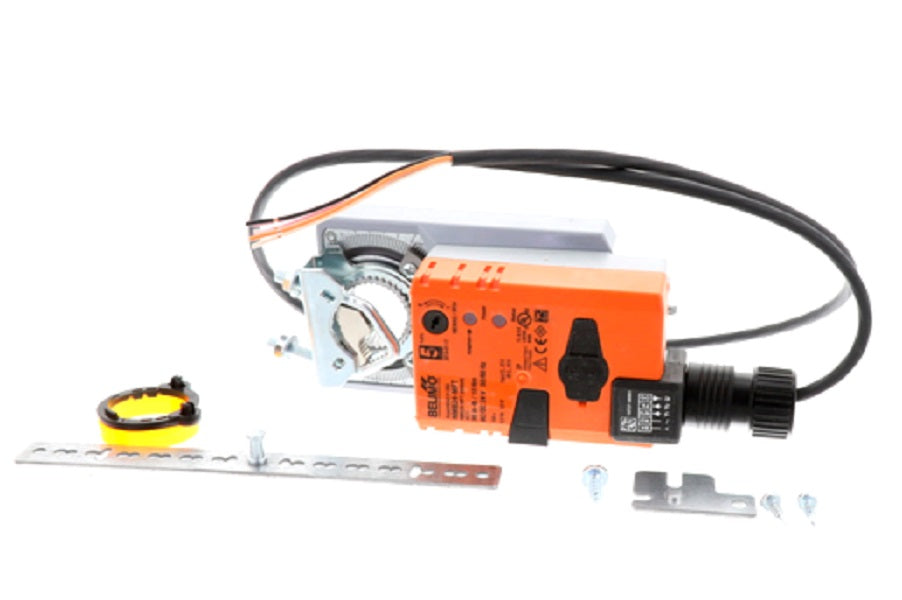

For the proportional modulation of dampers in HVAC systems, this BELIMO return actuator, 24V, non-spring, 70-lb. is mounted directly to a damper shaft up to 1.05” dia. by means of its universal clamp, 1/2” self centered default. Actuator uses a sensorless brushless DC motor that’s controlled by an Application Specific Integrated Circuit (ASIC). The ASIC can monitor and control the actuator’s rotation and it provides a digital rotation sensing (DRS) function to prevent damage to the actuator in a stall condition. This listing is for each. Technical Specification Item Return Actuator, 24V, Non-Spring, 70-lb. Spring Return No Shaft Type 1/2 in to 1-3/64 in Round or 13/32 in to 1-3/64 in Square Torque 90 in-lb Stroke Deg. 0 to 95 Height 7 45/64 in Width 3 5/32 in Depth 2 27/64 in Signal Type MFT Motor Direction CW or CCW Ambient Temp. Range -22 Degrees to 122 Degrees F Timing 150 sec Voltage 24V AC/DC Power Rating 3.5W This item is restricted for international sale.
