BELIMO . NFB24-SR

NFB24-SR- Belimo 24 V Actuator SR, Modulating Control 2-10

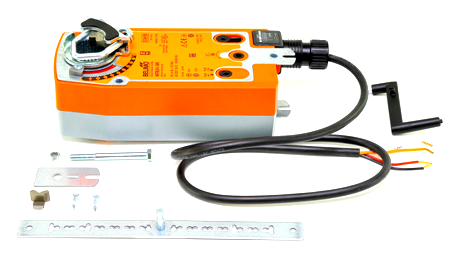

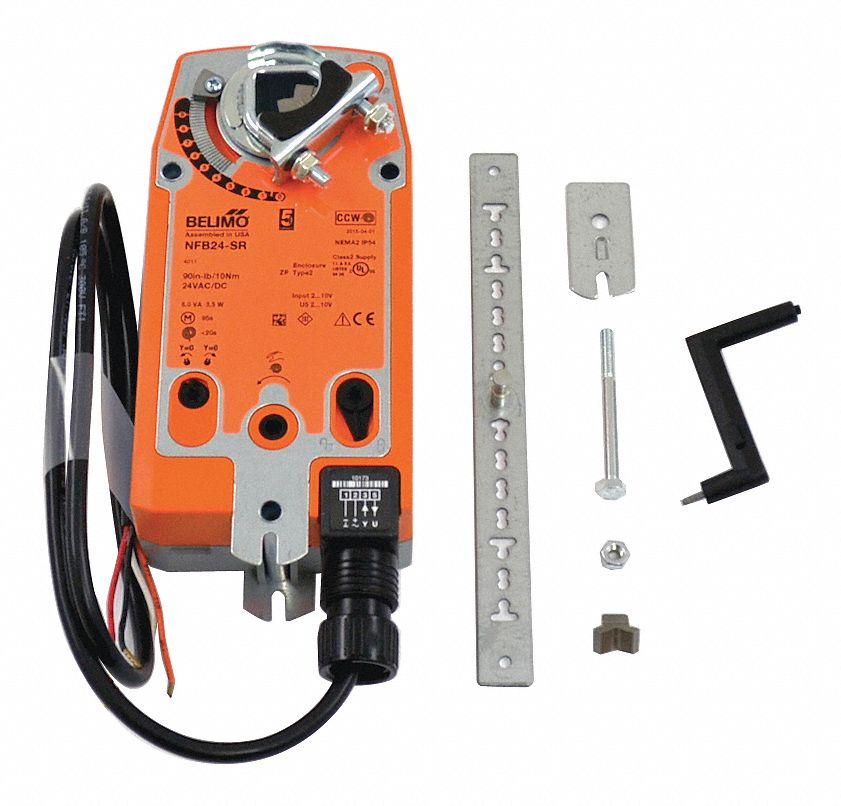

Designed for fail safe, modulating damper control in HVAC systems, this BELIMO spring return damper actuator (24VAC/DC) provides true spring return operation for reliable fail-safe application and positive close-off on air tight dampers. The spring return system can provide consistent torque to the damper with, and without, power applied to the actuator. Model can provide up to 95° of rotation and is provided with a graduated position indicator displaying 0° to 95°. Model uses a brushless DC motor controlled by an Application Specific Integrated Circuit (ASIC) and a microprocessor. The microprocessor device provides data to the ASIC in order to provide a constant rotation rate and to determine the actuator’s exact fail-safe position. The ASIC controls and monitors the DC motor’s rotation and provides a digital rotation sensing function to prevent damage to the actuator in a stall condition. The actuator may be stalled anywhere in its normal rotation without the need for mechanical end switches.<br /><br /> Item: Spring Return Damper Actuator, 24VAC/DC<br /> Spring Return: Yes<br /> Shaft Type: 1/2" to 1-3/64" Round or 13/32" to 1-3/64" Square<br /> Torque: 90 in.-lb.<br /> Stroke Deg.: 0 to 95<br /> Height: 9-11/16"<br /> Width: 3-5/32"<br /> Depth: 3-27/64"<br /> Signal Type: Proportional<br /> Motor Direction: CW or CCW<br /> Ambient Temp. Range: -22 Degrees to 122 Degrees F<br /> Timing: 95 sec.<br /> Voltage: 24VAC/DC<br /> Power Rating: 3.5W<br /> Includes: Mounting Hardware<br />
