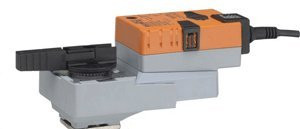

LRB24-SR - Belimo Rotary Actuator 24V 45 in-lb 2-10V, 1m cable Non Spring Return

Designed for the proportional modulation of dampers in HVAC systems, this BELIMO non-spring return damper actuator mounts directly to a damper shaft. Model has a reversible motor with built in switch and does not require any limit switches, but is electronically protected against overload. Overload protection: electronic throughout 0° to 90° rotation Housing: NEMA 2, IP42, UL Enclosure Type 2 This listing is for each. 24 VOLT MAX. AC VOLTAGE 24 VOLT MAX. DC VOLTAGE 50/60 HERTZ FREQUENCY RATING NON-SPRING RETURN, NON-FAIL SAFE OPERATION TYPE UL (CANADA AND US), UL 60730, CE, CAN/CSA E60730, ISO 9001 APPROVAL CONTROL VALVE APPLICATION 24 VOLT AC/DC VOLTAGE RATING NEMA 2, IP54 ENCLOSURE 1.5 WATT (RUNNING), 0.4 WATT (HOLDING), 3 VOLT AMP (TRANSFORMER) POWER RATING 2 TO 10 VOLT OUTPUT SIGNAL 90 DEGREE ANGLE OF ROTATION 3 FOOT 18 AWG PLENUM CABLE WITH 1/2 INCH CONDUIT CONNECTOR SUPPLY CONNECTION SIZE TRANSFORMER TYPE CLASS 2 CONTROL TYPE MODULATING HUMIDITY RATING 95 PERCENT RH (NON-CONDENSING) OPERATING RANGE 2 TO 10 VOLT INPUT IMPEDANCE 100 KILO OHM TEMPERATURE RATING -22 TO 122 DEG F (AMBIENT), -40 TO 176 DEG F (STORAGE) LRB MODEL
