Where can I buy UCFU-1.7/16MFG1?

UCFU-1.7/16MFG1 is available from Zoro, Grainger, Raptor Supplies, AmazonSC, Misumi USA. See pricing comparison above.

What is the price of UCFU-1.7/16MFG1?

Pricing ranges from $91.01 to $278.22 depending on quantity and distributor.

Is UCFU-1.7/16MFG1 in stock?

Yes, UCFU-1.7/16MFG1 is currently in stock at multiple distributors with immediate availability.

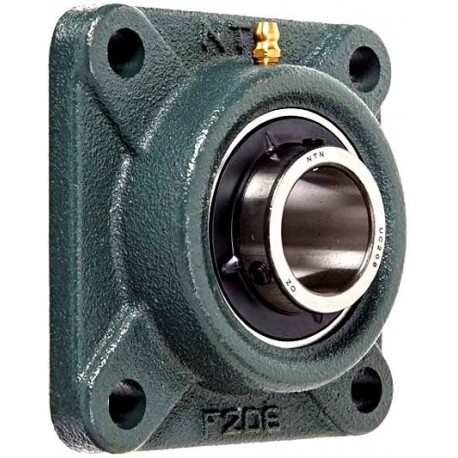

4 Bolt Flange Bearing, Back Side to Center Width 0.827 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 7/16 in, Bore Type Cylindrical, Closure Double Sealed, Housing Material Cast Iron, Housing Type Square, Included Bearing A-UC207-107D1/LP09M, Lubricant Material NLGI #3 Equivalent, Maximum Speed 4,200 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Mount Hole Center-to-Center Height 3.625 in, Number of Mount Holes 4

Name: 4 Bolt Flange Bearing, Back Side to Center Width 0.827 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 7/16 in, Bore Type Cylindrical, Closure Double Sealed, Housing Material Cast Iron, Housing Type Square, Included Bearing A-UC207-107D1/LP09M, Lubricant Material NLGI #3 Equivalent, Maximum Speed 4,200 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Mount Hole Center-to-Center Height 3.625 in, Number of Mount Holes 4
Brand: Ntn
Price: 116.99 USD
Availability: OutOfStock

Gallery

Attributes

Brand name, Manufacturer name	Ntn
Manufacturer	Ntn NTN
CategoryId, CategoryIdL3	7699
CategoryIdL1	31
CategoryIdL2	17014
CategoryL1	Power Transmission
CategoryL2	Bearings, V-belts & Power Transmission Equipment
CategoryL3	Pillow Block & Flange Bearings
CategoryL4	Flange Bearings
DimensionUnit	inch
GTIN, UPC	None
GraingerSku	35JF44
UnitOfMeasure	EA
Weight	3.75 4.0 4.00
WeightUnit	lbs
cali_prop65_orglabel, cali_prop65_whtlabel, AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligible	False
countryOfOrigin	JP
height	5
jsonUrlData	924526ffbdad25e5923b
length	4.9
moq, multiple, tierMinQty1, Item_package_quantity, NumberOfItems, Number_of_items, PackageQuantity	1
MPN, Mpns, PartNumber, Part_number	UCFU-1.7/16MFG1
qtyInStock	0
qtyInStockOverride	Drop Ship
SKU	G9468812
tierPrice1	116.99
url	https://www.zoro.com/ntn-flange-bearing-4-bolt-ball-1-716-bore-ucfu-1716mfg1/i/G9468812/
width	2.1
Bore Dia, Bore Diameter	1 7/16 in
Bolt Size	7/16 in
Overall Height	1 53/64 in
Overall Width, Overall Length	4 21/32 in
Mount Hole Size	33/64 in
Mount Hole Center-to-Center Height, Mount Hole Center-to-Center Length	3.625 in
Back Side to Center Width	0.827 in
Mounting Bolt Size	1/2 in
Bearing Insert Type	Ball
Shaft Locking Type	Set Screws
Bearing Housing Material Type	Cast Iron
Bearing Insert Material	52100 Chrome Steel
Bolt Hole Center-to-Center	3 5/8 in
Series	Standard Duty with Food Grade Solid Lubrication, Set Screw
Finish	black oxide
Locking Type	Set Screw
Dynamic Load Capacity	5,750 lb
Housing Material	Cast iron
Temp Range	-10 Degrees to 95 Degrees C
Static Load Capacity	3,440 lb
Bearing Lubrication	Shell Alvania #3 or NLGI #3 Equivalent
ASIN, Asin	B01IWHBHK4
Binding	Misc.
Brand, Label, Publisher, Studio	NTN
Bullet_point	<b>Bearing Insert Material</b>: 52100 Chrome Steel <b>Finish</b>: black oxide <b>Bearing Insert Type</b>: Ball <b>Locking Type</b>: Set Screw <b>Dynamic Load Capacity</b>: 5750 lb. <b>Country of Origin (subject to change)</b>: Japan <b>Price For:</b> Each <b>Series</b>: Standard Duty with Food Grade Solid Lubrication, Set Screw <b>Bearing Lubrication</b>: Shell Alvania #3 or NLGI #3 Equivalent <b>Static Load Capacity</b>: 3440 lb. <b>Overall Width</b>: 4-21/32" <b>Bore Dia.</b>: 1-7/16" <b>Overall Length</b>: 4-21/32" <b>Overall Height</b>: 1-53/64" <b>Housing Material</b>: Cast iron <b>Temp. Range</b>: -10 Degrees to 95 Degrees C <b>Bolt Size</b>: 7/16" <b>Item</b>: 4-Bolt Flange Bearing
ClassificationId	220004011
DisplayName	Flange Block Bearings
Height	1000 26 5.0 5.00 500 75
Identifier	4547359864175
IdentifierType	EAN
ItemClassification	BASE_PRODUCT
ItemName, Item_name, Title	Flange Bearing, 4-Bolt, Ball, 1-7/16" Bore
Item_type_keyword	flange-block-bearings
Item_weight	4.0
Keyword	750
Length	4.9 4.90
Link	https://m.media-amazon.com/images/I/41UqV2wT38L._SL75_.jpg https://m.media-amazon.com/images/I/41UqV2wT38L.jpg https://m.media-amazon.com/images/I/51+fdwNiPHL.jpg
Material, MaterialType	Alloy Steel
ProductGroup, WebsiteDisplayGroupName	BISS Basic
ProductType	HARDWARE_BEARING
ProductTypeName	ELECTRONIC_COMPONENT HARDWARE_BEARING
Product_description	'Flange Mount Bearing, Number of Bolts 4, Ultra-Class 4-Bolt Flange Series, Bore Dia. 1-7/16 In., Permanently Lubricated Maintenance-Free Bearing Type, Steel Bearing Material, Cast Iron Housing Material, Set Screw Locking Type, Mounting Hole Center 3-5/8 In., Overall Height 1-53/64 In., Overall Width 4-21/32 In., Overall Length 4-21/32 In., Bolt Hole Size 33/64 In., Ball Bearing Insert, Dynamic Load Capacity 5,750 lb., Static Load Capacity 3,440 lb., Temp. Range -10 Degrees to 95 Degrees C'
Product_site_launch_date	2016-09-10T12:00:00.000-08:00
StrippedMpns	UCFU1.716MFG1
Supplier_declared_dg_hz_regulation	unknown
Type	ean
URL	https://m.media-amazon.com/images/I/31RuNrCGgxS._SL75_.jpg https://m.media-amazon.com/images/I/41UqV2wT38L._SL75_.jpg
Unit	inches pounds
Units	inches pixels pounds
Variant	MAIN
WebsiteDisplayGroup	biss_basic_display_on_website
Width	1000 2.1 2.10 500 75

Distributor offers

Seller	SKU	MOQ	In stock	Multiple	Prices
Zoro	G9468812	1		1	1 @ $116.99
Grainger	35JF44	1		1
Raptor Supplies	AG4ZNK	1		1	1 @ $278.22
AmazonSC	B01IWHBHK4	1		1
Misumi USA	UCFU-1.7/16MFG1	1		1
motionindustries.com	06225314	1		1	1 @ $185.44
apexindustrialautomation.com	UCFU-1.7/16MFG1	1		1
industrialzone.com	UCFU-1.7/16MFG1	3	Please Call or Email	1	1 @ $91.01

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Flange Bearing, 4-Bolt, Ball, 1-7/16" Bore

Brand: NTN

'Flange Mount Bearing, Number of Bolts 4, Ultra-Class 4-Bolt Flange Series, Bore Dia. 1-7/16 In., Permanently Lubricated Maintenance-Free Bearing Type, Steel Bearing Material, Cast Iron Housing Material, Set Screw Locking Type, Mounting Hole Center 3-5/8 In., Overall Height 1-53/64 In., Overall Width 4-21/32 In., Overall Length 4-21/32 In., Bolt Hole Size 33/64 In., Ball Bearing Insert, Dynamic Load Capacity 5,750 lb., Static Load Capacity 3,440 lb., Temp. Range -10 Degrees to 95 Degrees C'

Details

Price For: Each Series: Standard Duty with Food Grade Solid Lubrication, Set Screw Bearing Lubrication: Shell Alvania #3 or NLGI #3 Equivalent Static Load Capacity: 3440 lb. Overall Width: 4-21/32" Bore Dia.: 1-7/16" Overall Length: 4-21/32" Overall Height: 1-53/64" Housing Material: Cast iron Temp. Range: -10 Degrees to 95 Degrees C Bolt Size: 7/16" Item: 4-Bolt Flange Bearing
Bearing Insert Material: 52100 Chrome Steel Finish: black oxide Bearing Insert Type: Ball Locking Type: Set Screw Dynamic Load Capacity: 5750 lb. Country of Origin (subject to change): Japan

Listing

Binding	Misc.
Product group	BISS Basic
Product type	ELECTRONIC_COMPONENT
Part number	UCFU-1.7/16MFG1
Items per pack	1
Label	NTN
Manufacturer	NTN
