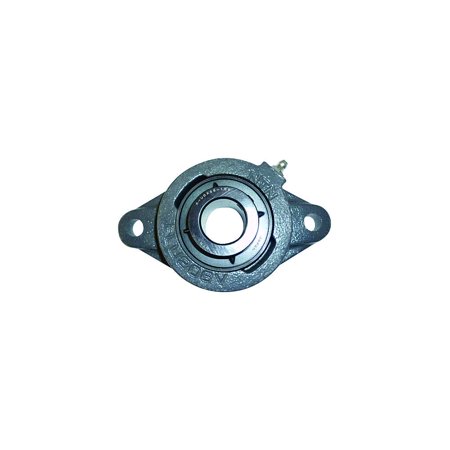

Flange Bearing,2-Bolt,Ball,1-7/16" Bore

Mounted Ball Bearings Temp. range: -20° to 250°F Feature cast-iron housings. Elastomeric seal with flinger preserves lubricant and keeps contaminants out. Ultra-Class units have solid base construction for optimum load and shock stability and black oxide coating for superior environmental protection. This listing is for each. Technical Specification Item 2-Bolt Flange Bearing Mounted Bearing Item 2-Bolt Flange Bearing Bearing Insert Type Ball Bore Dia. 1 7/16 in Shaft Locking Type Set Screw Bearing Housing Material Type Cast Iron Bearing Insert Material 52100 Chrome Steel Bolt Hole Center-to-Center 5 21/32 in Series Medium Duty Bolt Size 7/16 in Overall Height 2 9/64 in Overall Width 4 1/8 in Overall Length 6 25/32 in Bearing Lubrication Shell Alvania #3 or NLGI #3 Equivalent Dynamic Load Capacity 6, 550 lb Static Load Capacity 4, 000 lb Temp. Range -20 Degrees to 250 Degrees F Finish Painted Dimension A 1 17/32 in Dimension Ao 2 9/64 in Dimension B 1 15/16 in Dimension D 1 1/16 in Dimension H 6 25/32 in Dimension J 5 21/32 in Dimension L 4 1/8 in Dimension N 33/64 in Dimension S 3/4 in
