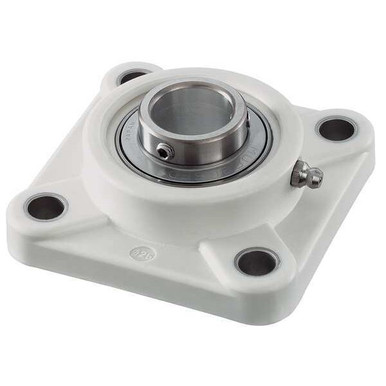

Flange Bearing,4-Bolt,Ball,1" Bore

Ntn . SUCFPL205-16

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerNtn
CategoryId, CategoryIdL37699
CategoryIdL131
CategoryIdL217014
CategoryL1Power Transmission
CategoryL2Bearings, V-belts & Power Transmission Equipment
CategoryL3Pillow Block & Flange Bearings
CategoryL4Flange Bearings
DimensionUnitinch
GraingerSku5ZMY1
Extra Product NameFlange Bearing,4-Bolt,Ball,1" Bore
UPCNone
UnitOfMeasureEA
Weight0.84
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginZZ
height1.9
jsonUrlData924526ffbdad25e5923b
length5
moq, multiple, tierMinQty11
MPNSUCFPL205-16
qtyInStock32
qtyInStockOverride-2
SKUG1737032
tierPrice1167.99
urlhttps://www.zoro.com/ntn-flange-bearing-4-bolt-ball-1-bore-sucfpl205-16/i/G1737032/
width4.9
Bore Dia, Bore Diameter1 in
Bolt SizeM10
Overall Height, Overall Length95 mm
Dimension G9/16 in
Dimension S7/16 in
Dimension A3 3/4 in
Dimension E, Mount Hole Center-to-Center Length, Mount Hole Center-to-Center Height2 3/4 in
Dimension B1 11/32 in
Overall Width36.8 mm
Mount Hole Size0.433 in
Mounting Bolt Size3/8 in
Back Side to Center Width0.669 in
Bearing Insert TypeBall
Shaft Locking TypeSet Screws
Bearing Housing Material TypePBT
Bearing Insert Material52100 Chrome Steel
Bolt Hole Center-to-Center70 mm
SeriesCorrosion Resistant with USDA-H1 Grease
Static Load Capacity1,420 lb
Locking TypeSet Screw

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG173703213211 @ $167.99
simsupply.comZO-G173703211011 @ $198.90
motionindustries.com06179100111 @ $221.87
