Jomar Electric Actuator, Double Acting, Manual Override AE-700M. ✅$20 OFF Orders over $599 ✅. Save Now! ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

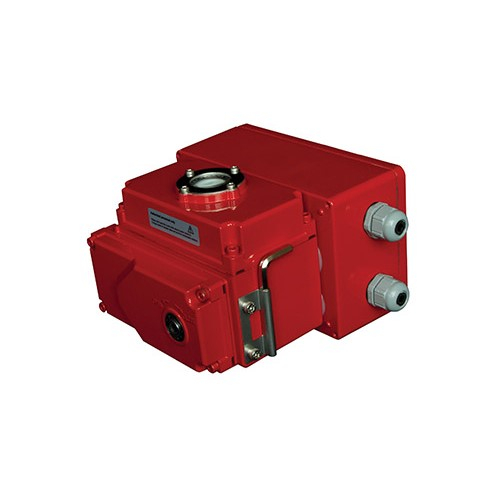

Jomar . AE-700M

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerJomar
moq, multiple, tierMinQty11
MPN, SKUAE-700M
qtyInStock0
snippetJomar Electric Actuator, Double Acting, Manual Override AE-700M. ✅$20 OFF Orders over $599 ✅. Save Now! ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
tierPrice11155.00
Torque (in-lbs)700
Output Square0.67
ISO 5211 MountingF05 / F07
IEC Duty Cycle (S2)Max 30 min
IEC Duty Cycle (S4)50%, 1,200 start/hr
Operating Time, 90° at 120V (secs)14
Rated current at 120V (Amp )0.97A
Motor Insulation ClassE
Limit Switches, Auxiliary Limit Switches2 - 1 ea for Open & Close (3A, 250VAC)
Cable Entry2 - 3/4" NPT
Internal HtrYes - 3W
Temperature Range-4° F to 158° F
Output Signal4-20mA
Potentiometer (Feedback)1 Kohm
Load Resistance100 Ohm - 750 Ohm
Input Resistance250 Ohms
Delay Time Adjustment1.0 - 8.5 sec
Dead Band Adjustment0.1 - 4.5%
ResolutionMin 1/1,000

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MegadepotAE-700M111 @ $1155.00
heavydutydepot.comAE-700M1-211 @ $1155.00
kscdirect.comJOM AE-700M111 @ $1353.37
usmegastore.comAE-700M1-211 @ $1236.00
blackhawksupply.comAE-700M1-211 @ $1285.21
industrialzone.comAE-700M1-211 @ $1331.00
