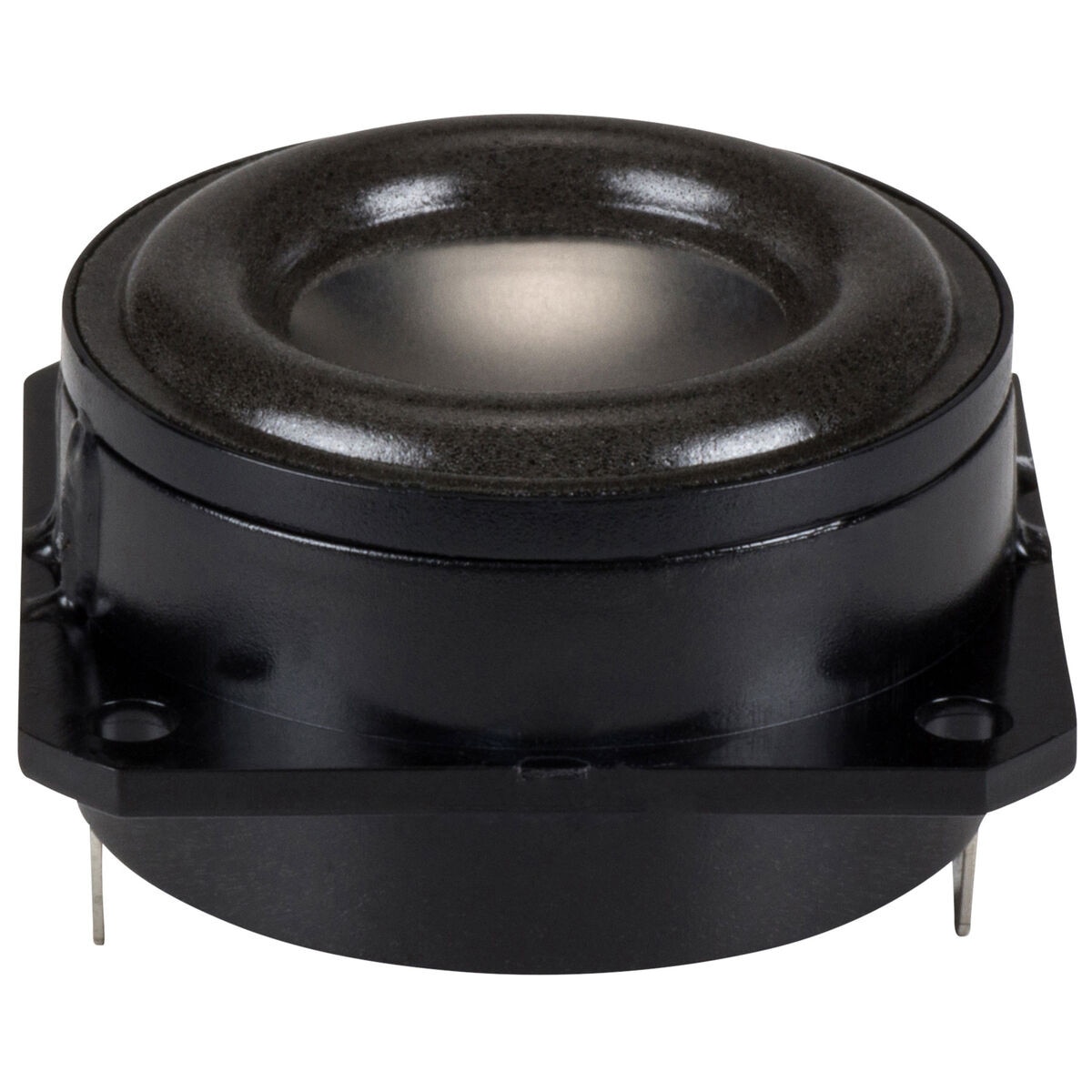

Aurasound Cougar NSW1-205-8A 1" Extended Range Driver 8 Ohm

AuraSound . NSW1-205-8A

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandAuraSound
DimensionUnitinch
Extra Product NameAurasound Cougar NSW1-205-8A 1" Extended Range Driver 8 Ohm
UPC848864016214
Weight0.14
WeightUnitlbs
depth, length0.49
diameter, height, width2.17
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple, tierMinQty11
MPN, ModelNSW1-205-8A
qtyInStock-2
qtySourceFieldMap
SKU, Part Number296-250
snippetAurasound Cougar NSW1-205-8A 1" Extended Range Driver 8 Ohm. Part Number: 296-250 by AuraSound.
tierMinQty2, # Mounting Holes4
tierMinQty310
tierPrice117.90
tierPrice216.99
tierPrice316.11
Unit of MeasureEach
Nominal Diameter1"
Bolt Circle Diameter1.69
Power Handling (RMS)5 Watts
Power Handling (MAX)20 Watts
Impedance8?
Frequency Response220 to 20,000Hz
Sensitivity78dB 2.83V/1m
Voice Coil Diameter0.79"
Resonant Frequency (Fs)220Hz
DC Resistance (Re)6.3?
Voice Coil Inductance (Le)0.28mH
Mechanical Q (Qms)2.1
Electromagnetic Q (Qes)1.1
Total Q (Qts)0.7
Compliance Equivalent Volume (Vas)0.01ft?
Diaphragm Mass Inc Airload (Mms)0.07g
Maximum Linear Excursion (Xmax)4.5mm
Surface Area of Cone (Sd)5.31cm?
Cone MaterialTitanium
Surround MaterialFoam
Voice Coil Wire MaterialCCA
Voice Coil FormerAluminum
Basket / Frame MaterialPolymer
Magnet MaterialNeodymium
Overall Outside Diameter2.17", across flats 1.54"
Baffle Cutout DiameterRear mount 1.42"
Depth0.49"
Sealed Volume0.0197ft?
Sealed F3261.1Hz
Vented Volume0.0316ft?
Vented F3127.4Hz

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com296-2501-211 @ $17.90, 4 @ $16.99, 10 @ $16.11
