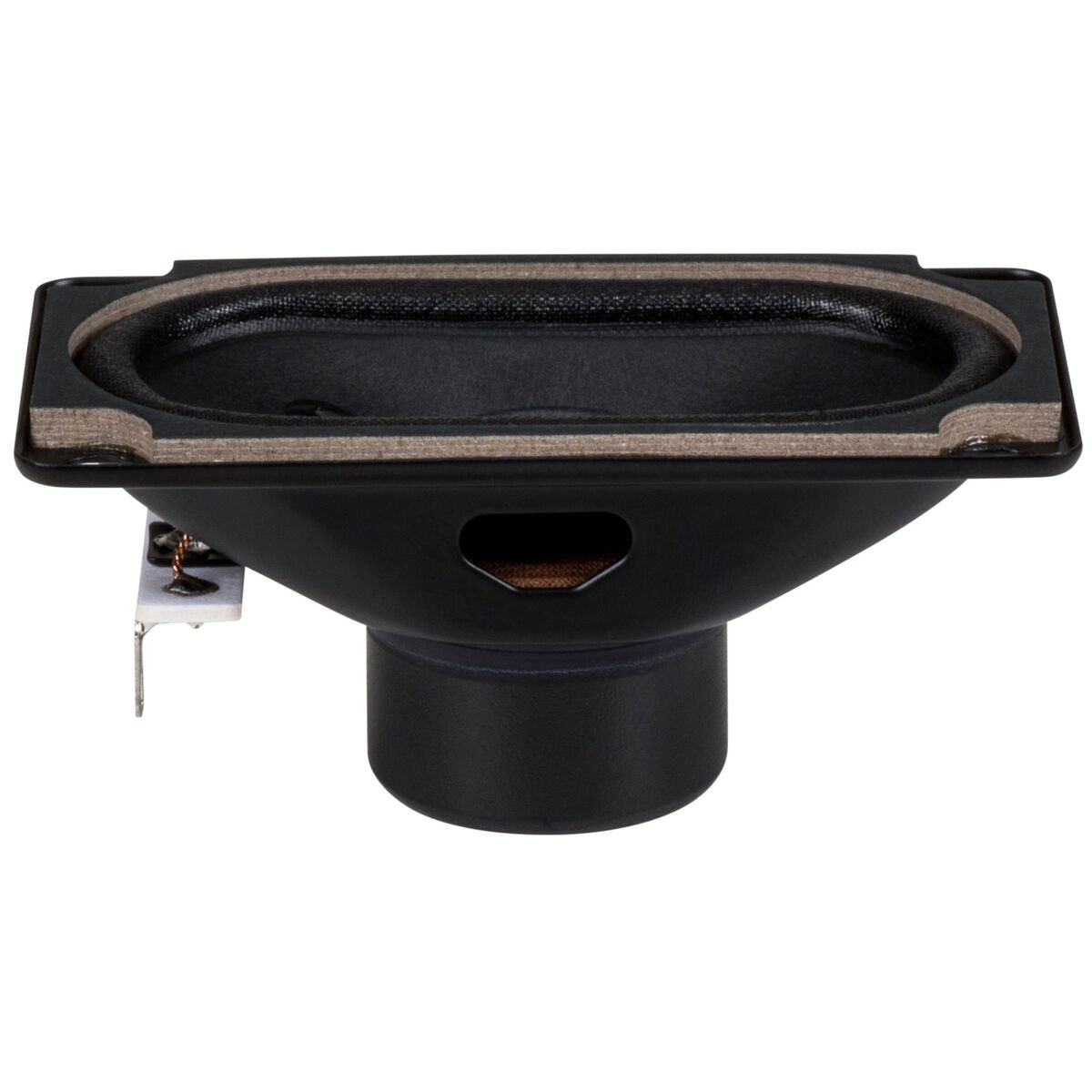

Aurasound NS2x3-184-4A 2" x 3" Extended Range Driver 4 Ohm

AuraSound . NS2X3-184-4A

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandAuraSound
DimensionUnitinch
Extra Product NameAurasound NS2x3-184-4A 2" x 3" Extended Range Driver 4 Ohm
UPC848864016245
Weight0.34
WeightUnitlbs
depth, length1.55
diameter, height, width2.0
height_Attrib, width_AttribNominal Diameter
length_AttribDepth
moq, multiple, tierMinQty11
MPNNS2X3-184-4A
qtyInStock38
SKU, Part Number296-256
snippetAurasound NS2x3-184-4A 2" x 3" Extended Range Driver 4 Ohm. Part Number: 296-256 by AuraSound.
tierMinQty2, # Mounting Holes4
tierMinQty310
tierPrice111.98
tierPrice210.98
tierPrice39.98
ModelNS2x3-184-4A
Unit of MeasureEach
Nominal Diameter2 x 3"
Power Handling (RMS)7 Watts
Power Handling (MAX)15 Watts
Impedance4?
Frequency Response200 to 20,000Hz
Sensitivity84dB 2.83V/1m
Voice Coil Diameter0.72"
Resonant Frequency (Fs)220Hz
DC Resistance (Re)3.5?
Mechanical Q (Qms)4.9
Electromagnetic Q (Qes)1.9
Total Q (Qts)1.38
Compliance Equivalent Volume (Vas)0.01ft?
Mechanical Compliance of Suspension (Cms)0.41mm/N
BL Product (BL)1.8T?m
Diaphragm Mass Inc Airload (Mms)1.26g
Maximum Linear Excursion (Xmax)0.43mm
Surface Area of Cone (Sd)25.72cm?
Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerKapton? / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialNeodymium
Overall Outside Diameter1.97" x 3.54"
Baffle Cutout Diameter1.73" x 3.31"
Depth1.55"
Sealed Volume0.00744ft?
Sealed F3230.6Hz
Vented Volume0.11ft?
Vented F3142.5Hz

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com296-25613811 @ $11.98, 4 @ $10.98, 10 @ $9.98
