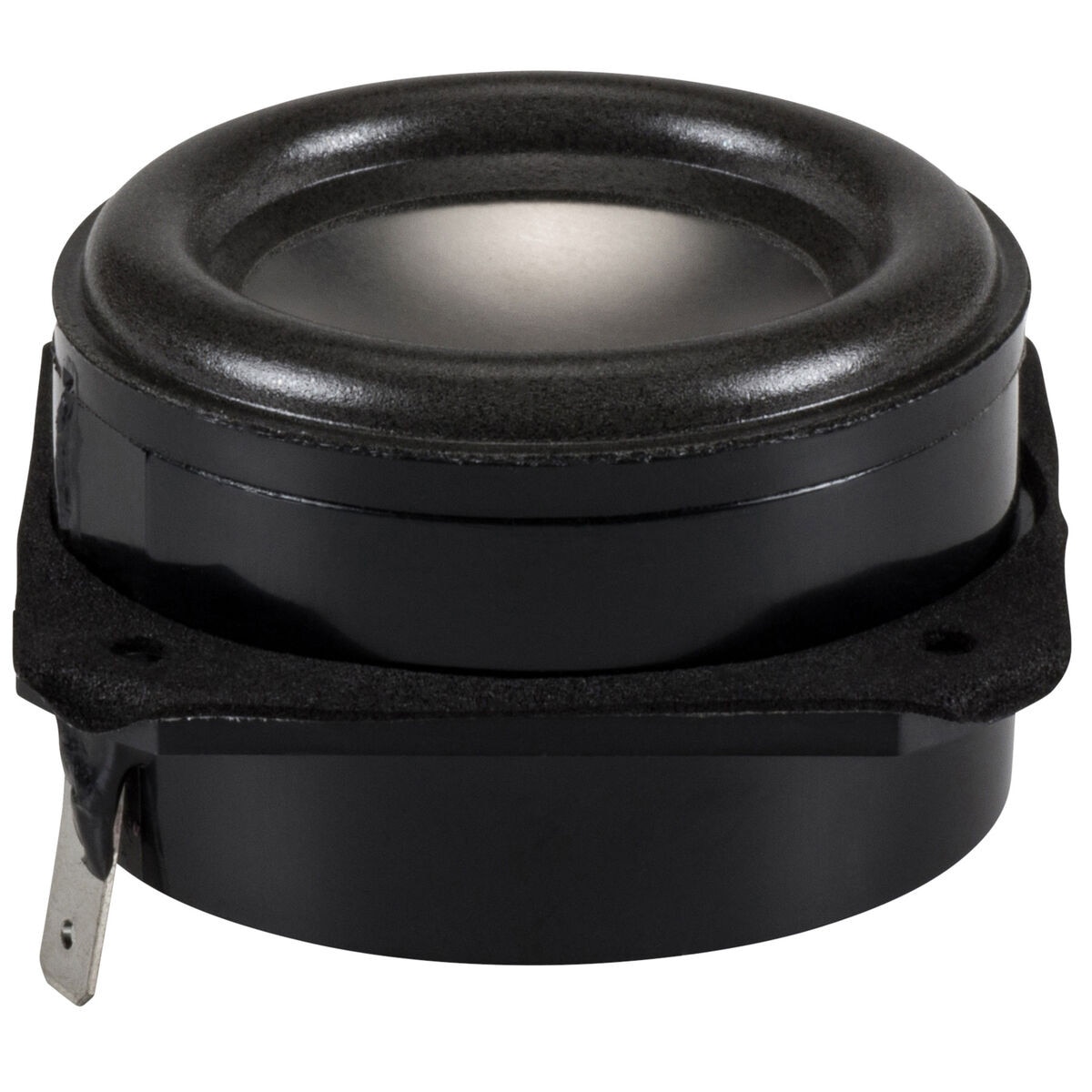

Aurasound NSW2-326-8AT Whisper 2" Extended Range Speaker Driver 8 Ohm

AuraSound . NS2-326-8AT

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandAuraSound
DimensionUnitinch
Extra Product NameAurasound NSW2-326-8AT Whisper 2" Extended Range Speaker Driver 8 Ohm
UPC848864016221
Weight0.28
WeightUnitlbs
depth, length1.16
diameter, height, width2.36
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple, tierMinQty11
MPN, ModelNS2-326-8AT
qtyInStock-2
qtySourceFieldMap
SKU, Part Number296-252
snippetAurasound NSW2-326-8AT Whisper 2" Extended Range Speaker Driver 8 Ohm. Part Number: 296-252 by AuraSound.
tierMinQty2, # Mounting Holes4
tierMinQty310
tierPrice124.98
tierPrice223.75
tierPrice322.49
Unit of MeasureEach
Nominal Diameter2"
Bolt Circle Diameter2.13
Power Handling (RMS)15 Watts
Power Handling (MAX)60 Watts
Impedance8?
Frequency Response250 to 15,000Hz
Sensitivity84dB 2.83V/1m
Voice Coil Diameter1.28"
Resonant Frequency (Fs)250Hz
DC Resistance (Re)6.4?
Mechanical Q (Qms)4.72
Electromagnetic Q (Qes)0.8
Total Q (Qts)0.68
Compliance Equivalent Volume (Vas)0.01ft?
Diaphragm Mass Inc Airload (Mms)0.35g
Maximum Linear Excursion (Xmax)3mm
Surface Area of Cone (Sd)13.2cm?
Cone MaterialTitanium
Surround MaterialFoam
Voice Coil FormerAluminum
Basket / Frame MaterialPolymer
Magnet MaterialNeodymium
Overall Outside Diameter2.36" diagonally, 1.93"
Baffle Cutout Diameter1.85"
Depth1.16"
Sealed Volume0.0166ft?
Sealed F3311.7Hz
Vented Volume0.0285ft?
Vented F3151.8Hz

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com296-2521-211 @ $24.98, 4 @ $23.75, 10 @ $22.49
