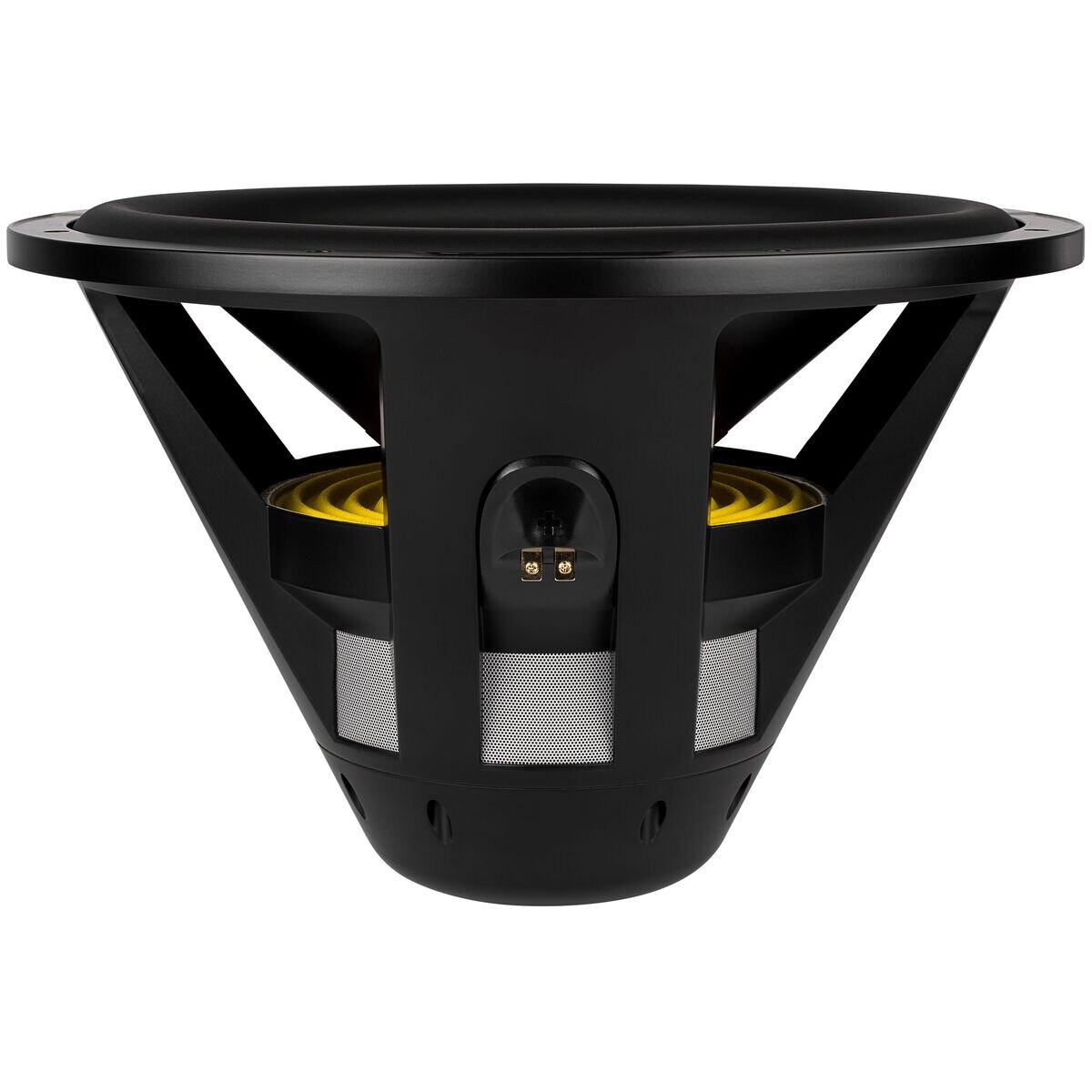

Aurasound NS18-992-4A 18" Pro Subwoofer Driver 4 Ohm

AuraSound . NS18-992-4A

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandAuraSound
DimensionUnitinch
Extra Product NameAurasound NS18-992-4A 18" Pro Subwoofer Driver 4 Ohm
UPC848864022659
Weight51
WeightUnitlbs
depth, length12.25
diameter, height, width18.75
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelNS18-992-4A
qtyInStock0
SKU, Part Number296-260
snippetAurasound NS18-992-4A 18" Pro Subwoofer Driver 4 Ohm. Part Number: 296-260 by AuraSound.
Unit of MeasureEach
Nominal Diameter18"
Bolt Circle Diameter17.5
Power Handling (RMS)800 Watts
Power Handling (MAX)1600 Watts
Impedance4?
Frequency Response20 to 1,500 HzHz
Sensitivity89dB 2.83V/1m
Voice Coil Diameter3.9"
Resonant Frequency (Fs)20Hz
DC Resistance (Re)3.1?
Mechanical Q (Qms)7.7
Electromagnetic Q (Qes)0.5
Total Q (Qts)0.47
Compliance Equivalent Volume (Vas)11.37ft?
Mechanical Compliance of Suspension (Cms)0.17mm/N
BL Product (BL)17.65T?m
Maximum Linear Excursion (Xmax)25mm
Surface Area of Cone (Sd)1164cm?
Cone Material, Voice Coil Wire MaterialAluminum
Surround MaterialRubber
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium
Overall Outside Diameter18.75"
Baffle Cutout Diameter16.8"
Depth12.25"
# Mounting Holes8
Sealed Volume4.3ft?
Sealed F335Hz
Vented Volume8ft?
Vented F323Hz
