Maxim WSB Swivel Ball Welded Cylinder - Double Acting Hydraulic Cylinder 2” Bore x 20” Stroke, 1” Pin & 1.25” Rod Diameter, 27.5” Retracted, 3000 PSI, 9420 lb Column Load, SAE 8 Port Size, 24 lb
Brand: Maxim
The Maxim WSB Swivel Ball Welded Cylinder is designed for heavy-duty double-acting applications in compact and mobile equipment. The double-acting extended cylinder can deliver top-notch, consistent performance in complex hydraulic applications that require up to 3000 PSI, thanks to its welded design. It is compact, lightweight, yet heavy-duty with Buna-N piston seals. Therefore, this swivel ball welded cylinder is a great fit for high pressure and heavy load applications. Our hydraulic cylinder comes fitted with swivel ball mounts that offer a high degree of flexibility in heavy load mounting operations. The swivel hitch is also easy to install and use, adding to the cylinder’s operational efficiency. The barrel is welded onto end caps with swivel balls welded into the piston. The Maxim WSB hydraulic cylinder is strong, sturdy, and capable. At 24 lb, it is quite lightweight and therefore portable. The bore sizes can be customized from 1-inch to 3 inches bore sizes and stroke lengths from 4 inches to 36 inches. This hydraulic cylinder is designed to withstand high pressure and temperature. It is also corrosion-resistant and comes in a painted, black body. If you’re searching for a high-efficiency double-acting hydraulic cylinder for heavy-duty applications and load lifting capacity, the Maxim WSB Swivel Ball Welded Cylinder is your best choice.
Details

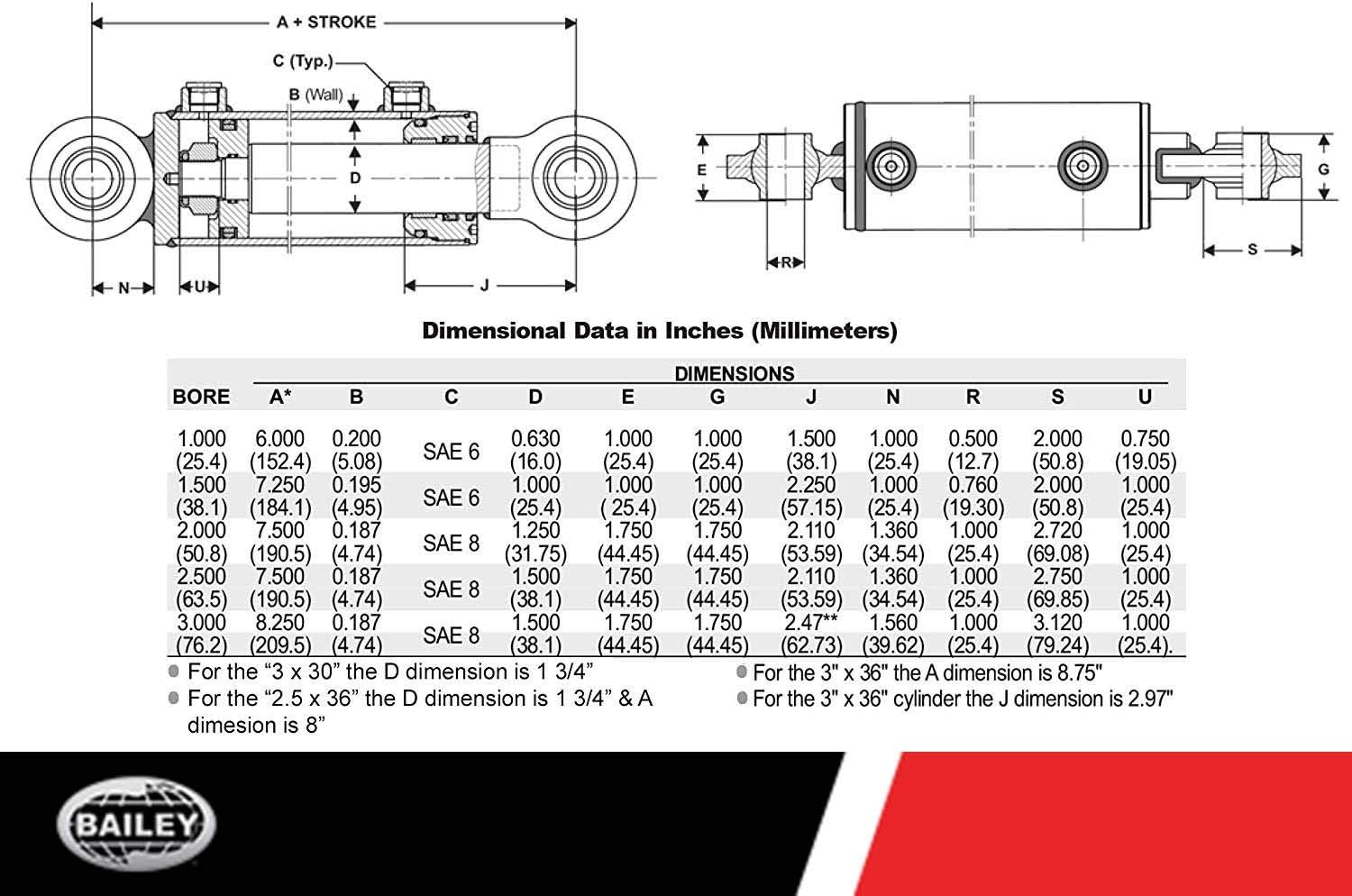

- SPECIFICATIONS: This universal hydraulic cylinder is double-acting with a 2” bore, 20” stroke length, 1” pin and 1.25” rod diameter. 27.5” Retracted, 47.5” Extended. It offers a maximum working pressure of 3000 PSI, has 9420 lb column load capacity, and SAE 8 port size.
- PRECISE PERFORMANCE: Our hydraulic cylinder delivers error-free performance in compact and mobile equipment. The heavy-duty piston seals rule out leaks for consistent performance in heavy load applications.
- HIGHLY RELIABLE: This heavy-duty double-acting hydraulic cylinder with swivel ball mounts is superior in design compared to other hydraulic cylinders. It provides reliable performance in complex applications requiring up to 3000 PSI.
- BUILT TO LAST: Our welded cylinder withstands high-temperature differences and is corrosion resistant. It has a compact and lightweight design and its welded barrels provide strength and stability to its form and functioning.
- CUSTOMIZABLE: Our swivel ball hydraulic cylinder can be customized per OEM requirements. It offers 1-inch to 3 inches bore sizes and stroke lengths that can go up from 4 inches to 36 inches for greater convenience and faster action.
