| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Grainger | 6FWX5 | 1 | 1 | ||
 Zoro | G0372416 | 1 | 20 | 1 | 1 @ $299.99 |
 Walmart | 40724198 | 1 | 1 | 1 @ $242.57 | |
| AE8WBK | 1 | 1 | 1 @ $467.22 | ||
 Amazon | B007ICTVDU | 1 | 1 | 1 @ $366.79 | |
| B0761L5276 | 1 | 1 | |||
| sustainablesupply.com | C1378356 | 1 | -2 | 1 | 1 @ $375.81 |
 simsupply.com | ZO-G0372416 | 1 | 9 | 1 | 1 @ $355.10 |
| WWG6FWX5 | 1 | 1 | 1 @ $325.63 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

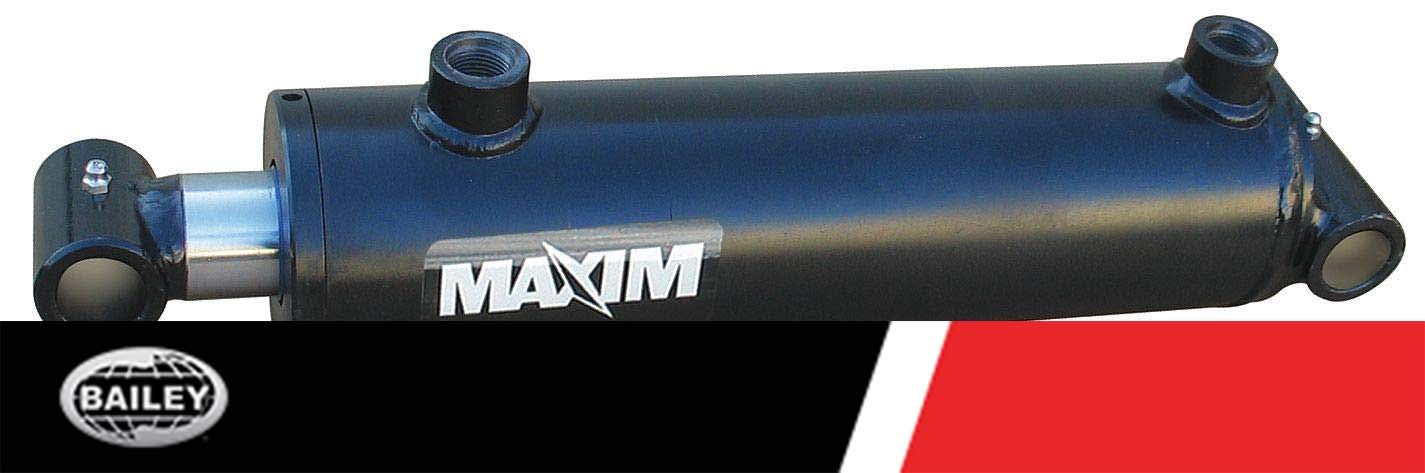

Maxim Welded Hydraulic Cylinder, Double Acting, Bore Dia. 3", Stroke Length 16", Rod Dia. 1-1/2" - 1 Each
Brand: Maxim
Listing
| Binding | Misc. |
|---|---|
| Product group | Home Improvement |
| Product type | TOOLS |
| Model | 288-339 |
| Part number | 288-339 |
| Label | MAXIM |
| Manufacturer | MAXIM |
Maxim WT Welded Cylinder: 3 Bore x 16 Stroke - 1.5 Rod Diameter, 3000 PSI with SAE #8 Port Size, Retracted: 24 and Extended: 40, 1" Pin Dia, 288339
Brand: Maxim
<p> This Maximª WT 3000 PSI welded cylinder is crosstube mounted, and exceeds the highest standards. These Cylinders are designed for demanding applications and are built to ensure Maximum reliabilityand performance. Painted black. </p> <p> Intended Use: Double-acting applications ¥ Piston: Ductile iron ASTM A536 65-45-12 for excellent life ¥ Piston Lock Nut : Grade 8, high tensile zinc-plated ¥ Gland: Ductile iron ASTM A536 65-45-12 ¥ Tube: Precision honed steel ¥ Tube seal: Nitrile O-ring with Polytemp hytrel back-up ¥ Rod: High tensile ground & polished hard chrome plated rod ¥ Rod seal: Std PolyPak with B lip design (Polyurethane U-cup with Nitrile O-ring expander) ¥ Wiper: Polyurethane ¥ End Mounts: Cross-tubes ¥ Piston ID Seal: O-ring ¥ Piston OD seal: Hallite 755 piston seal with wear ring ¥ OD seal: Hallite 755 piston seal with wear ring </p> <p>3 Bore, 16 Stroke, 1.5 Rod Dia., 24 Retracted, 40 Extended, 21200 Column Load, SAE 8 Port Size, 1 Pin Dia.</p>
Details
- 3 Bore, 16 Stroke, 1.5 Rod Dia., 24 Retract, 40 Extend, 21200 Load, SAE 8 Ports, 1 Pin
- 3 Bore x 16 Stroke
- 1.5 Rod Dia.
- Bailey Part Number: 288339
Listing
| Product group | BISS |
|---|---|
| Product type | ELECTRONIC_COMPONENT |
| Part number | 288-339 |
| Items per pack | 1 |
| Label | MAXIM |
| Manufacturer | MAXIM |
Catalog
| Feature | <b>Price For:</b> Each <b>Finish</b>: Black <b>Tie Rods</b>: High Tensile <b>Tubes</b>: Precision Honed Steel <b>Bore Dia. (In.)</b>: 3 <b>Piston Rod</b>: High Tensile Strength <b>Item</b>: Hydraulic Cylinder <b>Rod Seal</b>: Polypak <b>Piston Material</b>: Ductile Iron <b>Temp. Range</b>: -20 to 220 <b>Dimension E (In.)</b>: 0.750 <b>Inlet SAE (In.)</b>: 8 <b>Dimension D (In.)</b>: 2.126 <b>Pin Dia.</b>: 1" <b>Dimension C (In.)</b>: 2.251 <b>Retract (In.)</b>: 24 |
|---|---|
| Category | Industrial & Scientific |
| MPN | 288-339 |
| Product group | BISS |
| Product type | ELECTRONIC_COMPONENT |
| Manufacturer | MAXIM |
