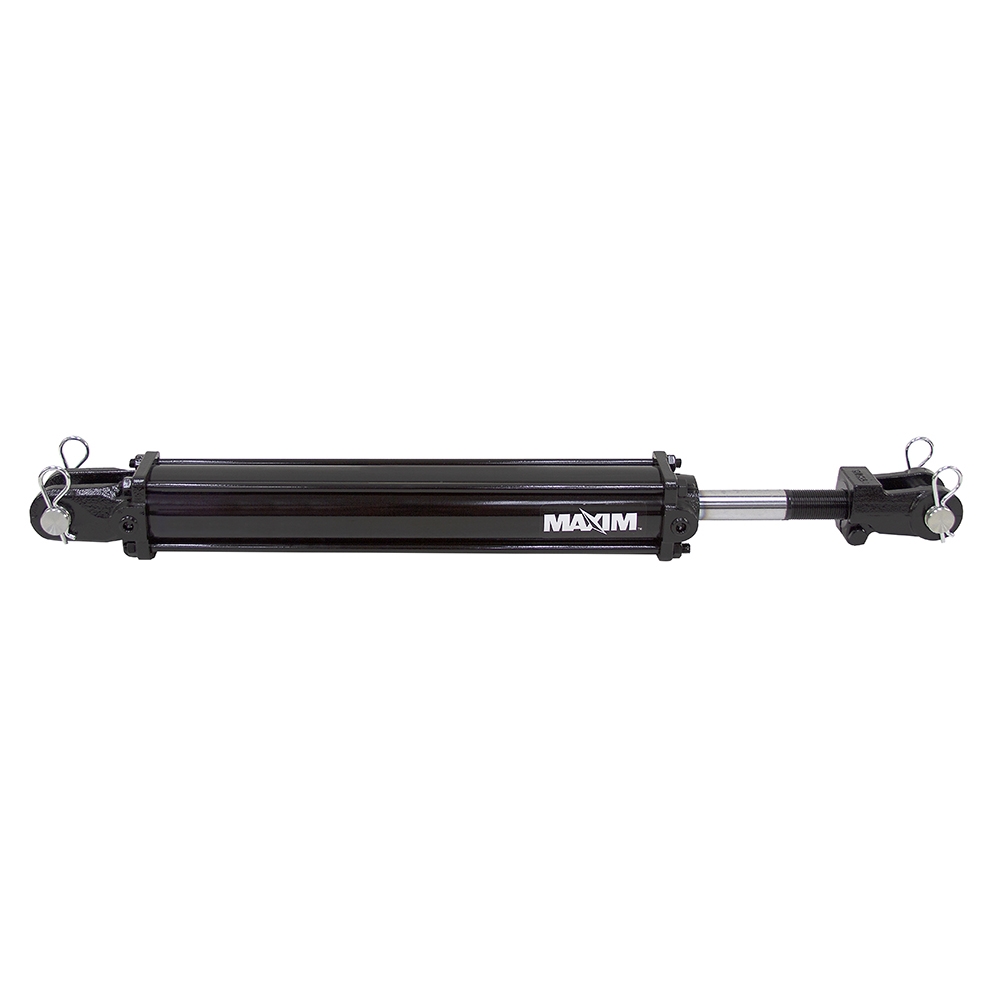

Maxim TC Double Acting Hydraulic Tie Rod Cylinder - 2.5 Bore Hydraulic Cylinder - Tie-Rod Cylinder for Double Acting Applications - 2.5” Bore, 20” Stroke, 2500 PSI, 30.25'' Retracted - 3/8 NPT Ports
Brand: Maxim
The Maxim TC Tie-Rod Cylinder for double-acting applications is robust, resilient, and designed for ease of use in rugged applications. It has an ASTM A536 65-45-12 ductile iron piston with a precision-honed, chrome-plated rod that helps easily transfer linear motion without energy losses. The tie-rod cylinder is accurate, consistent, and gives a reliable performance for as long as it is in use. Courtesy of its cutting edge Buna N O-ring seals, this double-acting hydraulic cylinder is leak-resistant and protects downstream components from wear and tear. The hydraulic cylinder has a 20-inch stroke length and can withstand up to 2500 PSI of working pressure. With a column load capacity of 7100 lbs, this tie-rod cylinder is suitable for high-load operations, unlike most other tie rod cylinder variations in the market. It is also versatile and can be customized for different stroke lengths to ensure compatibility in a wide range of heavy-duty hydraulic applications. Our 2.5 bore hydraulic cylinders are made using top-grade ductile iron and premium quality chrome steel alloy. They offer accurate performance, are built to last, and do not require much maintenance. They can also be easily assembled or dismantled per requirement. Our hydraulic cylinder 20 stroke is lightweight, portable, and cost-effective. It measures 30.25” when retracted, 50.25” when fully extended and is equipped with 3/8 NPT Ports. Each hydraulic cylinder is manufactured under strict adherence to industry-approved NFPA standards. If you’re in the market for durable and dependable double-acting tie rod cylinders, the Maxim TC 2500 PSI Tie Rod Cylinder makes an excellent choice.
Details
- SPECIFICATIONS: Maxim’s hydraulic cylinder has a 2.5” bore with 1” pin, 1.125” rod with a maximum stroke length of 20,” 3/8 " NPT Ports with 2500 PSI and column load of 7100 lbs. It measures 30.25” when retracted and 50.25” when fully extended.
- HEAVY-DUTY: With a maximum working pressure of 2500 PSI and column load capacity of 7100 lbs, this tie-rod cylinder for double acting applications is made for rugged agricultural applications that require reliable and consistent performance.
- EASY TO USE: Our double acting hydraulic cylinder has a simple but compact design that can be easily installed and disassembled. These tie-rod hydraulic cylinders are manufactured per strict NFPA standards and are interchangeable.
- VERSATILE: This double action hydraulic cylinder is adaptable - it comes in customizable bore sizes from 2” to 4” and stroke lengths from 4” to 48”. Although made for rugged agricultural use, the tie-rod cylinder can be used in exacting applications.
- LONG LASTING: Made from top-grade ductile iron with hard-polished chrome plating, this 20 stroke hydraulic cylinder is equipped with Buna N O-ring and zinc seals. It is durable and not susceptible to damage from wear and tear.
