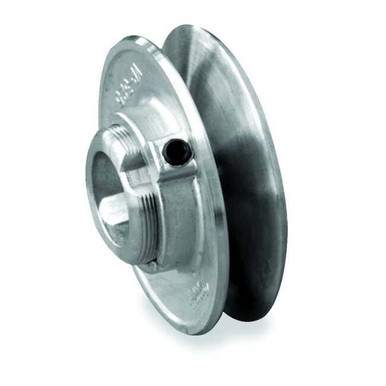

5/8" Fixed Bore 1 Groove Variable Pitch V-Belt Pulley 4.00" OD

Congress . VP400X062KW

Gallery

Attributes

Brand name, Manufacturer name, BrandCongress
ManufacturerCongress CONGRESS Congress Drives
CategoryId, CategoryIdL36018
CategoryIdL131
CategoryIdL217053
CategoryL1Power Transmission
CategoryL2Bearings, V-belts & Power Transmission Equipment
CategoryL3Pulleys & Sheaves
CategoryL4V-Belt Pulleys
DimensionUnitinch
GraingerSku54XM95
Extra Product Name5/8" Fixed Bore 1 Groove Variable Pitch V-Belt Pulley 4.00" OD
UPC, Bushing RequiredNone
UnitOfMeasureEA
Weight1.93 0.12 4.13 4.14
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabel, AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
countryOfOriginUS
height2.3
jsonUrlData924526ffbdad25e5923b
length, width4.4
moq, multiple, tierMinQty1, Number of Grooves, Case, Item_package_quantity, NumberOfItems, Number_of_items, PackageQuantity1
MPN, Part Number, Industry NumberVP400X062KW
qtyInStock73
qtyInStockOverride-2
SKUG4447206
tierPrice144.15
urlhttps://www.zoro.com/congress-58-fixed-bore-1-groove-variable-pitch-v-belt-pulley-400-od-vp400x062kw/i/G4447206/
Product GroupBISS
Fits Shaft Dia, Pulley Bore Dia, Bore Diameter5/8 in
Pulley Outside Dia4.0 in
Keyway Size, ClothingSize, Size0.187" x 0.093"
Keyway Size Type0.187 in x 0.093 in
4L or A Belt Pitch Dia2.90 in to 3.90 in
5L or B Belt Pitch Dia3.2 in to 4.0 in
4L Pitch Diameter (Maximum), A Pitch Diameter (Maximum), AX Pitch Diameter (Maximum)3.9 in
Maximum Pitch Diameter3.40 in (3L), 3.90 in (4L), 4.00 in (5L)
Length through Bore1 25/32 in
AX Pitch Diameter (Minimum), 4L Pitch Diameter (Minimum), A Pitch Diameter (Minimum)2.9 in
5L Pitch Diameter (Maximum), B Pitch Diameter (Maximum), BX Pitch Diameter (Maximum), Outside Diameter4 in
3L Pitch Diameter (Minimum)2.6 in
Minimum Face Width0.469 in
3L Belt Pitch Diameter2.6 in to 3.4 in
Maximum Face Width0.875 in
5L, B, or BX Belt Pitch Diameter3.2 in to 4 in
Keyway Width3/16 in
For Belt Trade Size3L, 4L, 5L, A, B
3L Pitch Diameter (Maximum)3.4 in
Keyway Depth3/32 in
4L, A, or AX Belt Pitch Diameter2.9 in to 3.9 in
BX Pitch Diameter (Minimum), B Pitch Diameter (Minimum), 5L Pitch Diameter (Minimum)3.2 in
Minimum Pitch Diameter2.60 in (3L), 2.90 in (4L), 3.20 in (5L)
Set Screw Size5/16 in
For V-Belt Section4L, 5L, A, B
Pulley MaterialDie Cast Zamak 3
Pulley Bore TypeFixed Bore
ConstructionSolid
ASIN, AsinB007I9TZAC B07B5BG3WY B07CSHLQGZ
BindingMisc.
Bullet_pointFits Shaft Dia.: 5/8" Keyway Size: 0.187" x 0.093" Pulley Bore Dia.: 5/8" Pulley Outside Dia.: 4.00" 4LA or A Belt Pitch Dia.: 2.9" to 3.9" Country of Origin (subject to change): United States Price For: Each Set Screw Included: Yes Construction: Solid Number of Grooves: 1 Item: Variable Pitch V-Belt Pulley Pulley Bore Type: Fixed Bore Pulley Type: Variable Pitch V-Belt Pulley For V-Belt Section: 4L, 5L, A, B Bushing Required: None Pulley Material: Die Cast Zamak 3 5L, B, or BX Belt Pitch Dia.: 3.2" to 4" 4L, A, or AX Belt Pitch Dia.: 2.9" to 3.9"
CatTools & Home Improvement
CatId228013
CatTree228013 328182011 468240 551236 552876
CatalogNumberListZO G0871211
ClassificationId13400031 16411451 551236
Cpsia_cautionary_statementno_warning_applicable
DisplayNameHVAC Controls Power Tools V-Belt Pulleys & Sheaves
FeaturePrice For: Each Set Screw Included: Yes Construction: Solid Number of Grooves: 1 Item: Variable Pitch V-Belt Pulley Pulley Bore Type: Fixed Bore Pulley Type: Variable Pitch V-Belt Pulley For V-Belt Section: 4L, 5L, A, B Bushing Required: None Pulley Material: Die Cast Zamak 3 5L, B, or BX Belt Pitch Dia.: 3.2" to 4" 4L, A, or AX Belt Pitch Dia.: 2.9" to 3.9"
Generic_keyword4 inch [ Grainger ] 3LC28 [ ZoroT ] G0871211
Height18 400 500 75
Identifier0662551338263 662551338263 7436829126943
IdentifierTypeEAN UPC
ItemClassificationBASE_PRODUCT
ItemName, Item_nameCONGRESS V-Belt Pulley 5/8 VrPitch 4 OD Zamak3 Congress Drives #VP400X062KW V-Belt Pulley, 5/8"Vrpitch, 4"Od, Zamak3
Item_type_keywordhvac-controls power-belt-sanders v-belt-pulleys
Item_weight4.13
Keyword3LC28 G0871211 VP400X062KW
Label, Publisher, StudioCONGRESS Congress Drives
Length21
Linkhttps://m.media-amazon.com/images/I/41FlYKM8bKL._SL75_.jpg https://m.media-amazon.com/images/I/41FlYKM8bKL.jpg https://m.media-amazon.com/images/I/41Rbh+BW+WL._SL75_.jpg https://m.media-amazon.com/images/I/41Rbh+BW+WL.jpg
ManCONGRESS
Measurement_systemInch
Model, ModelNumber, Model_number, Mpns, PartNumber, Part_number, StrippedMpns3LC28 VP400X062KW
ProductCategoryId551236 home_improvement_display_on_website
ProductGroupBISS BISS Basic
ProductTypeELECTRONIC_COMPONENT INDUSTRIAL_WHEELS MECHANICAL_COMPONENTS
ProductTypeNameAUTO_ACCESSORY ELECTRONIC_COMPONENT INDUSTRIAL_WHEELS MECHANICAL_COMPONENTS
Product_description' Variable Pitch V-Belt Pulley, For V-Belt Section 4L, 5L, A, B, Number of Grooves 1, Pulley Outside Dia. 4.00 In., Pulley Bore Type Fixed Bore, Pulley Bore Dia. 5/8 In., Pulley Material Die Cast Zamak 3, None Bushing Required, Fits Shaft Dia. 5/8 In., 4L, A, or AX Belt Pitch Dia. 2.9 In. to 3.9 In., 4LA or A Belt Pitch Dia. 2.9 In. to 3.9 In., 5L, B, or BX Belt Pitch Dia. 3.2 In. to 4 In., Construction Solid, Keyway Size 0.187 In. x 0.093 In., Set Screw Included Yes ' Variable pitch v-belt pulley for v-belt section 4l 5l a b number of grooves 1 pulley outside dia 4.00 in. Pulley bore type fixed bore pulley bore dia 5/8 in. Pulley material die cast zamak 3 none bushing required fits shaft dia 5/8 in. 4l or a belt pitch dia 2.9 in to 3.9 in. 5l or b belt pitch dia 3.2 in to 4.0 in. Construction solid keyway size 0.187 in x 0.093 in. Set screw included yes
Product_site_launch_date2012-05-25T22:33:13.331Z 2018-03-01T19:03:26.594Z 2018-05-01T22:31:22.623Z
Rank3499665 66937
Supplier_declared_dg_hz_regulationunknown
TitleCONGRESS V-Belt Pulley 5/8 VrPitch 4 OD Zamak3 Congress Drives #VP400X062KW Congress V-Belt Pulley, 5/8"VrPitch, 4"OD, Zamak3 - VP400X062KW V-Belt Pulley, 5/8"VrPitch, 4"OD, Zamak3 V-Belt Pulley, 5/8"Vrpitch, 4"Od, Zamak3
Typeean upc
URLhttps://images-na.ssl-images-amazon.com/images/I/01RmK+J4pJL._SL75_.gif https://m.media-amazon.com/images/I/41FlYKM8bKL._SL75_.jpg https://m.media-amazon.com/images/I/41Rbh+BW+WL._SL75_.jpg
Unitpounds
Unitsinches pixels pounds
VariantMAIN
WebsiteDisplayGroupbiss_basic_display_on_website
WebsiteDisplayGroupNameBISS Basic
Width18 329 400 49 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG444720617311 @ $44.15
Grainger3LC28113011 @ $55.75
Raptor SuppliesAC9XEN111 @ $91.50
AmazonTPB007I9TZAC111 @ $54.66
simsupply.comCU-3534584D393513411 @ $57.99
ZoroG0871211111 @ $37.09
simsupply.comZO-G4447206119711 @ $60.83
Grainger54XM9511
