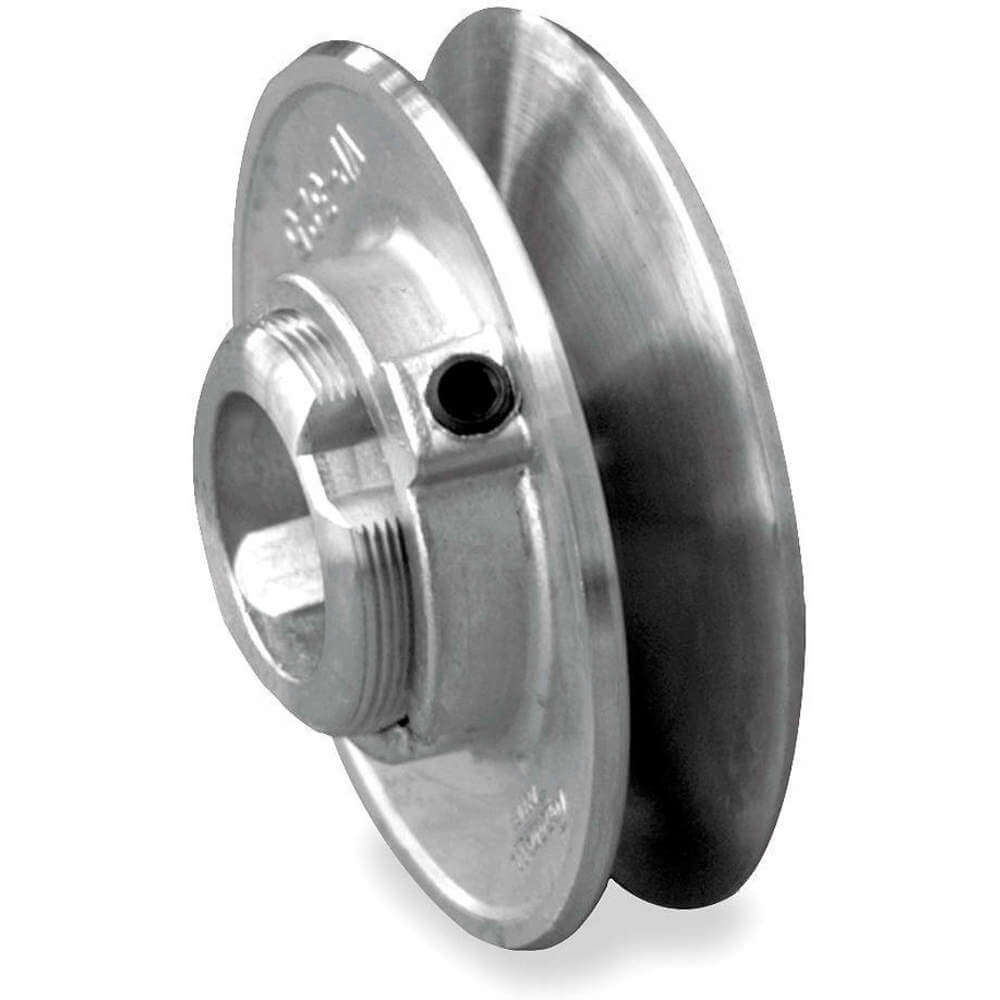

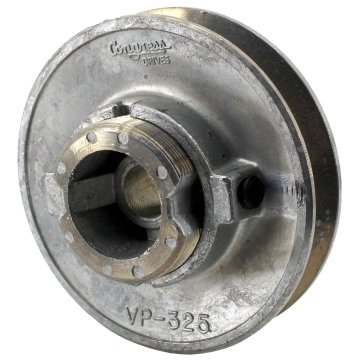

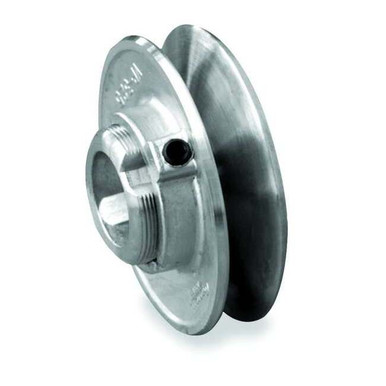

Variable Pitch V-Belt Pulley, Bore Diameter 1/2 in, For Belt Trade Size 3L, 4L, 5L, A, B, For V-Belt Type Classical, Material Zinc, Maximum Pitch Diameter 2.60 in (3L), 3.10 in (4L), 3.20 in (5L), Number of Grooves 1, Outside Diameter 3.25 in, Set Screw Location Not Applicable, 3L Pitch Diameter (Maximum) 2.6 in, 3L Pitch Diameter (Minimum) 1.8 in, 4L Pitch Diameter (Maximum) 3.1 in, 4L Pitch Diameter (Minimum) 2.1 in, 5L Pitch Diameter (Maximum) 3.2 in, 5L Pitch Diameter (Minimum) 2.4 in

Congress . VP325X050

Gallery

Attributes

Brand name, Manufacturer nameCongress
ManufacturerCongress CONGRESS CONGRESS DRIVES
CategoryId, CategoryIdL36018
CategoryIdL131
CategoryIdL217053
CategoryL1Power Transmission
CategoryL2Bearings, V-belts & Power Transmission Equipment
CategoryL3Pulleys & Sheaves
CategoryL4V-Belt Pulleys
DimensionUnitinch
GTIN, Bushing RequiredNone
GraingerSku54XM75
UPCNone 663001447504
UnitOfMeasureEA
Weight0.92 1.00 5.68
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabel, AdultProduct, Autographed, Batteries_required, Contains_liquid_contents, Memorabilia, TradeInEligibleFalse
countryOfOriginUS
height1.8
jsonUrlData924526ffbdad25e5923b
length3.5
moq, multiple, tierMinQty1, Number of Grooves, Case, Item_package_quantity, NumberOfItems, PackageQuantity1
MPNVP325X050 1X447
qtyInStock395
qtyInStockOverride-2
SKUG4446707
tierPrice125.19
urlhttps://www.zoro.com/congress-12-fixed-bore-1-groove-variable-pitch-v-belt-pulley-325-od-vp325x050/i/G4446707/
width3.4
EAN, EANList, UPCList663001447504
Part Number1X447
Product GroupHome Improvement
Pulley Outside Dia, Outside Diameter3.25 in
Fits Shaft Dia, Pulley Bore Dia, Bore Diameter1/2 in
Keyway Size, Keyway Size TypeNo Keyway
5L or B Belt Pitch Dia, 5L, B, or BX Belt Pitch Diameter2.4 in to 3.2 in
4L or A Belt Pitch Dia2.10 in to 3.10 in
Keyway Width, Keyway DepthNot Applicable
BX Pitch Diameter (Minimum), B Pitch Diameter (Minimum), 5L Pitch Diameter (Minimum)2.4 in
Length through Bore1 1/8 in
For Belt Trade Size3L, 4L, 5L, A, B
A Pitch Diameter (Maximum), 4L Pitch Diameter (Maximum), AX Pitch Diameter (Maximum)3.1 in
3L Pitch Diameter (Minimum)1.8 in
B Pitch Diameter (Maximum), BX Pitch Diameter (Maximum), 5L Pitch Diameter (Maximum)3.2 in
A Pitch Diameter (Minimum), AX Pitch Diameter (Minimum), 4L Pitch Diameter (Minimum)2.1 in
3L Pitch Diameter (Maximum)2.6 in
4L, A, or AX Belt Pitch Diameter2.1 in to 3.1 in
Minimum Face Width0.469 in
Minimum Pitch Diameter1.80 in (3L), 2.10 in (4L), 2.40 in (5L)
Maximum Pitch Diameter2.60 in (3L), 3.10 in (4L), 3.20 in (5L)
Maximum Face Width0.875 in
Set Screw Size5/16 in
3L Belt Pitch Diameter1.8 in to 2.6 in
For V-Belt Section4L, 5L, A, B
Pulley MaterialDie Cast Zamak 3
Pulley Bore TypeFixed Bore
ConstructionSolid
Industry Number, Keyword, Model, ModelNumber, Model_number, Mpns, Part_number, StrippedMpnsVP325X050
ASIN, AsinB007IA2YAE B00FUAW15W
BindingMisc.
BrandCONGRESS DRIVES Congress
Bullet_pointFits Shaft Dia.: 1/2" Pulley Bore Dia.: 1/2" Pulley Outside Dia.: 3.25" 4LA or A Belt Pitch Dia.: 2.1" to 3.1" Country of Origin (subject to change): United States Price For: Each Set Screw Included: Yes Construction: Solid Number of Grooves: 1 Item: Variable Pitch V-Belt Pulley Pulley Bore Type: Fixed Bore Pulley Type: Variable Pitch V-Belt Pulley For V-Belt Section: 4L, 5L, A, B Bushing Required: None Pulley Material: Die Cast Zamak 3 5L, B, or BX Belt Pitch Dia.: 2.4" to 3.2" 4L, A, or AX Belt Pitch Dia.: 2.1" to 3.1"
CatAutomotive Tools & Home Improvement
CatId15684181 228013
CatTree15684181 15690151 15719731 15721321 15721591 228013 468240 511402 551240 553516
CatalogNumberListZO G0406235
ClassificationId16411451 256346011
Cpsia_cautionary_statementno_warning_applicable
DisplayNameV-Belt Pulleys & Sheaves
FeatureFor Use With 4L, 5L, A, or B Type V-Belts Price For: Each Set Screw Included: Yes Construction: Solid Number of Grooves: 1 Item: Variable Pitch V-Belt Pulley Pulley Bore Type: Fixed Bore Pulley Type: Variable Pitch V-Belt Pulley For V-Belt Section: 4L, 5L, A, B Bushing Required: None Pulley Material: Die Cast Zamak 3 5L, B, or BX Belt Pitch Dia.: 2.4" to 3.2" 4L, A, or AX Belt Pitch Dia.: 2.1" to 3.1"
Height18 21.0 3.4 3.40 500 64 75
Identifier00094701497399 7434097162069
IdentifierTypeEAN GTIN
ItemClassificationBASE_PRODUCT
ItemName, Item_nameV-Belt Pulley, 1/2"Vrpitch, 3.25"Od, Zamak3
Item_package_weight, Item_weight5.68
Item_type_keywordv-belt-pulleys
Label, Man, Publisher, StudioCONGRESS CONGRESS DRIVES
Length18.0 21 3.3 3.30
Linkhttps://m.media-amazon.com/images/I/41Rbh+BW+WL._SL75_.jpg https://m.media-amazon.com/images/I/41Rbh+BW+WL.jpg https://www.amazon.com/gp/bestsellers/industrial https://www.amazon.com/gp/bestsellers/industrial/16411451 https://www.amazon.com/gp/bestsellers/industrial/256346011
PartNumber1X447 VP325X050
ProductCategoryId1258851011 16411451 256346011 biss_display_on_website
ProductGroupAutomotive Parts and Accessories BISS Basic Home Improvement
ProductTypeMECHANICAL_COMPONENTS
ProductTypeNameAUTO_PART HOME_LIGHTING_ACCESSORY MECHANICAL_COMPONENTS
Product_description' Variable Pitch V-Belt Pulley, For V-Belt Section 4L, 5L, A, B, Number of Grooves 1, Pulley Outside Dia. 3.25 In., Pulley Bore Type Fixed Bore, Pulley Bore Dia. 1/2 In., Pulley Material Die Cast Zamak 3, None Bushing Required, Fits Shaft Dia. 1/2 In., 4L, A, or AX Belt Pitch Dia. 2.1 In. to 3.1 In., 4LA or A Belt Pitch Dia. 2.1 In. to 3.1 In., 5L, B, or BX Belt Pitch Dia. 2.4 In. to 3.2 In., Construction Solid, Set Screw Included Yes '
Product_site_launch_date2016-03-04T14:31:01.730Z
Rank1290 34476 43058 43413 434759 44230 44382 44938 529891 545290 623 668 693 708669 729 730363 731640 737
Supplier_declared_dg_hz_regulationunknown
Title3.25" x 1/2" Single Groove Fixed Bore Variable Pitch Die Cast Pulley Industrial & Scientific Material Handling Products Mechanical V-Belt Pulleys V-Belt Pulley, 1/2"VrPitch, 3.25"OD, Zamak3 V-Belt Pulley, 1/2"Vrpitch, 3.25"Od, Zamak3
Typeean gtin
URLhttps://m.media-amazon.com/images/I/41-+1x-IhOL._SL75_.jpg https://m.media-amazon.com/images/I/41Rbh+BW+WL._SL75_.jpg
Unitinches pounds
Unitsinches pixels pounds
VariantMAIN
WebsiteDisplayGroupbiss_basic_display_on_website biss_display_on_website
WebsiteDisplayGroupNameBISS Basic
Width1.7 1.70 18 18.0 329 49 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG4446707139511 @ $25.19
Grainger1X447127411 @ $28.30
Raptor SuppliesAB4CVR111 @ $57.81
ZoroG040623511
HD Supply197257111 @ $42.49
simsupply.comZO-G4446707139711 @ $37.27
