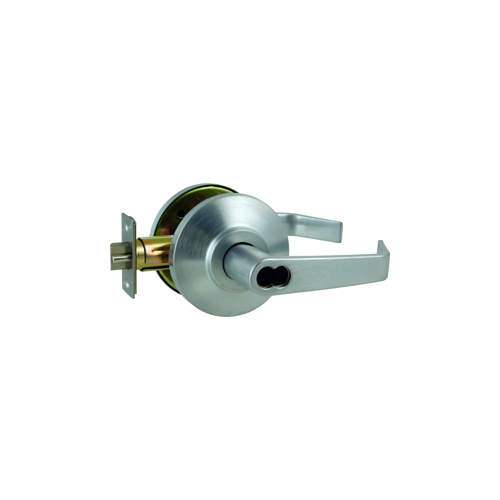

BEST 7KC37D15DS3626 7K Series 2-3/4" Backset 7 Pin Storeroom 15 Lever and D Rose ANSI Strike Less Core Satin Chrome Finish

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Manufacturer ParentDormaKaba
CategoryIdL3Mechanical Locksets
CategoryL1Windows and Door Hardware
CategoryL2Commercial and Residential Door Hardware
DimensionUnitinch
Extra Product NameBEST 7KC37D15DS3626 7K Series 2-3/4" Backset 7 Pin Storeroom 15 Lever and D Rose ANSI Strike Less Core Satin Chrome Finish
atoms, moq, multiple, tierMinQty1, Package Qty1
color, ColorSatin Chromium Plated
height8.75
height_AttribCase Height
length20.5
length_AttribCase Length
MPN, Alternate Part Number-1151440
qtyInStock-2
qtySourceFieldMap
tierPrice1333.9
width12.5
width_AttribCase Width
Handing, HandReversible
Finish, Finish Description, Finish FamilySatin Chrome
FunctionD-Storeroom
Backset2-3/4 Inch
StrikeANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
Design15D
Cylinder Type7-Pin Housing, Accepts All BEST Cores
Fire Rated3 Hours {A}
Package Height4"
Package Length8.25"
Package Volume218.625
Package Width6.625"
ADA ComplianceYes
ANSI Function, ANSI NumberF86
Bolt Protection1/2 In.
Case Height8.75"
Case Volume2242.1875
Case Width12.5"
Design A, Knob/Lever Design15
Design BD
Dust BoxPlastic
Latch Backset Dim2-3/4 In.
Latch TypeDeadlocking Latch
Lever/Knob Design15 - Lever
Lock Face Size2-1/4 In. x 1-1/8 In.
Rose/Escutcheon DesignD - Rose
ScrewsCombination
Special MarksSmall format interchangeable core, Fire rated 3 Hours {A}, Complies with ADA accessibility guidelines
Strike Height4-7/8 In.
Strike TypeANSI Curved Lip
Strike Width1-1/8 In.
Base MaterialBrass or Bronze
GradeANSI/BHMA Grade 2
Thickness1-3/8 In. - 2 In.
Color Code626/US26D
Case Length20.5"
ApplicationHeavy Duty Residential Application; Standard Traffic Application
Handle Type, Knob/Lever StyleLever
Door Thickness1-3/8" to 2"
Rose Diameter3-1/2 Inch
Latch Throw1/2 Inch
Warranty3 Year Mechanical; 3 Year Finish
Strike NumberS3
ADA CompliantYES
Lever Style15-Contour/Angle Return
Strike Size1-1/4" x 4-7/8"
Rose/Escutcheon TrimD-Rose
Door Cross Bore2.125 Inch
StandardsANSI/BHMA A156.2 Series-Grade 2; UL/cUL Listed; California State Fire Marshal (California Title 24)
Cylinder Type UsedSFIC Cores
Function DescriptionOutside knob/lever always locked/rigid. Latchbolt retracted by key in outside knob/lever or by rotating inside knob/lever. Inside knob/lever always free. Deadlocking latchbolt.
Front Size2-1/4" x 1-1/8" x 5/32"
Function FamilyStoreroom
Strike Lip1-1/4 Inch
Product Projection2-1/2 Inch
Trim MaterialPlated Zinc (Lever)
Product Type, Lock CategoryCylindrical Lock
Lever Length-Inches5.25 Inch
Knob/Lever Size5-1/4 Inch
Lever Style FamilyStraight Return Lever
Sub-SeriesCL_Cylindrical_Locks_Best_6
Cylinder IncludedNo
Finish code626
Latch Bolt TypeDeadlatch
Rose/Escutcheon Size3-1/2"
Latch Bolt Faceplate Size2-1/4" x 1-1/8"
Door Bore Size2-1/8"
Door Thickness Min1-3/8"
Latch Bolt Face TypeSquare Corner
Latch Bolt Throw1/2"
Rose/Escutcheon StyleRose
Door Thickness Max2"

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK Hardware7KC37D15DS36261-211 @ $333.90
