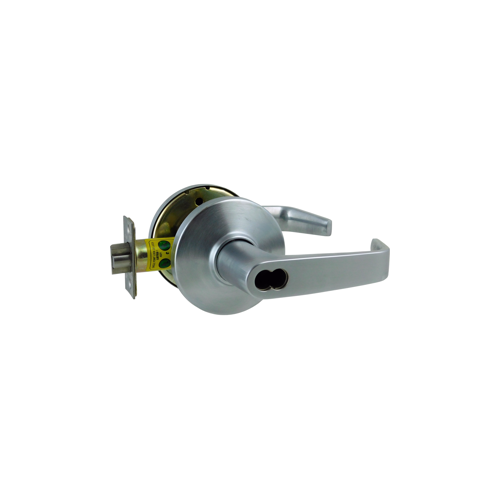

BEST 9K37D15DS3626 9K Series 2-3/4" Backset 7 Pin Storeroom 15 Lever and D Rose with ANSI Strike Less Core Satin Chrome Finish

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Manufacturer ParentDormaKaba
CategoryIdL3Mechanical Locksets
CategoryL1Windows and Door Hardware
CategoryL2Commercial and Residential Door Hardware
DimensionUnitinch
Extra Product NameBEST 9K37D15DS3626 9K Series 2-3/4" Backset 7 Pin Storeroom 15 Lever and D Rose with ANSI Strike Less Core Satin Chrome Finish
atoms, moq, multiple, tierMinQty1, Package Qty1
height8.75
height_AttribCase Height
length20.5
length_AttribCase Length
MPN, Alternate Part Number-1151452
qtyInStock-2
qtySourceFieldMap
tierPrice1663.9
width12.5
width_AttribCase Width
Finish, Finish Family, Finish DescriptionSatin Chrome
Backset, Product Projection2-3/4 Inch
HandingReversible
FunctionD-Storeroom
StrikeANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
Design15D
Cylinder Type7-Pin Housing, Accepts All BEST Cores
Fire Rated3 Hours {A}
OriginUSA
BAA QualifiedYes
Package Height4"
Package Length8.125"
Package Volume215.3125
Package Width6.625"
ANSI FunctionF86
Bolt Protection, Latch Bolt Throw9/16"
Case Height8.75"
Case Volume2242.1875
Case Width12.5"
Latch Backset Dim2-3/4"
Latch Number8KL3DL
Latch TypeDead Latch (Guarded)
Lever/Knob Design15 - Lever
Lock Face Size2-1/4" x 1-1/8"
Rose/Escutcheon DesignD - Rose
ScrewsCombination
Special MarksSmall format interchangeable core, Fire rated 3 Hours {A}, Complies with ADA accessibility guidelines
Strike Height4-7/8"
Strike NumberS3
Strike TypeANSI Curved Lip
Strike Width1-1/4"
Base MaterialBrass or Bronze
GradeANSI/BHMA Grade 1
Thickness1-3/4" - 2-1/4"
HandNot Handed
Color Code626/US26D
Case Length20.5"
ADA CompliantYES
Lever Style15-Contour/Angle Return
Strike Size1-1/4" x 4-7/8"
Rose/Escutcheon TrimD-Rose
Door Cross Bore2.125 Inch
Cylinder Type Used7-Pin SFIC Less Core
Function DescriptionOutside knob/lever always locked/rigid. Latchbolt retracted by key in outside knob/lever or by rotating inside knob/lever. Inside knob/lever always free. Deadlocking latchbolt.
Front Size1-1/8" x 2-1/4"
Function FamilyStoreroom
Strike Lip1-1/4 Inch
Trim MaterialPlated Zinc Alloy (Lever)
Product Type, Lock CategoryCylindrical Lock
ApplicationGovernment; Healthcare; Retail & Commercial; Learning & Higher Education
Warranty10 Year Mechanical; 3 Year Finish
Handle Type, Knob/Lever StyleLever
Door Thickness1-3/4" to 2-1/4"
Rose Diameter3-1/2 Inch
Latch Throw9/16 Inch
Lever Length-Inches5.25 Inch
Knob/Lever Size5-3/8 Inch
Latch Bolt MaterialSolid Brass
Lever Style FamilyStraight Return Lever
Sub-SeriesCL_Cylindrical_Locks_Best_18
Cylinder IncludedNo
Finish code626
Latch Bolt TypeDeadlatch
Knob/Lever Design15
Rose/Escutcheon Size3-1/2"
Latch Bolt Faceplate Size2-1/4" x 1-1/4
Door Bore Size2-1/8"
Door Thickness Min1-3/4"
Latch Bolt Face TypeSquare Corner
Rose/Escutcheon StyleRose
Door Thickness Max2-1/4"

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK Hardware9K37D15DS36261-211 @ $663.90
