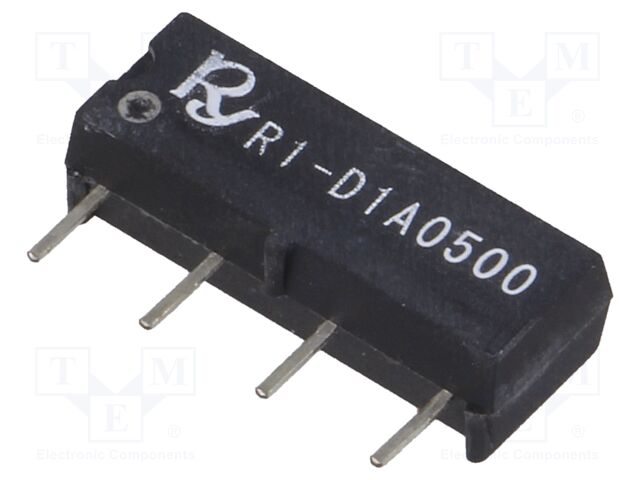

Recoy/RAYEX ELECTRONICS R1-D1A0500 | Relay: reed; SPST-NO; Ucoil: 5VDC; 1A; max.250VDC; 10VA; Rcoil: 500?

Recoy/RAYEX ELECTRONICS . R1-D1A0500

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRecoy/RAYEX ELECTRONICS
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Reed Electromagnetic Relays
Extra Product NameRecoy/RAYEX ELECTRONICS R1-D1A0500 | Relay: reed; SPST-NO; Ucoil: 5VDC; 1A; max.250VDC; 10VA; Rcoil: 500?
atoms, moq, multiple, tierMinQty11
jsonUrlData95a13c4ce5cd65d253d911d03d814962.
jsonUrlData2dd2183e3e029dfb6f191
keywordsRecoy/RAYEX ELECTRONICS, R1-D1A0500
MPN, SKUR1-D1A0500
qtyInStock930
snippetRecoy/RAYEX ELECTRONICS R1-D1A0500 | Relay: reed; SPST-NO; Ucoil: 5VDC; 1A; max.250VDC; 10VA; Rcoil: 500
tierMinQty25
tierMinQty324
tierMinQty4108
tierMinQty5504
tierPrice12.97
tierPrice22.66
tierPrice32.25
tierPrice41.99
tierPrice51.7
Type of relayreed
Contacts configurationSPST-NO
Rated coil voltage5V DC
Contact current max1A
Switched voltagemax. 250V DC
Switching capacity10VA
Coil resistance500?
Coil power consumption50mW
MountingPCB
CaseSIL
Contact resistance150m?
Coil voltage min3.75V DC
Coil voltage max16V DC
Operating temperature-40...85?C
Operate time1ms
Release time0.5ms
Contact materialAgCdO
Body dimensions19x5x7mm
Relay seriesR1
Terminal pitch5.08mm
Optional equipmentdiode

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMER1-D1A0500193011 @ $2.97, 5 @ $2.66, 24 @ $2.25, 108 @ $1.99, 504 @ $1.70
